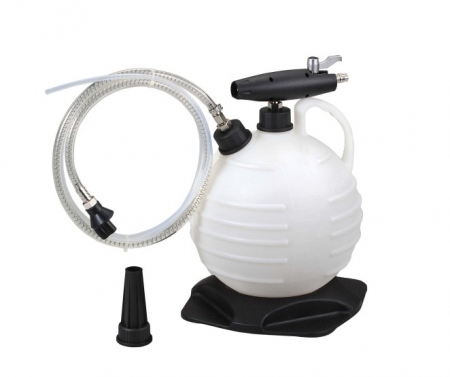

Air-Powered Oil Extractor Set - Step on type
Model
KA-6000BRA
Specification:

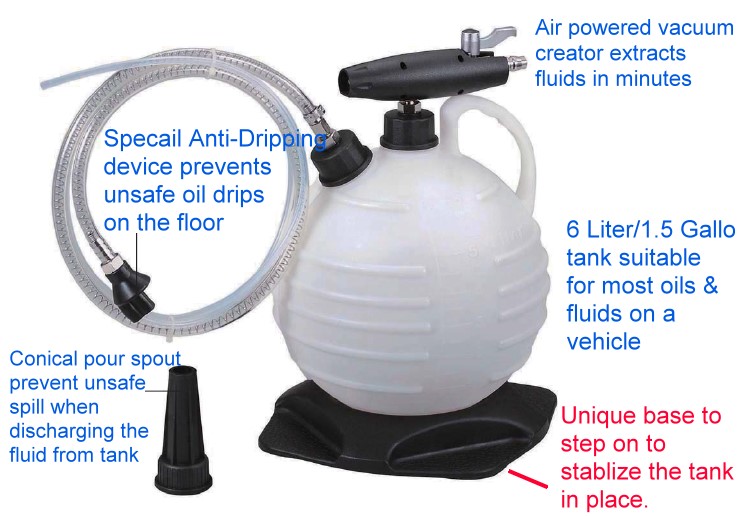

- Designed for Extracting Engine Oil, Brake Fluid, Coolant & ATF.
- 6 Liter / 1.5 Gallon Tank capacity suitable for most fluids in the car.
- High Quality Translucent Tube for Inserting into Dipstick Tube.
- Special Anti-Dripping device to prevent unsafe oil dripping on the working floor
- Conical pour spout for spill-free waste oil discharge.
Extracting Engine Oil
Warm up the engine to working temperature (may range from 60° to 90°C / 140° to 194°F).
 |
 |
 |
| Remove the oil dipstick and compare the length to the translucent tube. | Insert the translucent tube into the dipstick tube with the same length to the dipstick. Connect the tank to air compressor. Turn on the air valve and engine oil will be extracted accordingly. | Turn off the air valve, and remove the translucent tube from the engine when engine oil is fully extracted. Insert the tip of the translucent tube to the anti-dripping device to prevent residual oil in the tube dripping on the working floor. |
