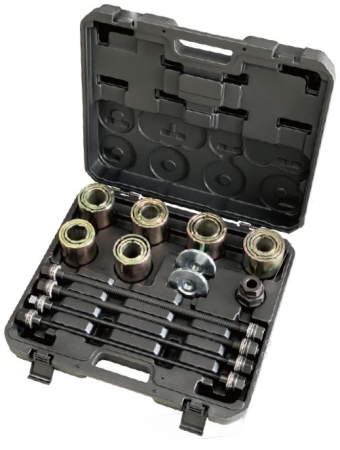

Ball Joint Removal / Install Press & Pull Sleeve Set

KA-3976D
KA-3976D

Model

KA-3976D

Specification:

  • Universal Tool Set for Extracting and Drawing in: Silent Bearings, Hydraulic Bearings, Bearing Bushes, Ball Bearings, Shaft Seals, Rubber Bearings…etc
  • Depending on Requirements, the particular Sleeves can also be individually reworked eg. Recess.
  • Application also with workshop press + press frame.
Content:
  • 20pcs sleeves (ØOD x ØID)
A. 44 x 34mm H. 58 x 48mm O. 72 x 62mm
B. 46 x 36mm I. 60 x 50mm P. 74 x 64mm
C. 48 x 38mm J. 62 x 52mm Q. 76 x 66mm
D. 50 x 40mm K. 64 x 54mm R. 78 x 68mm
E. 52 x 42mm L. 66 x 56mm S. 80 x 70mm
F. 54 x 44mm M. 68 x 58mm T. 82 x 72mm
G. 56 x 46mm N. 70 x 60mm

  • 1pc labor-saving nut
  • 4pcs puller – spindle
1. M16 x 450mmL + Nut
2. M14 x 450mmL + Nut
3. M12 x 450mmL + Nut
4. M10 x 450mmL + Nut
