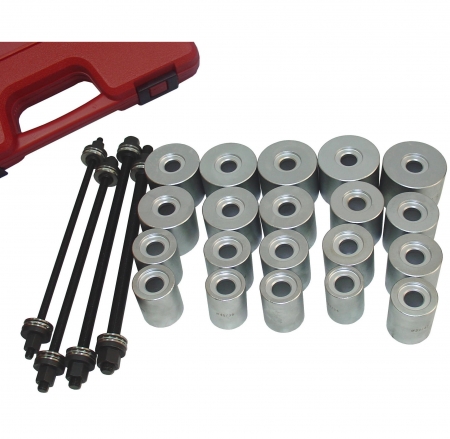

Press and Pull Sleeve Kit -24pcs / set

KA-3976A(1)
KA-3976A(1)

Model

KA-3976A

Description

  • Universal tool set for extracting and drawing in: silent bearings, hydraulic bearings, bearing bushes, ball bearings, shaft seals, rubber bearings, ect.
  • Fully universal application. Ideal for different vehicles. Cars + HGVs.
  • Depending on requirements, the particular sleeves can also be individually reworked(e.g. recess, etc.)
  • Application also with workshop press + press frame.
Specification:
  • 20pcs sleeves (ØOD x ØID)
A. 44 x 34mm H. 58 x 48mm O. 72 x 62mm
B. 46 x 36mm I. 60 x 50mm P. 74 x 64mm
C. 48 x 38mm J. 62 x 52mm Q. 76 x 66mm
D. 50 x 40mm K. 64 x 54mm R. 78 x 68mm
E. 52 x 42mm L. 66 x 56mm S. 80 x 70mm
F. 54 x 44mm M. 68 x 58mm T. 82 x 72mm
G. 56 x 46mm N. 70 x 60mm

  • 4pcs puller – spindle
1. M16 x 350mmL + Nut
2. M14 x 350mmL + Nut
3. M12 x 350mmL + Nut
4. M10 x 350mmL + Nut
