Description

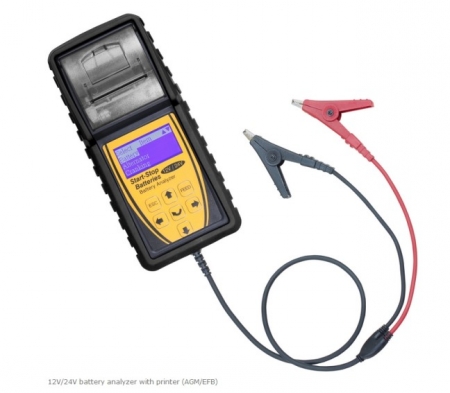

• 12V Battery Analyzer with printer
• This analyzer utilizes a series of pulsed voltage across the battery cells
• and observes the AC current that flows in response to it.
• Help to know the ability of battery system(battery, alternator, cranking
• motor) soon Equiped an built-in thermal printer, we can have the real stats
• on paper in just 3 seconds after the test.
• Conductance correlates directly to the battery capacity.
• This passive testing method is safe, because it's different from the
• traditional load testing.

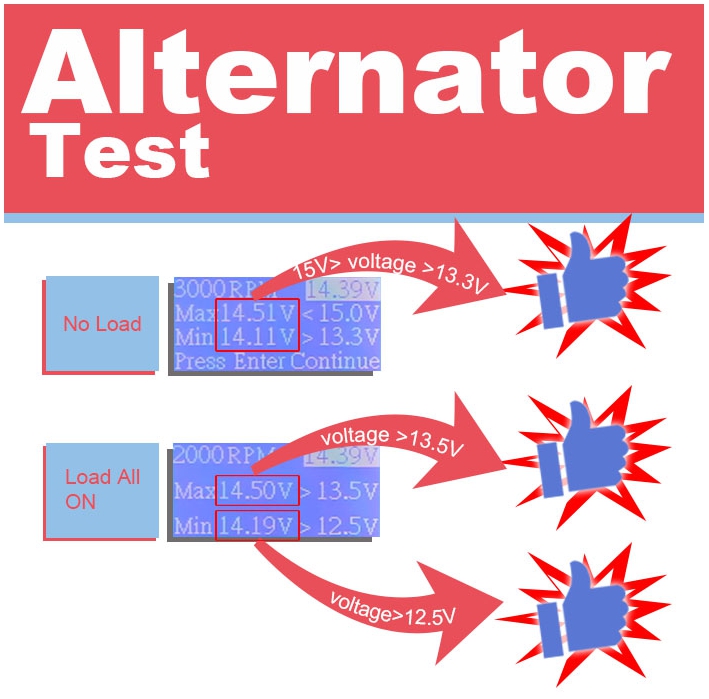

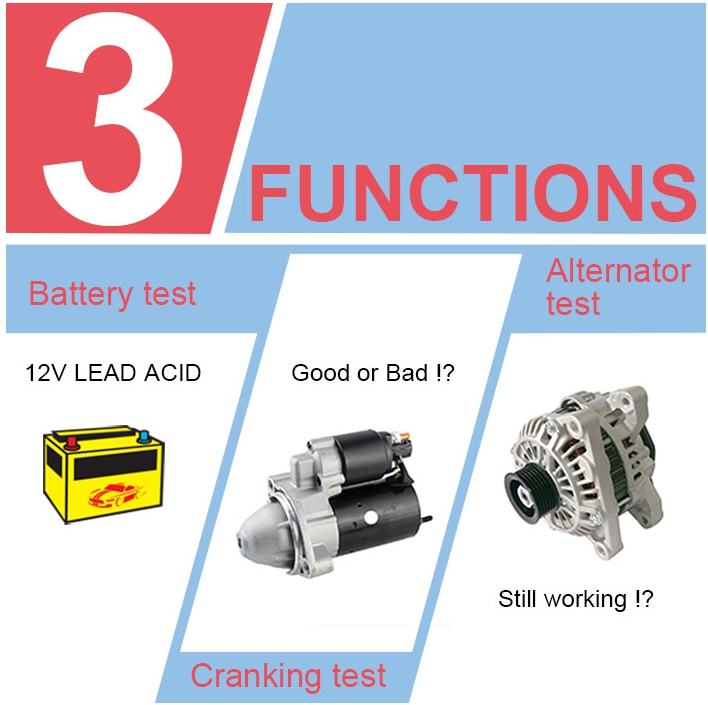

• The result is consistent, repeatable and be performed numerous times. This

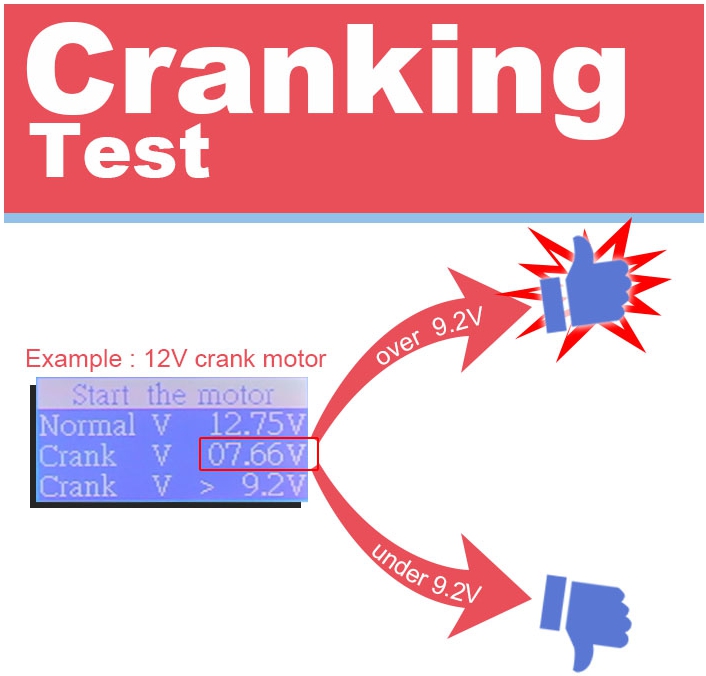

• analyzer can also check the Alternator's charging and Starter's cranking
• conditions.
• It is maintenance free and no internal batteries required. (powers up when
• connected to the battery posts during testing.)
• The operation is fast and simple.

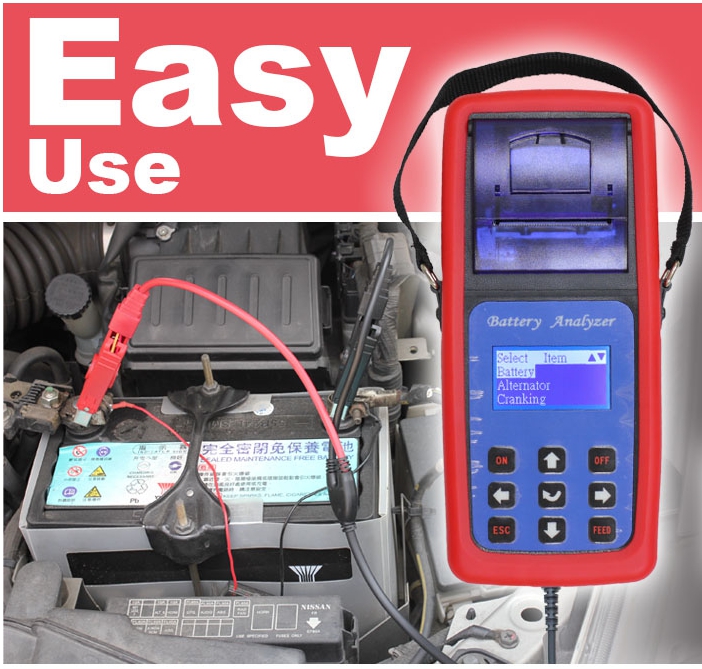

• The user just need to connect to the battery, the displayed instructions on
• the screen will lead you through and a warning tone to caution you to
• perform the correct steps.
• Without heating up the unit. It is very safe as it does not create any sparks
• when connected to the battery terminals during testing on the vehicle.Just
• one button to print out the result, easy to keep it for long time
