Model

KA-3421L

Specification:

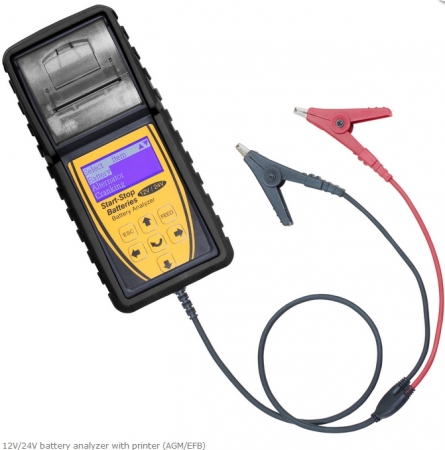

• 12V / 24V Battery Analyzer with printer
• (AGM/EFB)
• This analyzer utilizes a series of pulsed voltage across the battery cells and observes the AC current
• that flows in response to it.
• Help to know the ability of battery system(battery, alternator, cranking motor) soon Equiped an built-
• in thermal printer, we can have the real stats on paper in just 3 seconds after the test.
• Conductance correlates directly to the battery capacity This passive testing method is safe, because
• it's different from the traditional load testing.

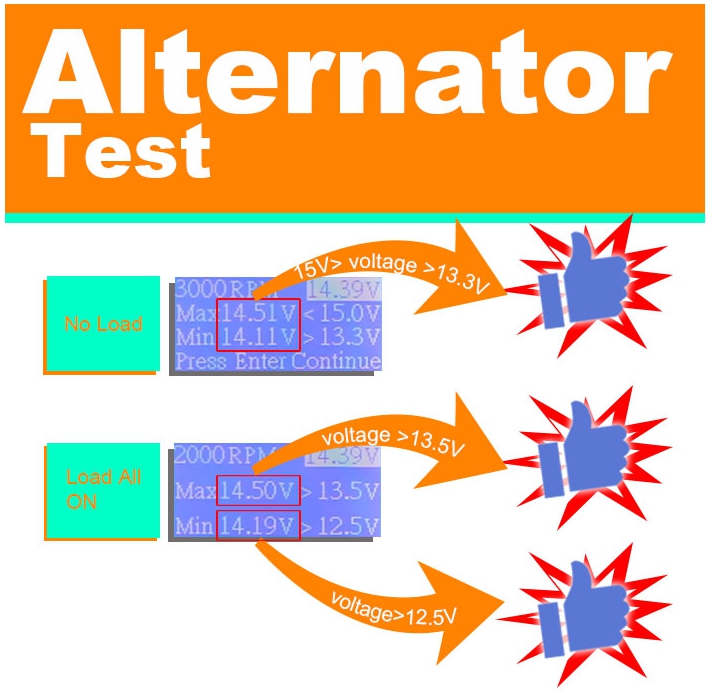

• The result is consistent, repeatable and be performed numerous times. This analyzer can also check
• the Alternator's charging and Starter's cranking conditions.
• It is maintenance free and no internal batteries required. (powers up when connected to the battery
• posts during testing.)

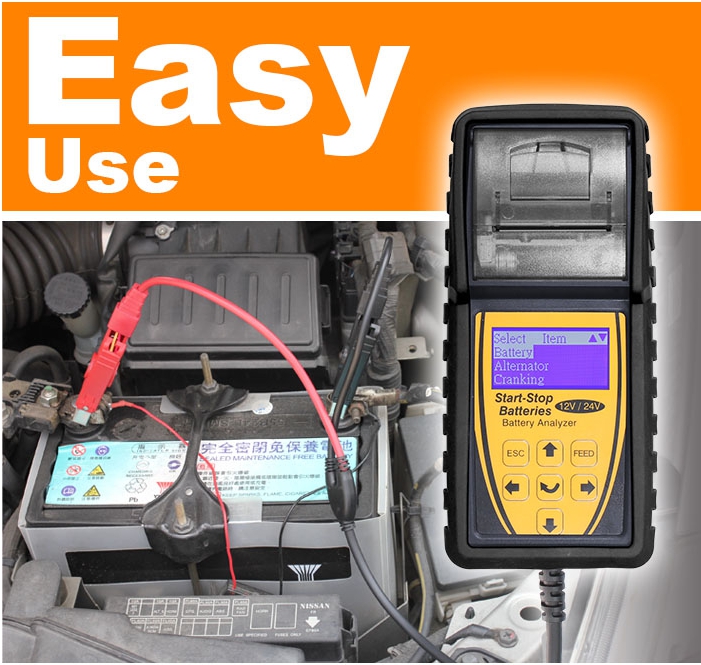

• The operation is fast and simple.
• The user just need to connect to the battery, the displayed instructions on the screen will lead you
• through and a warning tone to caution you to perform the correct steps.
• Without heating up the unit. It is very safe as it does not create any sparks when connected to the
• battery terminals during testing on the vehicle. Just one button to print out the result, easy to keep it for long time.
