Dual Function Air Torque Wrench + Air Ratchet

PA-3090
PA-3090
PA-3090 demo (2)

Model

PA-3090-12 / PA-3090-38

Specification:

  • PA-3090-12: 1/2" Drive
  • PA-3090-38: 3/8" Drive

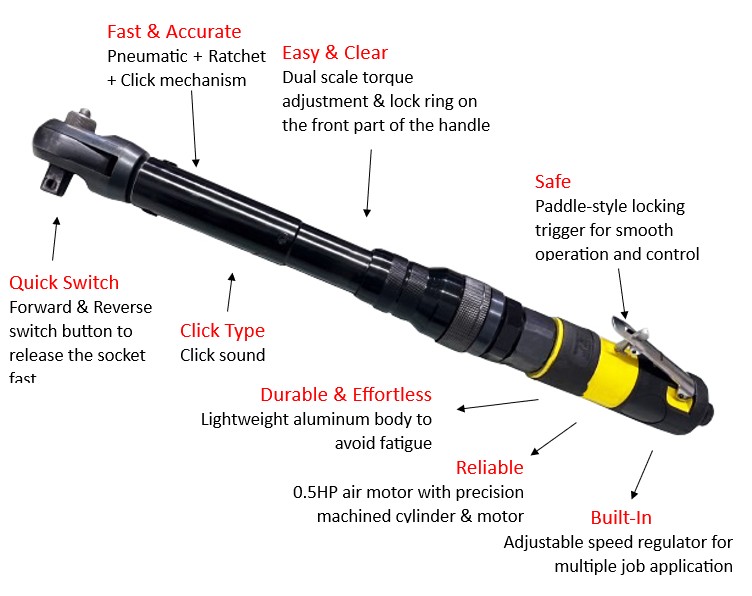

  • First Pneumatic Ratchet combined with Clip type Torque Wench
  • Max Torque: 150 ft-lb/ 200Nm ,Torque Range: 30-150 ft-lb/ 40-200 Nm
  • Great for quick locking the bolts with torque setting
  • Torque adjustment with manual locking ring at the front of the handle
  • Reliable Durable mechanism to using up to 5000 cycles!!
  • 4% accuracy complied with ISO 6789-1:2017 specification
  • Patented
ADD INQUIRY
Item No. Size
SQ. Dr		 Free Speed Max Torque Torque Range Air
Consumption		 Net
Weight		 Overall
Length		 Air Inlet Air
Pressure		 Hose
Size (ID)
PA-3090-12 1/2”  170 RPM 150 ft-lb
200Nm		 30-150 ft-lb
40-200 Nm		 6.3 cfm
2.8 kg		 2.8 kg 480mm 1/4”NPT 90 PSI 3/8”
PA-3090-38 3/8" 170 RPM 150 ft-lb
200Nm		 30-150 ft-lb
40-200 Nm		 6.3 cfm
2.8 kg		 2.8 kg 480mm 1/4"
NPT		 90 PSI 3/8"
