VDE Interchangeable Insulated Torque Screwdriver Set

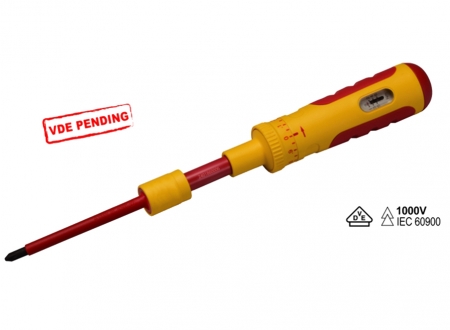

9.00.043 torque screwdriver
9.00.043 torque screwdriver
9.00.043 series 1
9.00.043AA series1
9.00.043 torque screwdriver demo
9.00.043 torque screwdriver demo2

Model

9.00.043 series

Specification:

  • Tolerance of Torque +/- 6% .
  • Interchangeable Screwdriver Blades.
  • Slipping Clutch Mechanism.

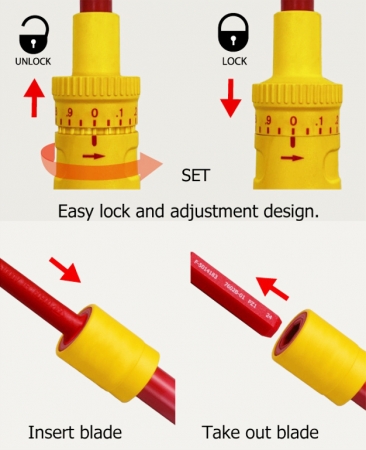

  • Micrometer scale for accurate torque setting.

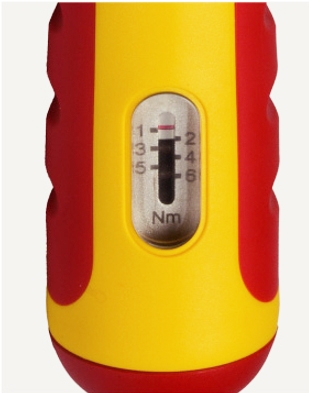

  • Easily readable scale with Window Screen.
  • Applied to both clockwise and counterclockwise directions.
  • Four Options for screwdriver torque range: 0.5-3Nm / 1-6Nm / 5-25 in-lb / 10-50 in-lb
  • Varying Configurations of Blade options.
  • Ensure Safety on electrical equipment up to 1000V AC or 1500V DC.
  • Ergonomic insulated grip provides protection against electric shock.
  • Quality meets VDE international standard – IEC 60900.
  • Quality meets DIN ISO 6789 & ASME B 107.300.2010.
ADD INQUIRY

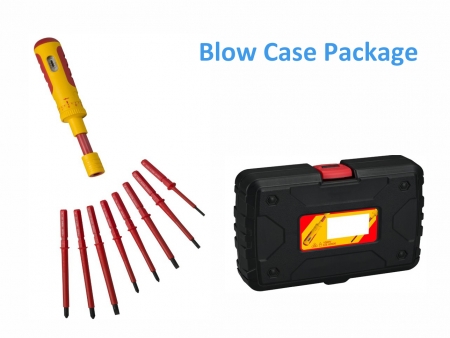

Packing: Blow Case
Item No. Nm Blades Graduation L (mm) gram Case/CTN
9.00.043A 0.5 – 3 3.0,4.0,5.5,6.5, PH1, PH2, PZ1, PZ2 0.05 212 560 24
9.00.043B 1 – 6 3.0,4.0,5.5,6.5, PH1, PH2, PZ1, PZ2 1 212 560 24
9.00.043C 5 – 25 3.0,4.0,5.5,6.5, PH1, PH2, PZ1, PZ2 0.05 212 560 24
9.00.043D 10 - 50 3.0,4.0,5.5,6.5, PH1, PH2, PZ1, PZ2 1 212 560 24

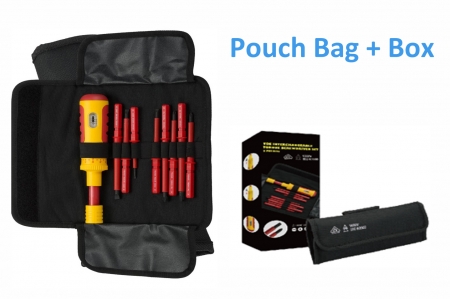

Packing: Pouch bag + Box
Item No. Nm Blades Graduation L (mm) gram Case/CTN
9.00.043AA 0.5 – 3 3.0,4.0,5.5,6.5, PH1, PH2, PZ1, PZ2 0.05 212 560 24
9.00.043BA 1 – 6 3.0,4.0,5.5,6.5, PH1, PH2, PZ1, PZ2 1 212 560 24
9.00.043CA 5 – 25 3.0,4.0,5.5,6.5, PH1, PH2, PZ1, PZ2 0.05 212 560 24
9.00.043DA 10 - 50 3.0,4.0,5.5,6.5, PH1, PH2, PZ1, PZ2 1 212 560 24
