Pulsate Cooling System Flush Tool
Model
KA-6801N

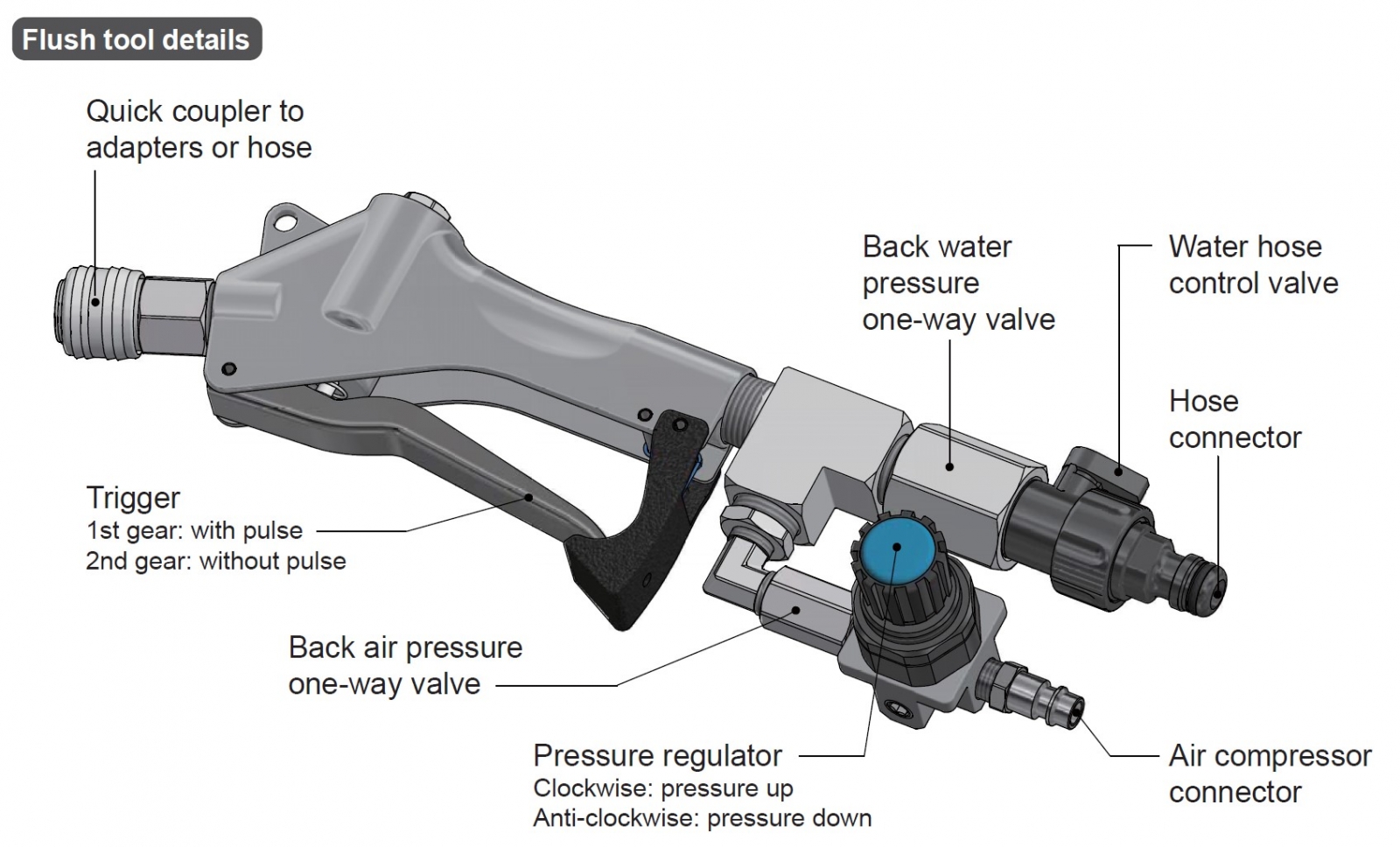

Specification:
- With water !!
- Flush the Radiator, Upper/Lower hoses, Heater Core.
- Powerful flush cleans impurities in cooling system with pulsating effect.
- Connects to air compressor and garden hose for flushing the cooling system.
- Special back pressure one-way valve to avoid excessive pressure accumulated in water hose.
- Regulator Equipped to adjust the water pressure.

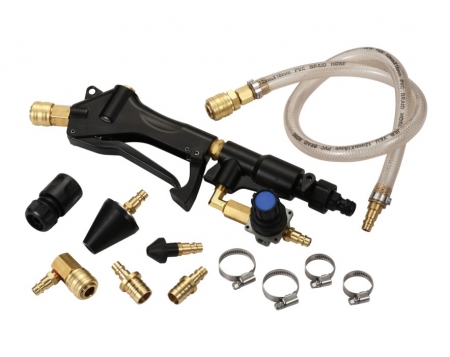

- A conical adapter for fitting radiator filler necks.
- 5/8” & 3/4” heater hose barbs and small conical adapter for flushing heater side.
- Connect a garden hose (not included) to the garden hose connector.
- Connect the tool to air compressor.

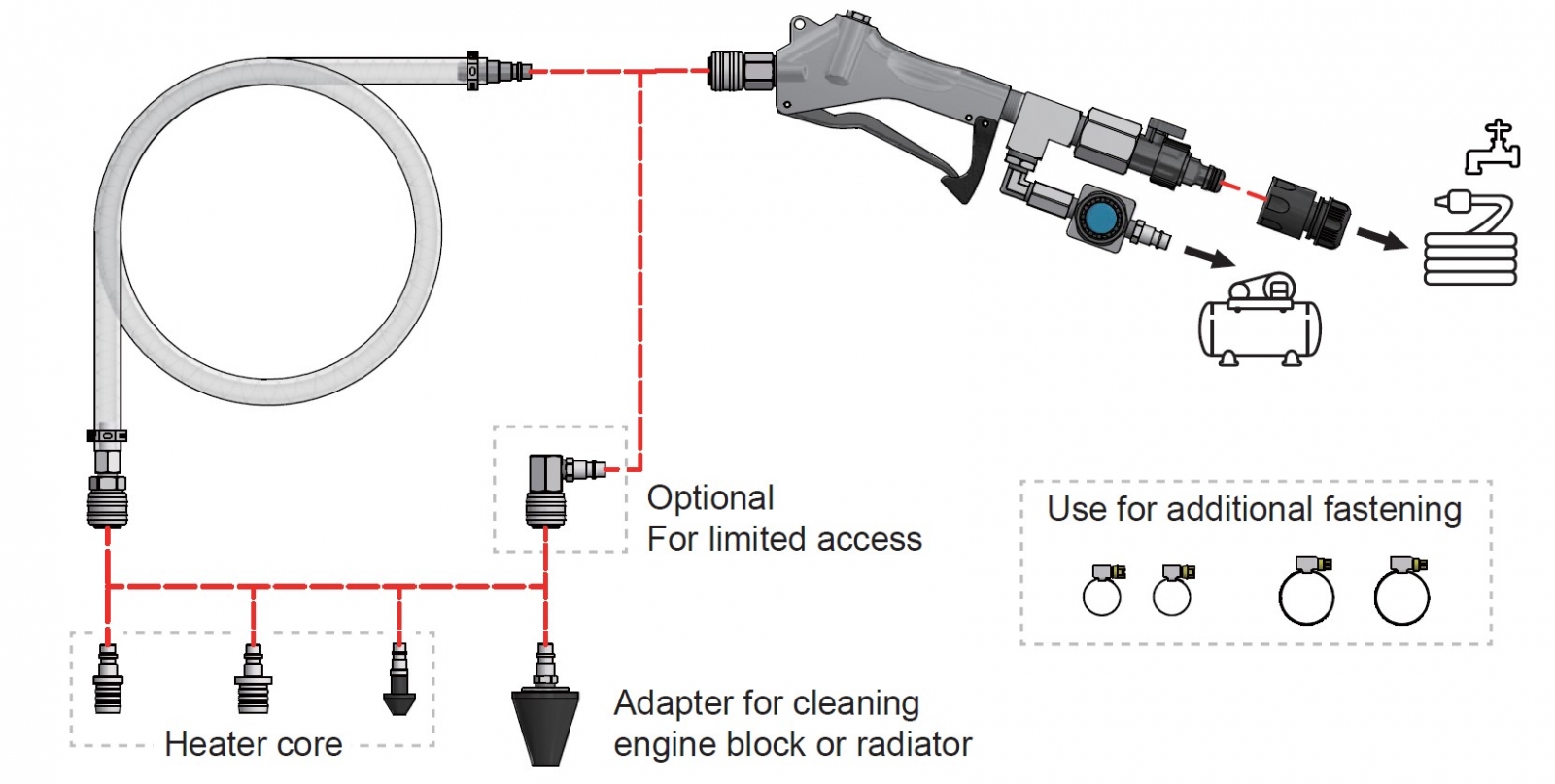

- Depending on the cleaning area, select the appropriate adapters.
Cleaning the radiator - Connect the flush tool to the big conical adapter, and connect the adapter to radiator filler neck.
Cleaning engine block - Connect the flush tool to flush hose and the big conical adapter via upper hose or lower hose.
Cleaning heater core - Connect the flush tool to flush hose and one of the heater core adapters, secured the connection by the hose clamps provided.
Cleaning engine block - Connect the flush tool to flush hose and the big conical adapter via upper hose or lower hose.
Cleaning heater core - Connect the flush tool to flush hose and one of the heater core adapters, secured the connection by the hose clamps provided.
- Prepare a bucket (not included) to collect the liquid flushed out of the system at the water outlet.
OPERATION
- Turn on the water faucet, and adjust the pressure regulator to the pressure desired.
- Press the trigger to the first gear to create the flushing water flow with a pulsating effect.
Press the trigger to the second gear to create the flushing water flow without a pulsating effect.
- Collect the liquid flushed out, and check the impurities or debris within, and do the proper maintenance, for example changing a water pump, if necessary.
