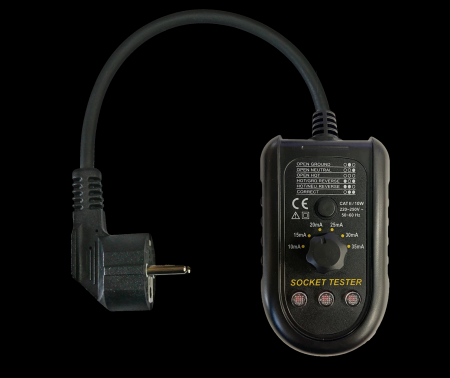

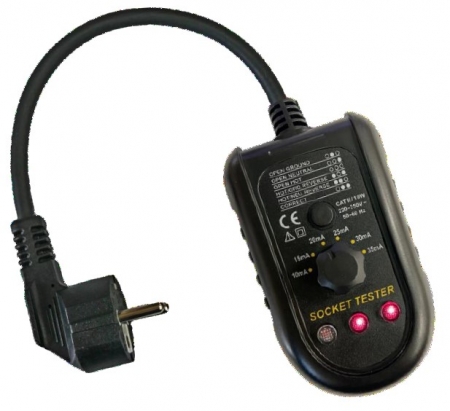

Socket Tester

Universal Electrical Repair Tools
KA-6788AUK KA-6788AEU KA-6788AAU (1)
KA-6788AUK KA-6788AEU KA-6788AAU (1)
KA-6788AUK KA-6788AEU KA-6788AAU (3)
KA-6788AUK KA-6788AEU KA-6788AAU (2)
KA-6788AUK KA-6788AEU KA-6788AAU (4)
KA-6788AUK KA-6788AEU KA-6788AAU (2)

Model

KA-6788AUK / KA-6788AEU / KA-6788AAU

Specification:

  • KA-6788AUK/KA-6788AEU/KA-6788AAU
  • Socket Tester
  • Descriptions:

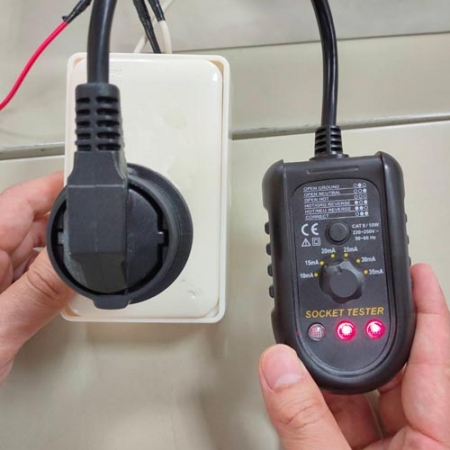

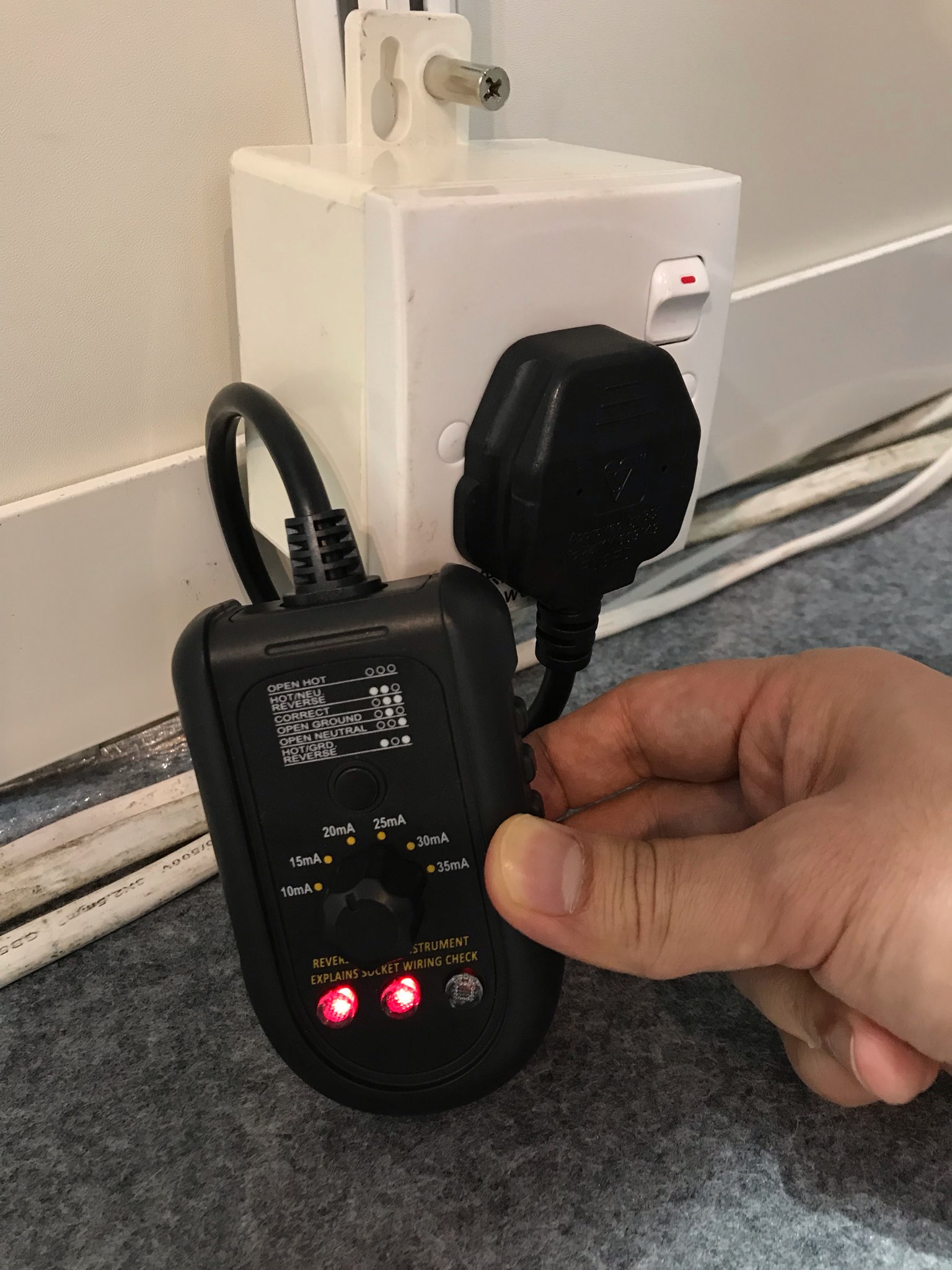

  • 1. Portable 220VAC socket tester to inspect the wiring conditions.
  • 2. Also featuring current variation for simulation of different leaking current.
  • 3. With the current variation, technician is able to test the condition of Ground Fault Circuit Interrupter (GFCI) / Residual Current Device (RCD)easily.
  • Features:
  •  CE and LVD Approval
  •  Test for GFCI receptacle for proper operation
  •  GFCI / RCD Leaking Current Selection Switch-10mA, 15mA, 20mA , 25mA, 30mA and 35mA.
  •  Test the wiring condition
  •  Various combinations of 3 neon indicators tell if wiring is OK or 6 possible faulty conditions
  •  Power Plug type & Voltage: 220V ± 10% (For UK and EURO) / 230V ± 10% (For AUS)

Description

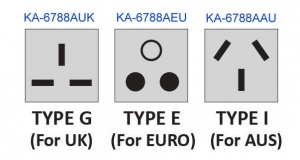

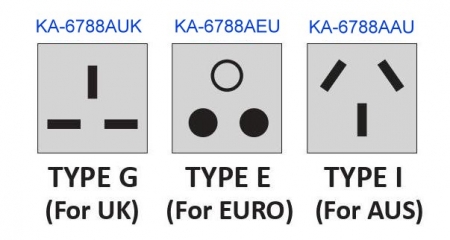

  • 3 types to select from: Type G plug (UK), Type E plug(EUROPE), Type I plug (Australia)
KA-6788AUK KA-6788AEU KA-6788AAU (2)
