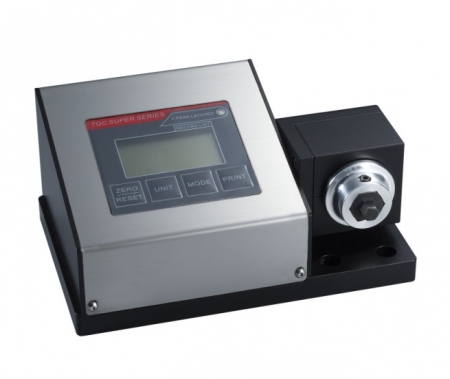

Torque Tester
Model
KT-7718-15
Specification:
- Specialized torque testing equipment designed for the variety of mechanical torque wrenches.
- Simple, accurate and cost-effective torque tester for performing calibration checks in house.
- High speed of data reading performance (2400 run/sec.)
- RC-232 communication port is included for the output of reading to PC.
- There are six torque units available for application (Lb-ft, Lb-in, N-m, N-cm, kg-m, kg-cm).
- As standard, the transducer is calibrated in a clockwise direction with a traceable calibration certificate.
- Quality meets BS7882:1997 standard with the accuracy of +/- 0.5% of reading over the 20%~100% of full scale.
- With three operating modes: “Track” displays the live value, “Peak” records the highest value and “First Peak” records the first peak of torque.
- Under “First Peak” mode, the “light signal” and “Buzzer” indicate the testing completion and testing return to zero.
- Memory function can display the 4 previous readings taken by the operator. It’s no need to stop and write after each reading.
Calibration Range (N-m) | 0.75~15Nm |
---|---|
Accuracy | ±0.5% |
Units of Measurement | Lb-in, lb-ft, kg-cm, N-m, N-cm |
System Resolution (N-m) | 0.001 |
Input Hex A/F (mm) | 10mm |
Square Drive Adaptor (inch) | 1/4” , 3/8” |
Operating Temperature Range | +5℃~+40℃ |
Storage Temperature Range | +0℃~+70℃ |
Power Cable | 200mm |
Power Consumption (watt) | 5 |
Dc Power Output | DC9.0V |
Base Materials / Finish | Aluminum / Painting |
Dimensions (L*W*H) | 237*150*106mm |
Weight | 7.7kg |
