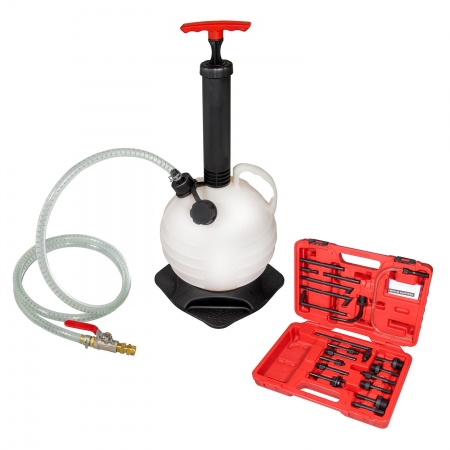

Manual ATF Refill With 20pcs "Nylon" Adapters (Economy)
Description
|
|
Instructions:
.jpg)

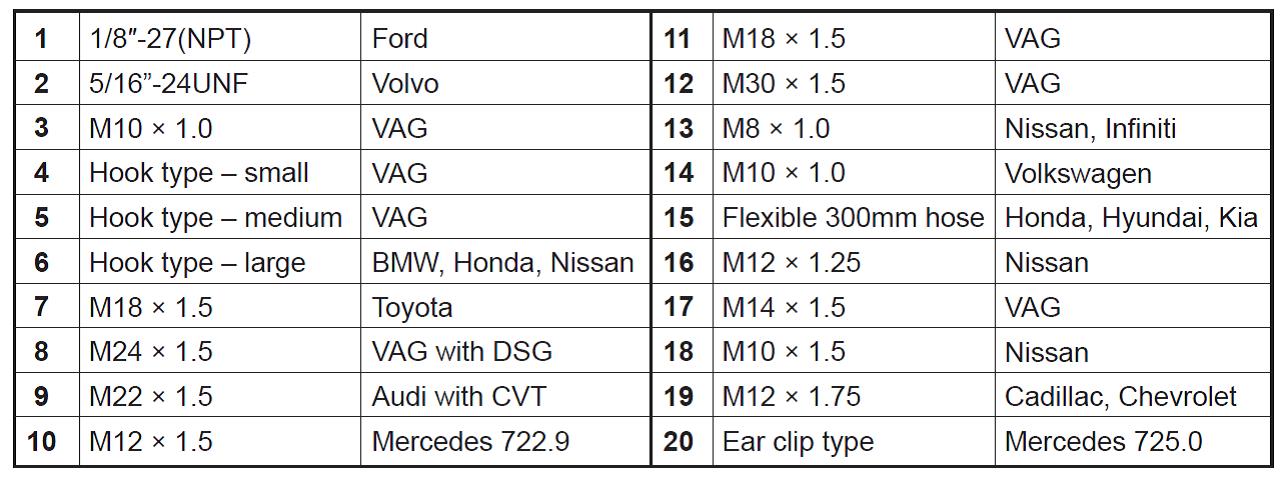

Attachment Specification:
- Fill the 6 liter / 1.5 gallon tank with new ATF.
- Connect the manual pump on top of the tank.

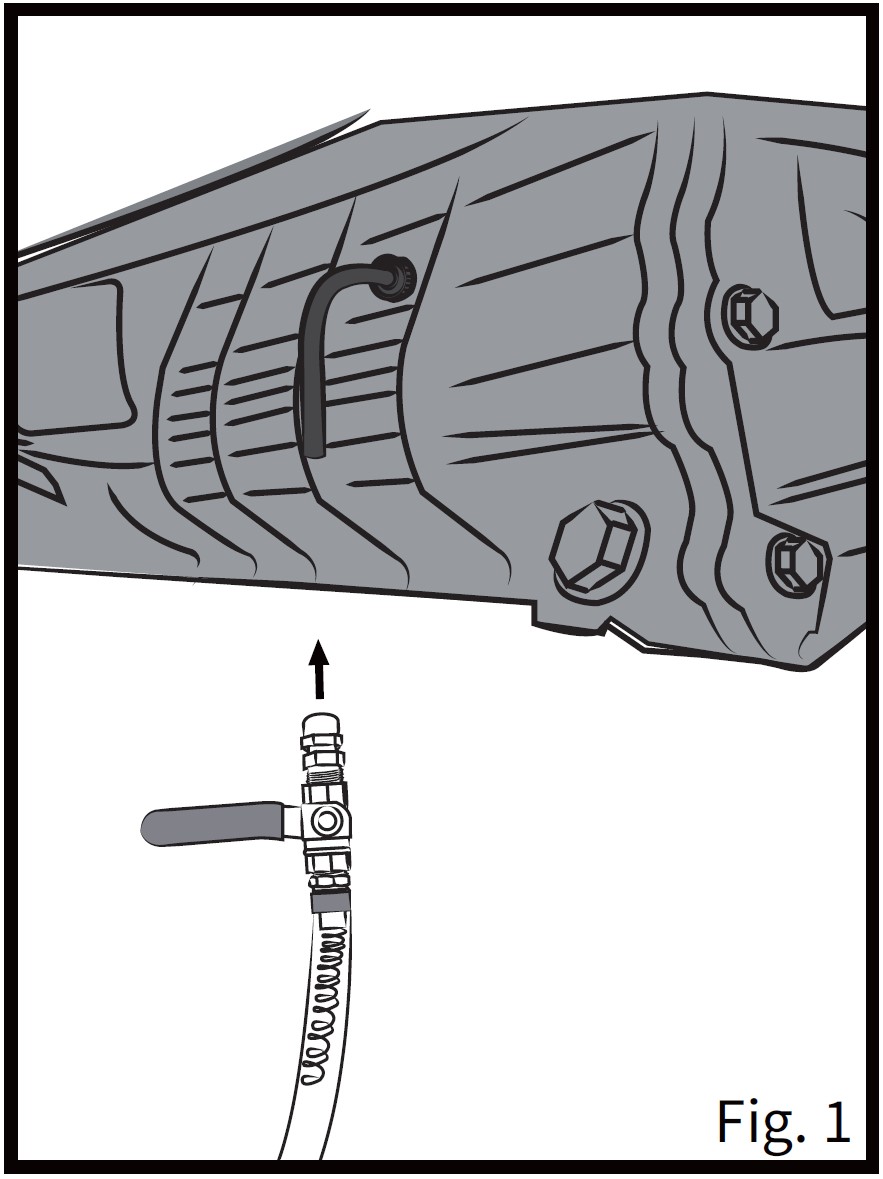

- Choose a suitable adapter and connect the adapter to the transmission filler plug (Fig.1) (or drain plug with an overflow pipe if no filler plug exists).

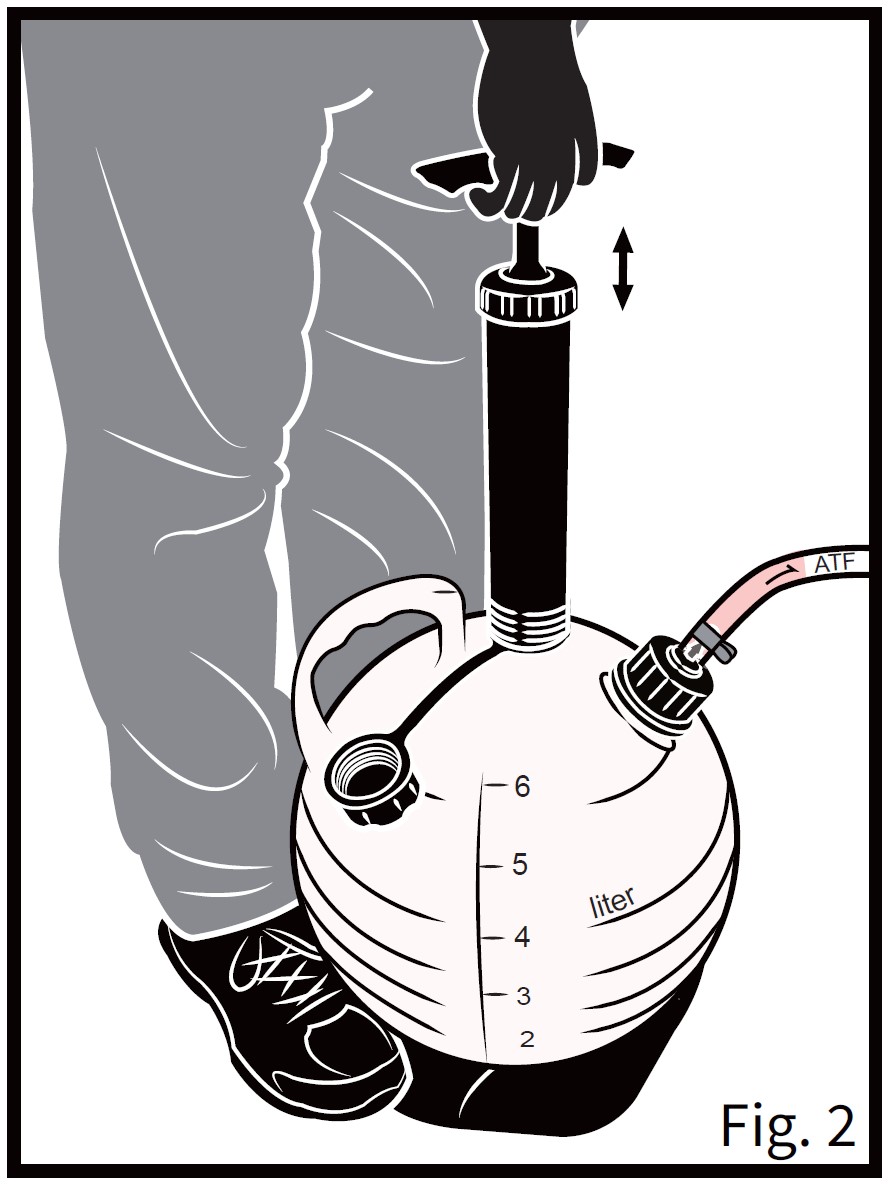

- Connect the hose to the transmission adapter. Pump manually for about 40 times (Fig.2), and open the valve on the hose end.
- The pressure will push the new AFT into the transmission.
- Disconnect the adapter from transmission, and drain residual fluid in the hose. Store the tool in a well-ventilated location, and avoid direct sunlight exposure.
.jpg)
.jpg)
Attachment Specification:
.jpg)
