12pcs Coolant Refilling Funnel Set With Extension Pipes

Fuel System
KA-3736A
KA-3736A

Model

KA-3736A

Specification:

  • Funnel capacity: 1,600ml/54.1oz.
  • Large capacity suitable for works on trucks and heavy duty vehicles.

Description

  • For anti-spill coolant refilling and air bleeding.
  • Includes 4 extension pipes for confined space or tricky angles.
  • Transparent lower chamber displays the amount of air bubbles remaining in the radiator.
  • Includes adapters with nylon covers to reduce heat transfer resulted from air bleeding.

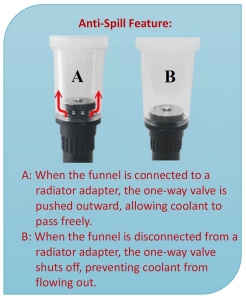

  • Special design of connector to adapters provides anti-spill feature.

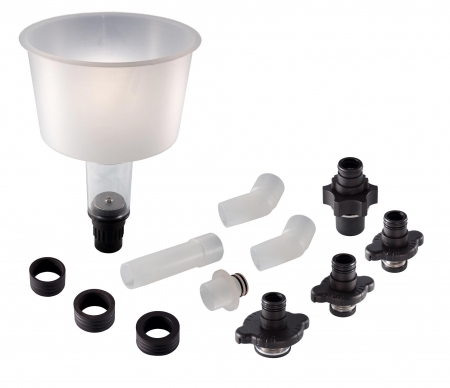

KA-3736A(Anti-Spill)

1 Coolant funnel (1.6L / 54.1 Oz) 8 Connector pipe
2 Outlet size Ø 56.8mm 9 124mm long connector
3 Replacement o-ring Ø20.4 x 2.0mm (4pcs) 10 Universal radiator adapter
4 No. 3 radiator adapter 11 Rotate to expand
5 No. 4 radiator adapter 12 Ø35 x 30mm rubber ring
6 No. 5 radiator adapter 13 Ø39.5 x 30mm rubber ring
7 135° offset adapter (2pcs) 14 Ø44 x 30mm rubber ring
