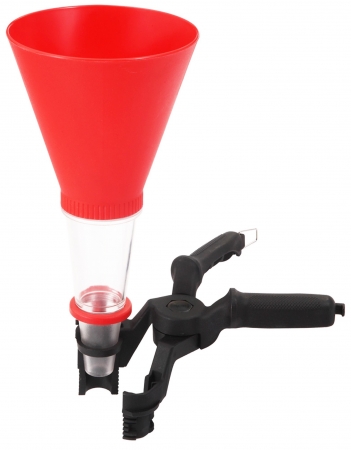

2PCS Universal Oil Funnel

KA-6978DT
KA-6978DT
KA-6978DT(1)

Model

KA-6978DT

ADD INQUIRY

Description

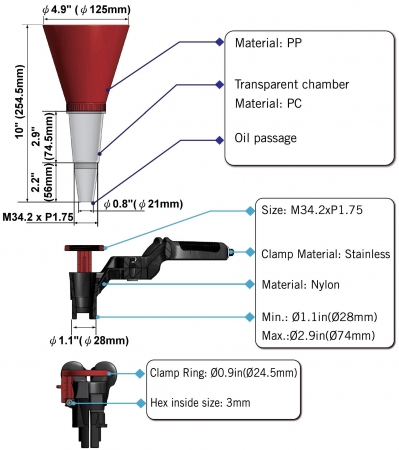

  •  Universal application.
  •  The width of the clamp is automatically adjustable 28mm~74mm (1.1” ~ 2.9”)
  •  The funnel has a thread that fits perfectly in the clamp.
  •  The funnel has a special transparent design in the lower chamber to see the passage of the oil.
  •  No need to hold the funnel with your hand when refilling the oil.

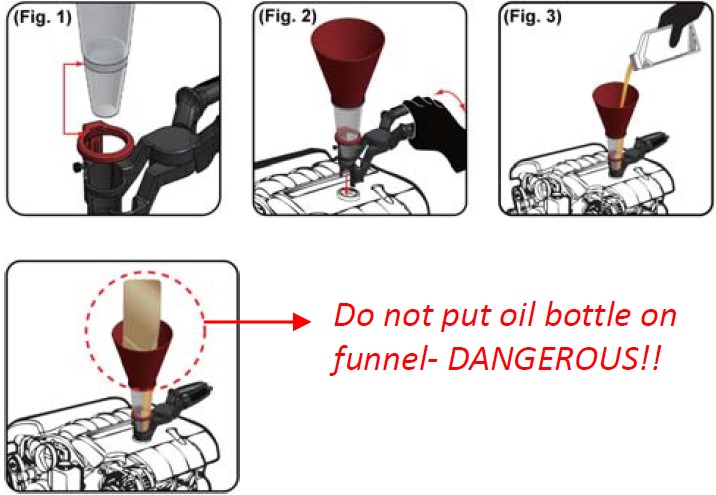

Instruction:
  • Thread funnel into the clamp ring. The clamp has to be open when screwing the funnel. (Fig. 1)
  • Close the clamp and put into the oil filler neck, then release the clamp; the clamp will automatically be adjusted to oil filler neck. (Fig. 2)
  • Start filling the oil into the engine. (Fig. 3)

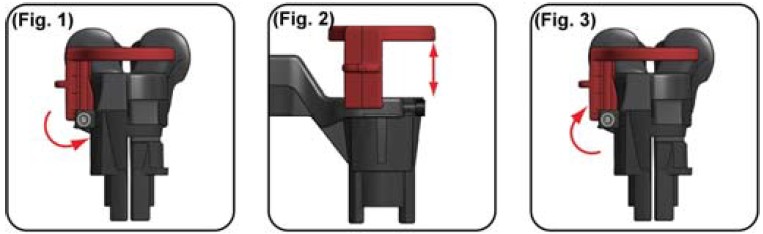

How to adjust the clamp ring

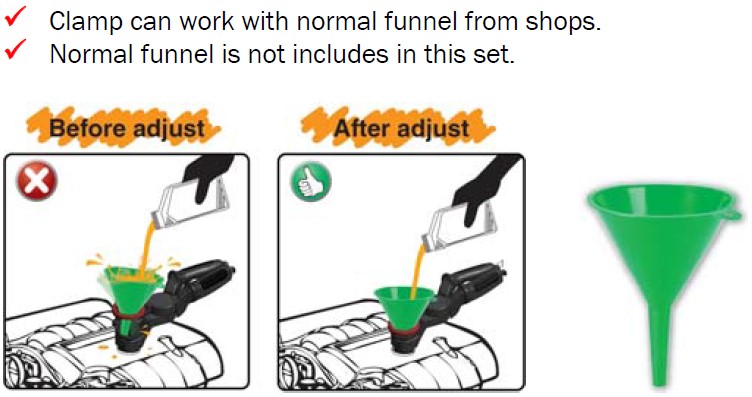

Note: only when use clamp with normal funnel, users need to adjust clamp ring height.
  • Release the screw anti-clockwise. (Fig. 1)
  • Adjust the clamp ring. (Fig. 2)
  • Fix the screw clockwise. (Fig. 3)

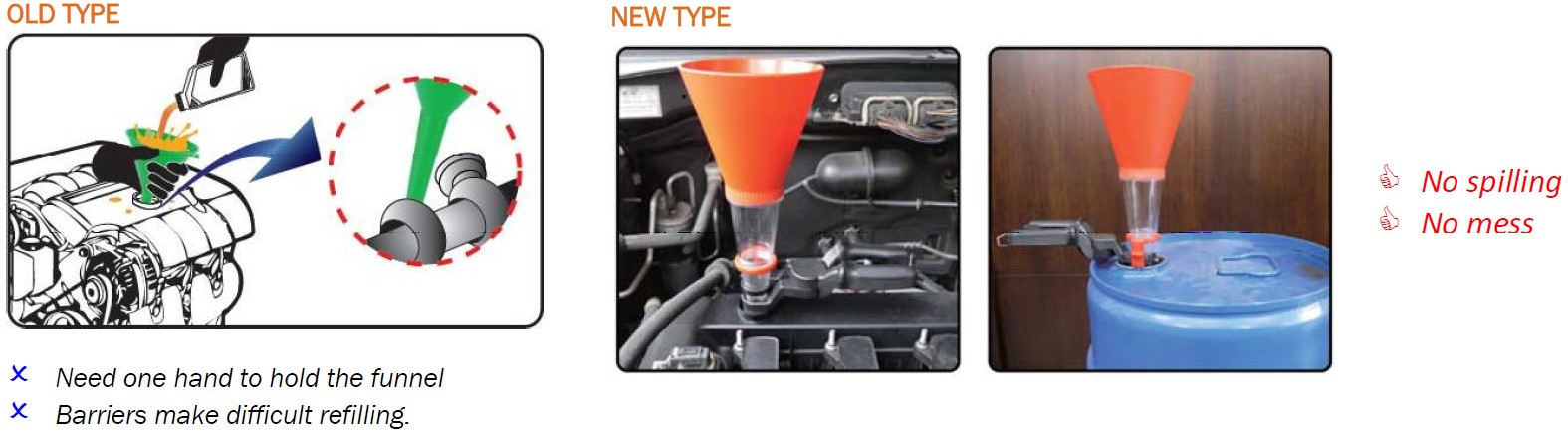

Comparison:
