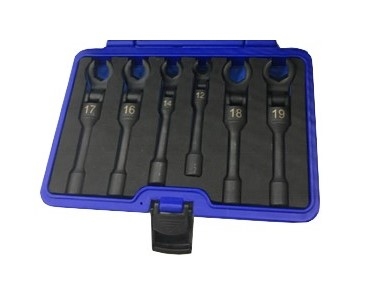

6pcs Square Drive Diesel Injection Wrench Set

KA-3785
KA-3785

Model

KA-3785A / KA-3785B

Specification:

  • KA-3785A  , 3/8” Dr.  x 12-14-16-17-18-19mm.
  • KA-3785B  , 1/2” Dr.  x 12-14-16-17-18-19mm.
ADD INQUIRY

Description

  • For Mercedes LV, UV and specific diesel motorisations.
  • 6 point.
  • 3/8” or 1/2” square drive bit.
  • Length: 115~122mm
other size available:
Size (mm) Length (mm) 1/2” Drive 3/8” Drive
6 115 KA-3785B-6 KA-3785A-6
7 115 KA-3785B-7 KA-3785A-7
8 115 KA-3785B-8 KA-3785A-8
9 115 KA-3785B-9 KA-3785A-9
10 115 KA-3785B-10 KA-3785A-10
11 115 KA-3785B-11 KA-3785A-11
12 115 KA-3785B-12 KA-3785A-12
13 118 KA-3785B-13 KA-3785A-13
14 118 KA-3785B-14 KA-3785A-14
15 118 KA-3785B-15 KA-3785A-15
16 120 KA-3785B-16 KA-3785A-16
17 120 KA-3785B-17 KA-3785A-17
18 120 KA-3785B-18 KA-3785A-18
19 120 KA-3785B-19 KA-3785A-19
21 124 KA-3785B-21 KA-3785A-21
22 124 KA-3785B-22 KA-3785A-22
23 124 KA-3785B-23 KA-3785A-23
24 124 KA-3785B-24 KA-3785A-24
