Description
|
|
Features:
Specifications:
Applications:
Automotive and truck repairs, Aviation service and repair, Electrical components, Environmental splicing, Field repairs, Insulated solder preform, Jewelry repair, Loosen rusted nuts and bolts, Maintain switch panels, Repair television sets, meters, switch boards, sensitive IC boards, shrink tubing, silver solder, soften window caulking, Solder circuit boards, TV cable systems, Weld plastics.
Option accessories: the accessories listed below are available
How to changing tips:

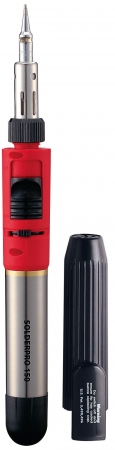

- Equivalent to a power range 30-125watt.
- Cordless, simple, safe operation anywhere.
- Ready to use 15 seconds after ignition.
- Patented LEC removable fuel cell for uninterrupted use, safety & reliability even at very low temperatures. LEC refills easily with any brand of butane fuel. LEC filters butane for no-clog operation.
- Disposable LECs available. Integrated stand for safety and hands free use.
- May be legally transported on commercial airlines (without LEC)
- No electrical interference.
- Comes with soldering tip and protective cap.
Specifications:
Length: | w/cap | 254mm (10”) |
---|---|---|
w/soldering tip | 245mm (9.7”) | |
Weight(when gas-filled) | 240g | |
Approximate temperature soldering tip |
250~550℃ (480~1000℉) |
|
Torch | 1300℃ (2400℉) | |
Gas container capacity | 20 ml | |
Operating Time (one gas filling) |
30 min At mid setting |
Applications:
Automotive and truck repairs, Aviation service and repair, Electrical components, Environmental splicing, Field repairs, Insulated solder preform, Jewelry repair, Loosen rusted nuts and bolts, Maintain switch panels, Repair television sets, meters, switch boards, sensitive IC boards, shrink tubing, silver solder, soften window caulking, Solder circuit boards, TV cable systems, Weld plastics.
Option accessories: the accessories listed below are available
Parts NO. | Description | Type | Parts NO. | Description | Type | |||
---|---|---|---|---|---|---|---|---|
PS-1 | 1.6mm soldering tip | Conical | PS-6 | 3.2mm Soldering tip | Angle | |||
PS-2 | 3.2mm soldering tip | Conical | PS-9 | Hot Knife | -- | |||
PS-3 | 2.4mm soldering tip | Chisel | PS-10 | Heat Blower * KA-PRO150K includes |
-- | |||
PS-4 | 3.2mm soldering tip * KA-PRO150K includes |
Chisel | PS-14 | Orifice Assembly * KA-PRO150K includes |
-- | |||
PS-5 | 2.4mm soldering tip | Angle | S-30 | Defleclor * KA-PRO150K includes |
-- |
How to changing tips:
- Be sure the tip has cooled before removal.
- The catalyst seen through the hot air exhaust hole of the soldering tip is very delicate and will not sustain mechanical abuse without serious damage.
- The soldering tip is easily removable allowing the installation of other style tips or the replacement of a worn tip. After the soldering tip is cool, simply unscrew it with a counterclockwise motion. Be careful not to over-tighten as this could damage the nozzle assembly and thread in the body.
