Diesel Engine Timing Tool Set For Fiat 2.3 JTD
Model
KA-8332
Specification:
- This kit includes th latest crankshaft timing pin required from 2006-2008.
- The 2.3 JTD twin camshaft common rail diesel engine is belt driven between crankshaft and inlet camshaft but utilizes a chain to connect both camshaft. The high pressure fuel pump does not require timing.
Follow all the manufacturers’ specified procedures in preparation to remove the worn or damaged timing belt.

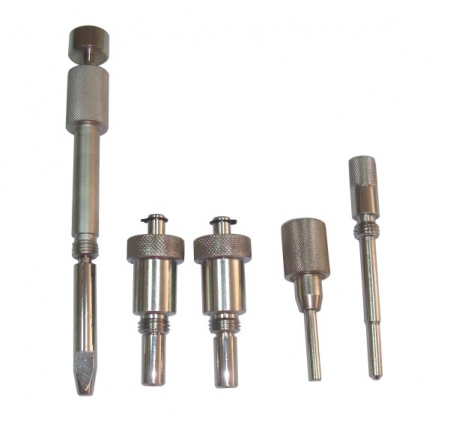

| Part | Description |
|---|---|
| A | Camshaft Timing Pins (2) |
| B | Camshaft Timing Pins (2005) |
| C | Camshaft Sprocket Alignment Pin |
| D | Camshaft Timing Pins (2006) |
| Manufacturer | Model | Engine Size | Year | Engine Code |
|---|---|---|---|---|
| Fiat | Ducato | 2.3JTD Multijet 120 | 2002-06 | F1 AE0481D, F1AE0481N |
| Fiat | Ducato | 2.3JTD Multijet 120 | 2006-08 | F1 AE0481D, F1AE0482N |
| Fiat | Ducato | 3.0JTD Multijet 160 | 2006 | F1AE0481D |
