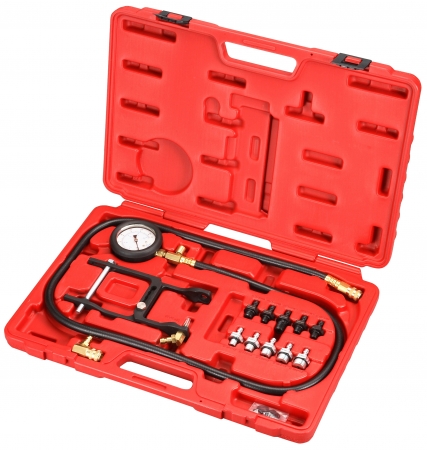

Oil Pressure Test Kit

Engine Tester
KA-7268K
KA-7268K

Model

KA-7268K

Description

  • Quick and accurate check engine oil pressure, and also available for checking oil pressure in automatic transmission.
  • Available for domestic and import vehicles, passenger cars and light trucks, gasoline and diesel cars.
Specification:
  • Mechanical gauge (0 ~ 150psi)
  • Quick tester clamp (only for connecting with oil filter)
  • Tester adapters:
Black (SAE threads)
Silver (Metric threads)
1/2” x 20 UNF
M10 x P1.0
3/8” x 20 UNF
M12 x P1.5
1/4” x 18 NPT
M14 x P1.5
1/8” x 27 UPT
M16 x P1.5
R 1/8” DIN
M18 x P1.5


Instruction:
Test by removing oil pressure switch

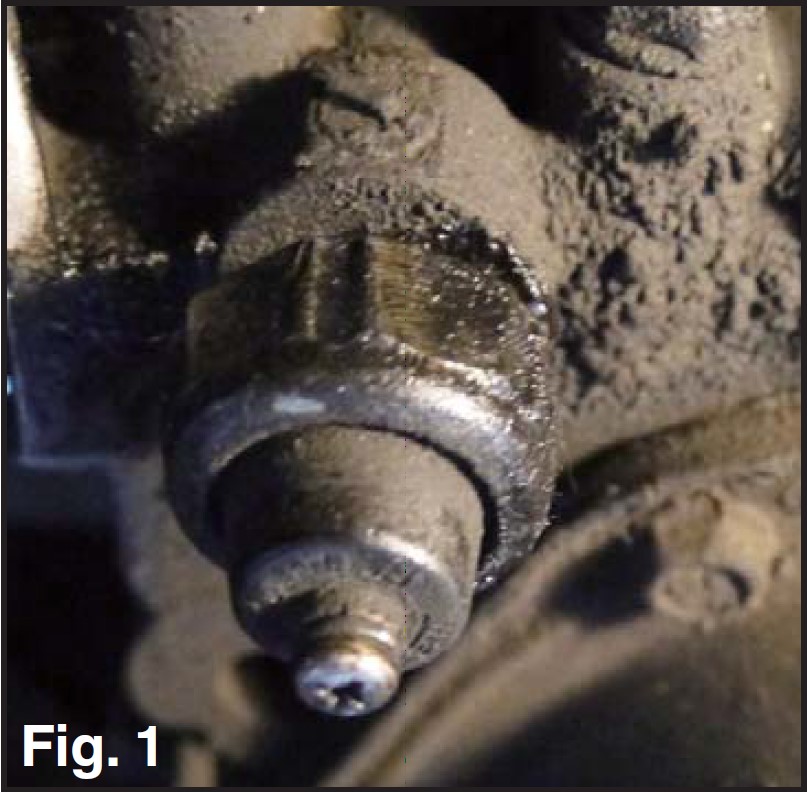

Step 1: Remove oil pressure switch (Fig. 1)
Step 2: Choose a suitable adapter and connect to the oil pressure switch.
Step 3: Connect pressure gauge to the adapter.
Step 4: Turn on the engine to test pressure.
Step 5: Press pressure release button after test is done.


Test with an oil filter canister clamp
Step 1: Take the oil filter canister clamp and place it around the oil filter canister.
This is particularly useful when oil pressure switch is difficult to access.
Step 2: Fasten the bolt on the clamp and the piercer will gradually pierce through the oil filter canister.

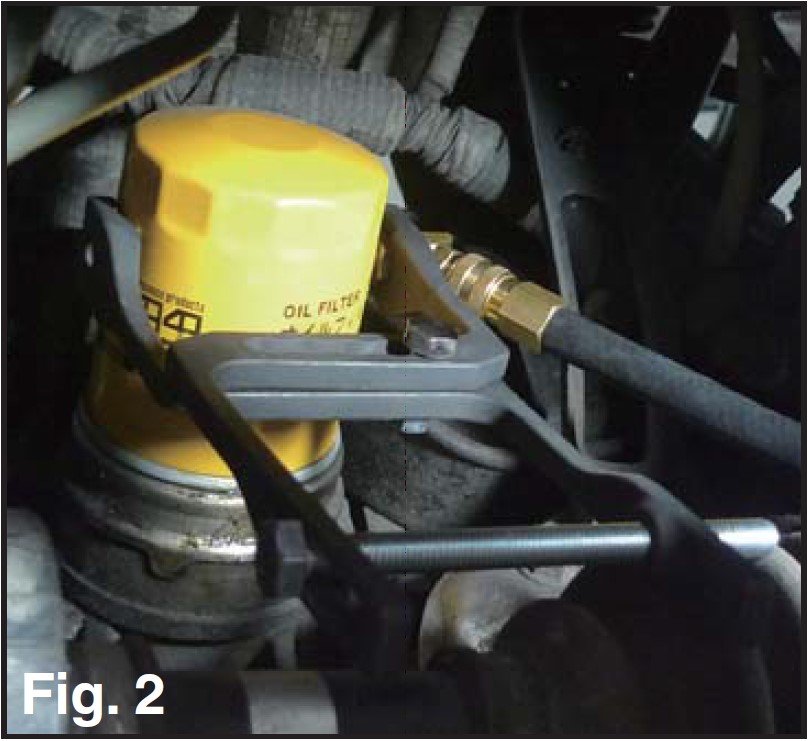

Step 3: Connect pressure gauge to the clamp (Fig. 2).
Step 4: Turn on the engine to test pressure.
Step 5: Press pressure release button after test is done.
