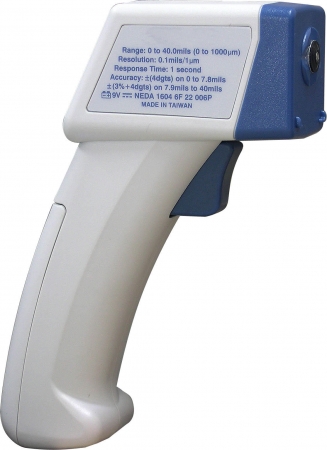

Coating Thickness Gauge





  • 2-point calibration for normal use
  • μm/mils user-selective
  • Display Back-Light Feature
  • Auto power off to save battery life
  • Ferrous and non-ferrous materials measuring
  • Data logging function capacity up to 255 samples
  • Warning beeper triggers by Hi/Lo limit settings
  • On-line display selects AVG, MAX, MIN and MAX-MIN.
  • Fast one point calibration for frequent measuring thickness use
  • Display: 3½ digit liquid crystal display (LCD) with a maximum reading of 1999.
  • Low battery indication: The “” or “” is displayed when the battery voltage drops below the operating level.
  • Operating environment: 0°C to 40°C at<90% R.H.
  • Without strong magnetic field.
  • Storage temperature: -20°C to 60°C, 0 to 80% R.H.
  • with battery removed from meter.
  • Accuracy: Stated accuracy at 23°C±5°C, <75% R.H.
  • Auto power off: 15 seconds.
  • Dimensions: 148mm(H) x 105mm(W) x 42mm(D).

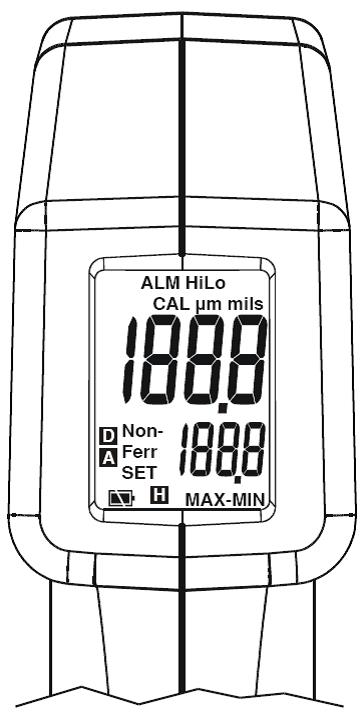

Technical Data Display
Range: 0 to 40.0mils (0 to 1000μm)
Resolution: 0.1mils/1μm
Response Time: 1 second
Accuracy:      ±(4dgts) on 0 to 7.8mils
±(10dgts) on 0 to 199μm
±(3%+4dgts) on 7.9 to 40mils
±(3%+10dgts) on 200 to 1000μm
