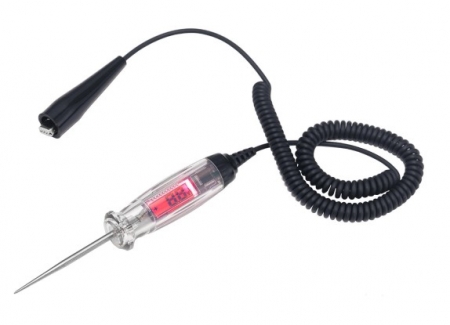

Digital LCD Circuit Tester

Circuit Tester
KA-3424
KA-3424

Model

KA-3424

Specification:

  • Check Voltage : 6, 12, 24V DC
  • Measured Voltage : 5 -30V DC
  • Voltage: 5~30V
  • Resolution: 0.1V
  • Accuracy: ±3%
  • LED indication: Blue(-) / Red(+)
  • Operating temperature: -10~50℃
  • Operating Humidity <80%

Description

  • Digital display to read the accurate voltage value.
  • LED indication for power (Red).
  • Stainless steel testing probe.
  • Spring cable, which is able to extend to 3 meter.
  • Small testing current < 10mA.

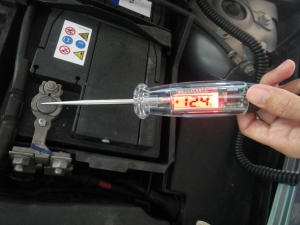

KA-3424 KA-3424A 示意圖
