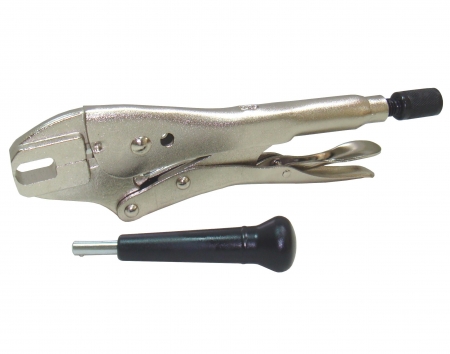

C.V. Boot Clamp Pliers With Torque Drive

CV Boot Tool
KA-2062
KA-2062

Model

KA-2062

Description

  • For tighten stainless steel clamp-bands on CV-boot with the prescribed tightening torques.
  • A 3/8” torque wrench, is required as a drive.
  • Minimum working effort-High time saving.
Operation:

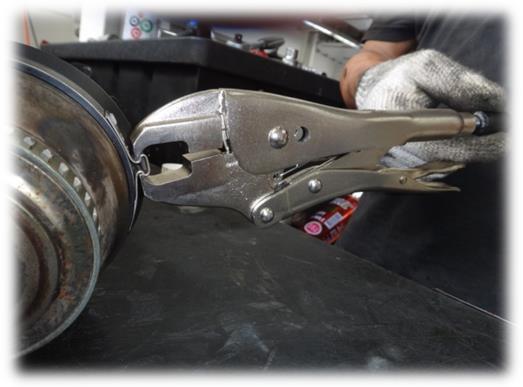

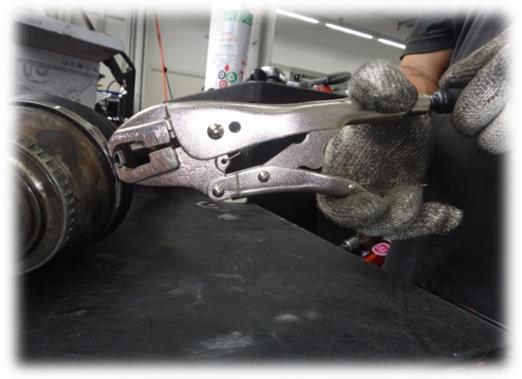

1. Close the jaws on the CV boot clamp.

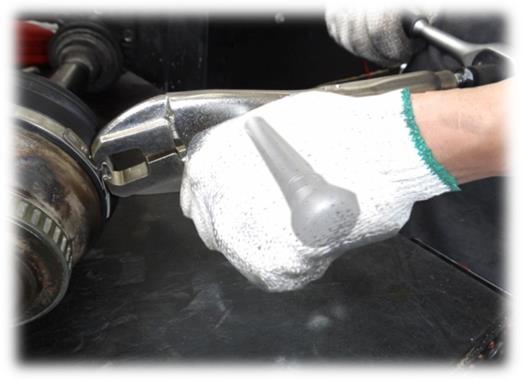

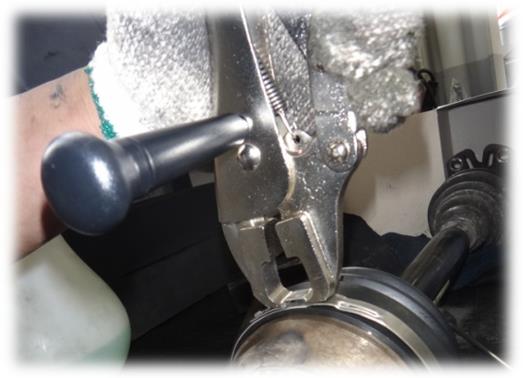

2. Insert assist handle, then use the ratchet to twist the adjustable screw to tighten the ears

3. Open the clamp, then use hand twists a little the adj. screw again.
4. Close the handle again then clamp will be totally tightened.
