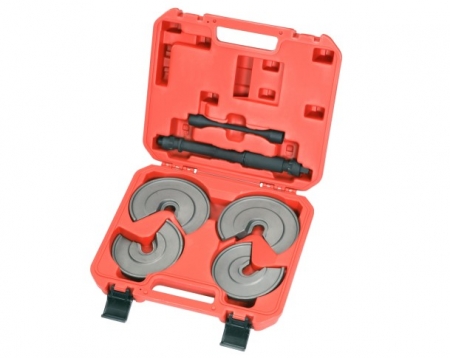

Coil Spring Compressor For Wishbone Suspension

KA-7271
KA-7271

Model

KA-7271

ADD INQUIRY

Description

  • Suitable for lower wishbone diameter size is smaller than 30mm.
  • Provided a 100Nm torque driver.
  • Available for using air impact.
  • Can on car working
  • Wide vehicle applications: BMW, Chrysler, Chevrolet, Ford, VW, Honda, Hyundai, Kia, Mazda, Renault, Peugeot, Citroen, Mitsubishi, Skoda, Suzuki, Toyota, Volvo.
  • Patent pending on three point lock key design.

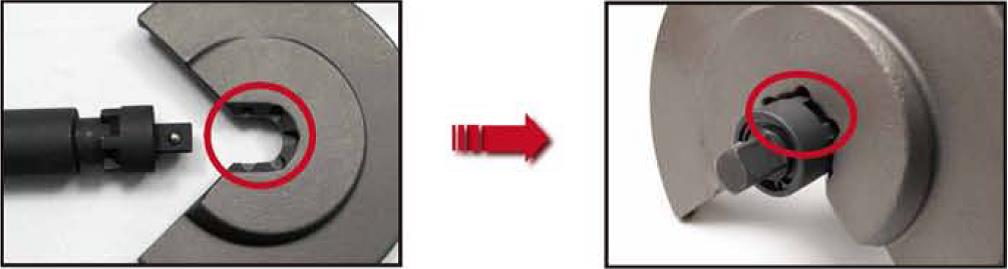

★ The Three point lock key can help to install the spindle and jaw with high safety.


How to use:

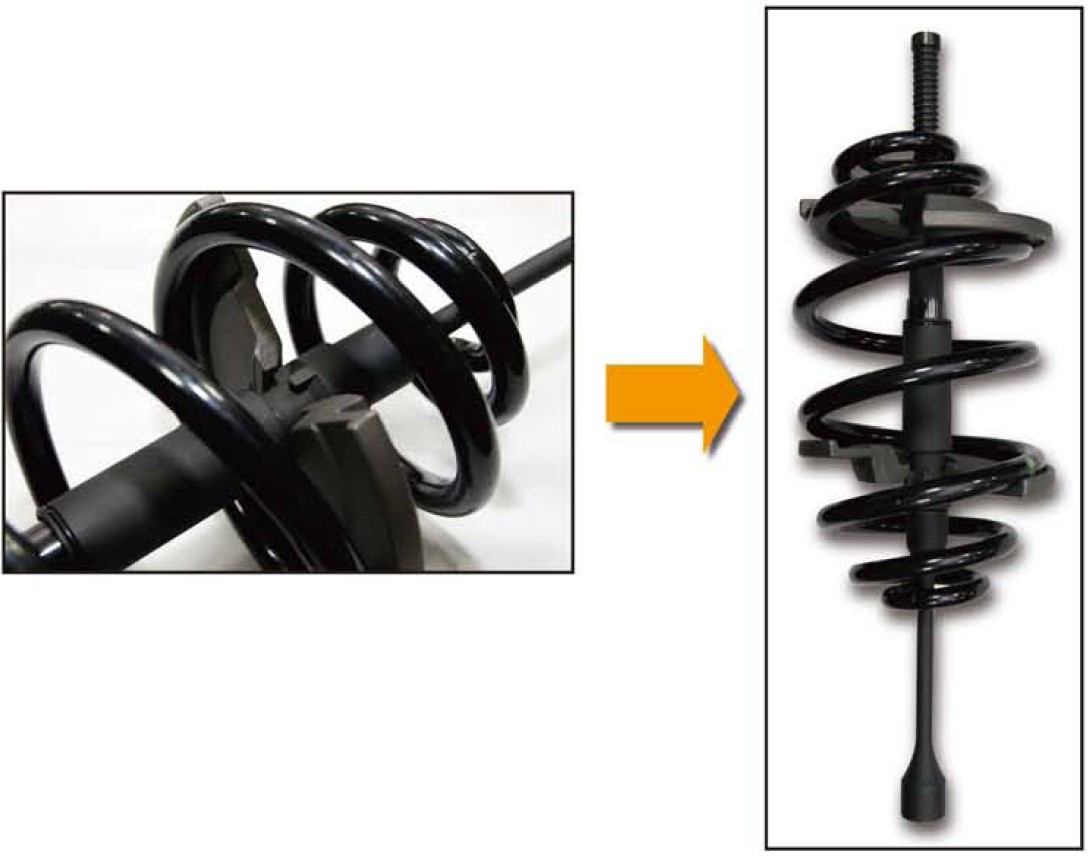

Step 1: Check spring size and choose suitable jaw
Step 2: First connecting one jaw with spring, then install the main spindle through spring
Step 3: Use air impact and 100Nm extension bar to compress the spring
