Description
|
|
Instruction:

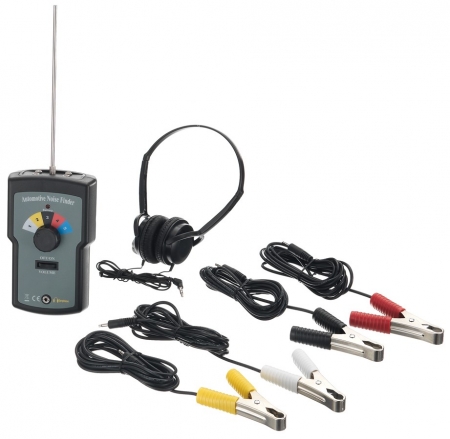

- Plug the head-phone jack, then clip the four different color alligator clips around the defect area of the machine.
- Base on the color and the position of the clips, select the relative channel.
- Switch on the amplifier and tune the volume to hear the sound from the machine.
- Technician can therefore diagnose the machine base on the frequency and the pitch of the sound.
