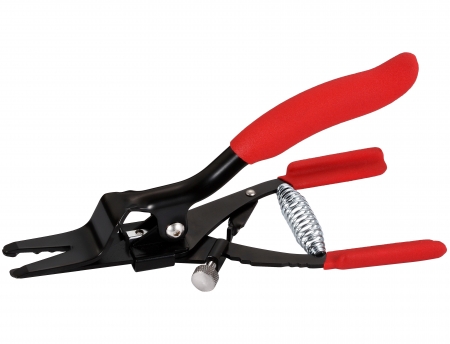

Hose Removal Pliers

KA-7830A
KA-7830A

Model

KA-7830A

ADD INQUIRY

Description

  • Easily disconnects hoses by gripping firmly the tubes/lines.
  • Jaw for 3/16”, 1/4” and 1/8” tubes and lines.
  • Especially suitable for hoses connected to tubes or lines with smooth surface, where exercising pushing force is not possible.
  • Pointed jaw tip allows access to confined spaces.
  • Special locking design enhances secure gripping.
Instructions:
  1. Remove hose clamp on the hose to be disconnected. Insert the jaw tip into the place where hose and tube or line is connected.
  2. Choose a suitable sized groove on jaw tip and grip the tube or line.

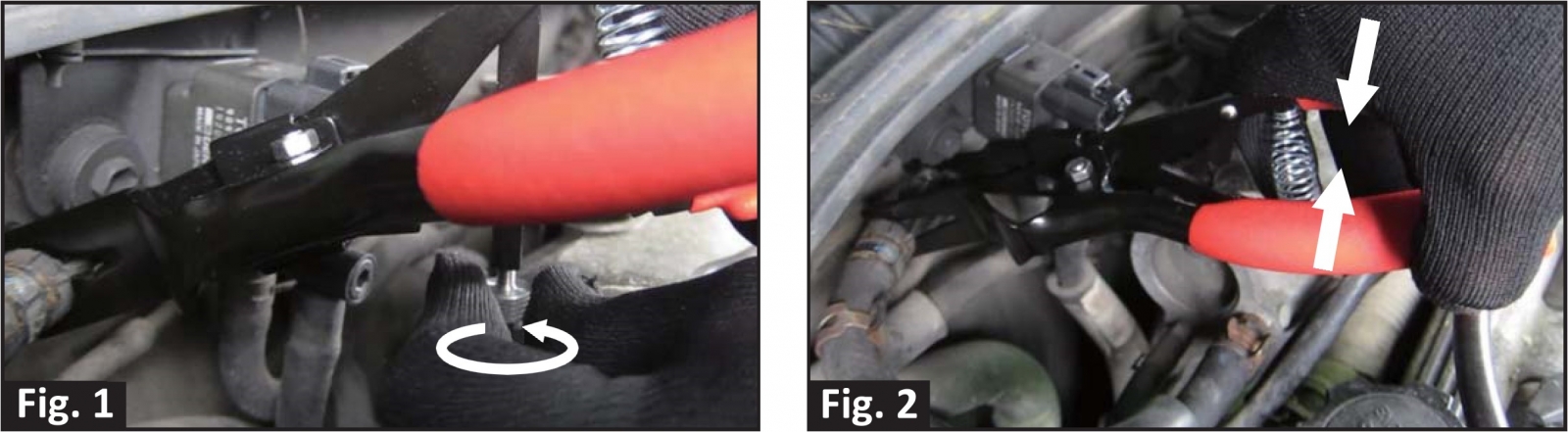

  3. Move the jaw lock doward and fasten the nut on the lock to fix the jaws securely (Fig.1).
  4. Disconnect the hose by pushing the two parts of the pliers towards each other (Fig. 2).
