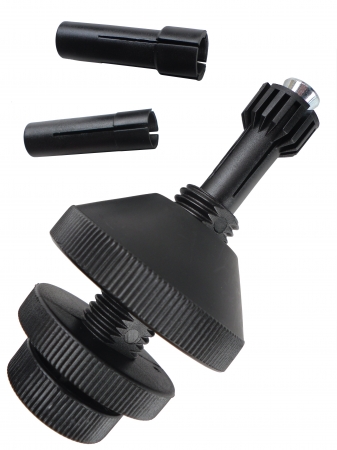

Universal Clutch Aligning Tool

KA-6396
KA-6396

Model

KA-6396

ADD INQUIRY

Description

  • Special design aligns and assembles clutch on the workbench for easy installation. Suit for front wheel drivers that have no pilot bearing in flywheel. Designed for most vehicles up to 5 tons with single plate clutches.
INSTRUCTIONS:
Thread the funnel wheel onto the center body, with ribs facing the same direction as those on the fixed wheel that is the smooth side of the wheel facing away from the fixed wheel. Select the suitable collet, depending on clutch size, and slide onto center shaft. Insert center shaft and collet through center body, and thread small wheel onto the end of the shaft.
