Diesel Injector Remover – Hydraulic Upgrade Kit

KA-4021(1)
KA-4021(1)
KA-4021(2)
KA-4021

Model

KA-4021

ADD INQUIRY

Description

  • Turns all diesel injector removers into 17t hydraulic kits.
  • This set enables the controlled extraction of very tight-fitting or stuck injector nozzles.

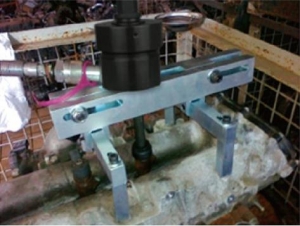

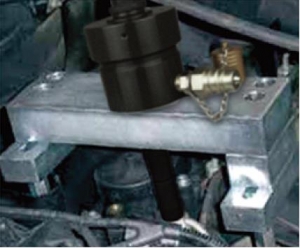

  • It is used in conjunction with a injector nozzle puller with extraction bridge, and a hydraulic pump.
KA-4021(示意圖 1)KA-4021(示意圖 2)

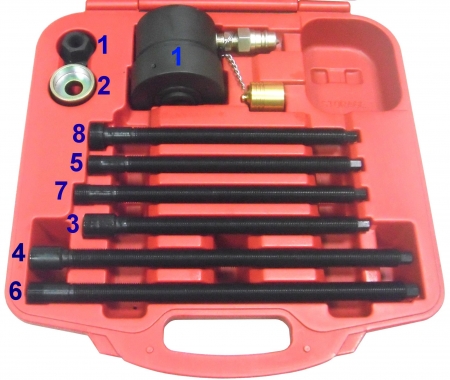

NO. Description Similar to

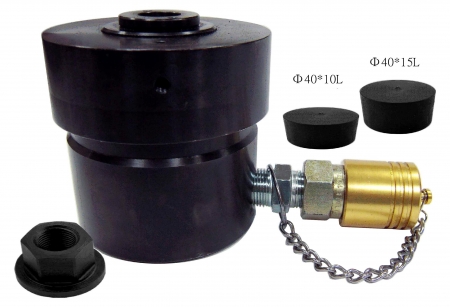

1 Hydraulic Cylinder 17t (with Nut M16 x 1.5) KL-0040-170
2 Spacer Ring KL-0040-1751
3 Pull Spindle M14 x 1.5 (240mm) external thread KL-1383-1113H
4 Pull Spindle M14 x 1.5 (315mm) external thread KL-0583-1032H
5 Pull Spindle M17 x 1.0 (240mm) internal thread KL-0369-4606H
6 Pull Spindle M17 x 1.0 (315mm) internal thread KL-0583-1005H
7 Pull Spindle M18 x 1.5 (250mm) internal thread KL-0186-1711H
8 Pull Spindle M25 x 1.0 (240mm) internal thread KL-1383-1021H
