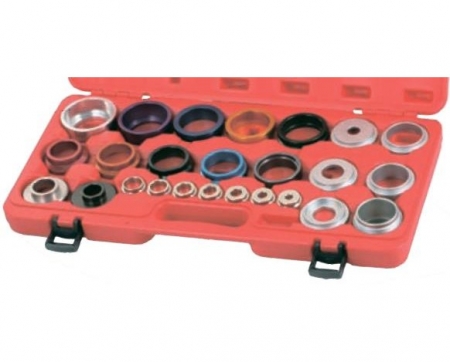

Crankshaft & Camshaft Seal Installer Kit

KA-6971KC
KA-6971KC

Model

KA-6971KC

Description

  • Ideal for both crankshaft and camshaft seal
  • Quick and easy work for installation work
  • Master kit includes wide size seal installers
Contents:
Bolt Attachment: ID: Ø8, Ø10, Ø12, Ø14, Ø16, Ø18, Ø20
Length of Extension Caps: 10, 18, 22, 27mm
Concaved Ø54.5 x Ø24.5
Adjustable Cap: Min. application length: 33mm
Max. application length: 50mm
Seal Attachment: OD: Ø 28, Ø34, Ø42, Ø46, Ø48, Ø49, Ø52, Ø56, Ø58, Ø60, Ø64, Ø68

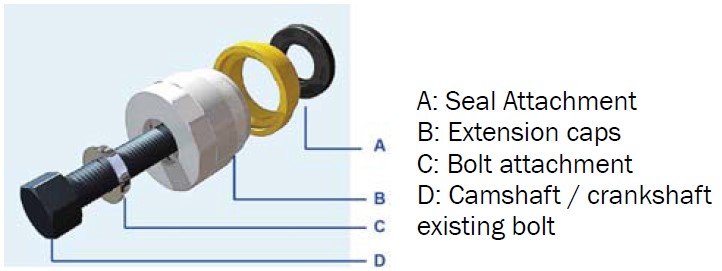

Installation
Step 1: select available cap and attachment
Step 2: Connect existing crankshaft/camshaft bolt with attachment
Step 3: Turn the wrench clockwise and install the seal properly
