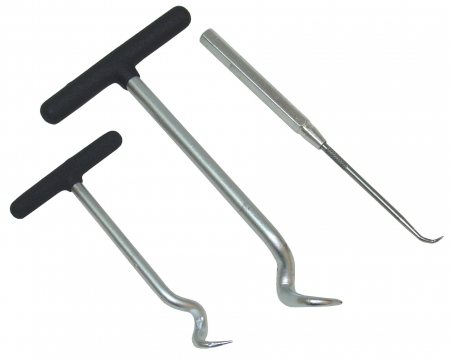

Seal Puller

KA-7227(1)
KA-7227(1)

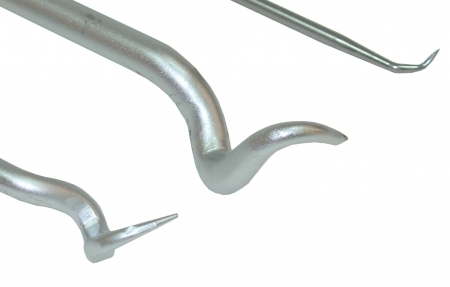

KA-7227(TIP)

Model

KA-7227

Description

  • Quick and easily remove O-Ring or grease and oil seal.
  • Special angle on the tool head provides a better work than traditional seal pullers.
  • 3 different lengths and tips fit nearly all seal applications.
  • Simple insert the tool tips, press and pull.
  • Length: 165, 117, 150mm
Instruction:
1.    For seals, please choose a suitable seal puller from the curved ones.

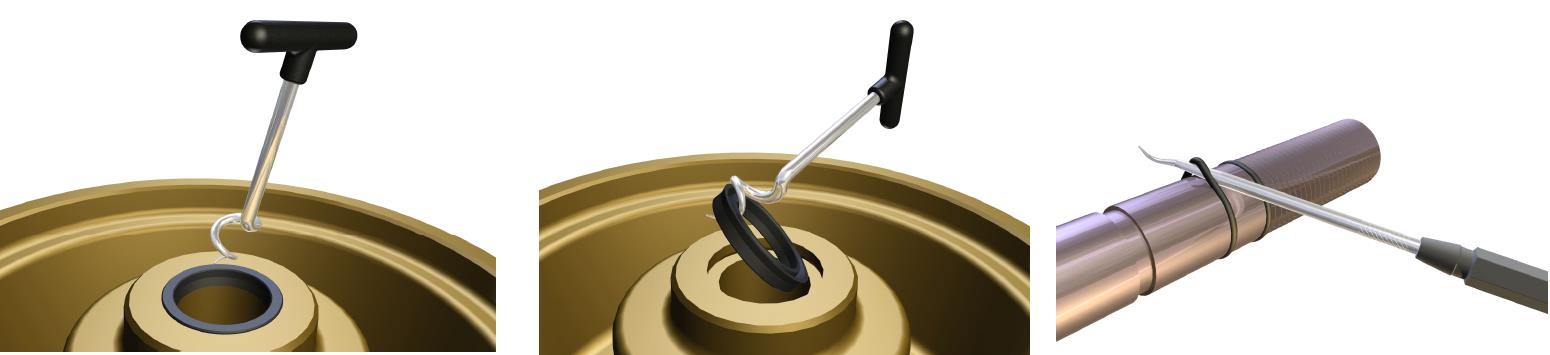

2.    Insert the tip of the tool behind the seal. (Fig. 1)
3.    Simply press, turn and pull the tool head. (Fig. 2) The special angle provides a quick work.
4.    For O-Ring, please choose the pointed one. (Fig. 3)
5.    Insert the tip of O-Ring, simply press and pull to remove the O-Ring.
