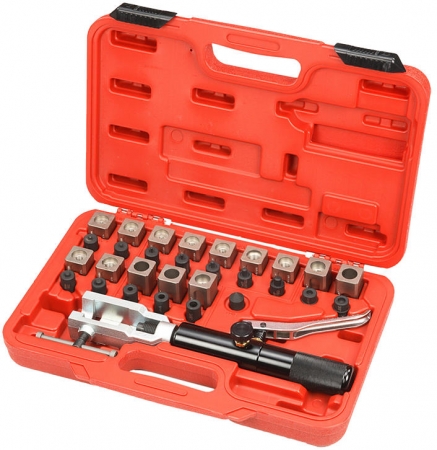

Hydraulic Flaring Tool Kit

Tubing Tools
KA-6979
KA-6979

Model

KA-6979

Specification:

  • This flaring kit includes various sizes of dies and adapters to work on flaring tube of GM fuel line, brake line, transmission line and A/C line.
  • One 45 degree adapter is suitable for working a double flare.
  • A big handle on the hydraulic pump helps save energy.
  • The set is packed with a case for easier and safer storage for dies and adapters.

Description

  • This flaring kit includes various sizes of dies and adapters to work on flaring tube of GM fuel line, brake line, transmission line and A/C line.
  • One 45 degree adapter is suitable for working a double flare.
  • A big handle on the hydraulic pump helps save energy.
  • The set is packed with a case for easier and safer storage for dies and adapters.
detail-1
Name Photo Metric bubble flare Double flare Gm fuel line forming Push-connect forming

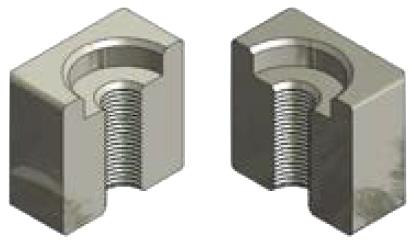

A. Flaring dies 4mm(5/32”),6mm,8mm,10mm 3/16”1/4” 5/16”3/8” 1/2” 5/16” 3/8” 1/4” 5/16”3/8”

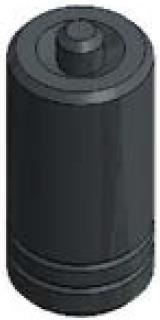

B. Flaring adapter 4mm(5/32”),6mm,8mm,10mm 3/16”1/4” 5/16”3/8” 1/2” 5/16” 3/8” 1/4” 5/16”3/8”
C. 45 flaring
