High-Flow 360° Swivel Universal Air Connector

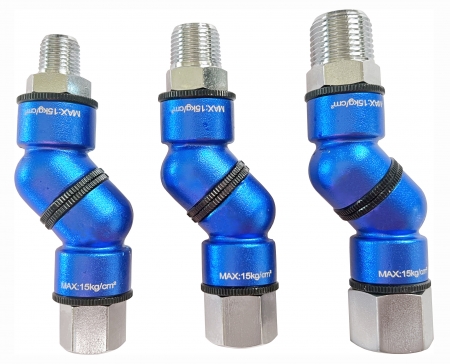

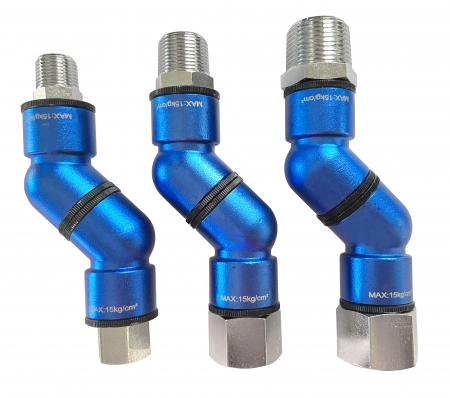

PA-EA series
PA-EA series
PA-EB series

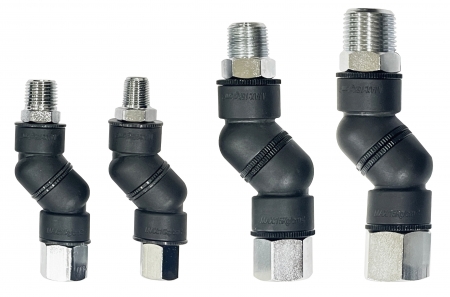

PA-EC series

Model

PA-EA series / PA-EB series / PA-EC series

Specification:

  • Specifically designed to enhance the flexibility and airflow between pneumatic tools and air hoses. It is primarily applied in Body Shops, General Mechanics, and Industrial sectors.
  • Please note: Features and specifications are subject to change without notice.
ADD INQUIRY

Description

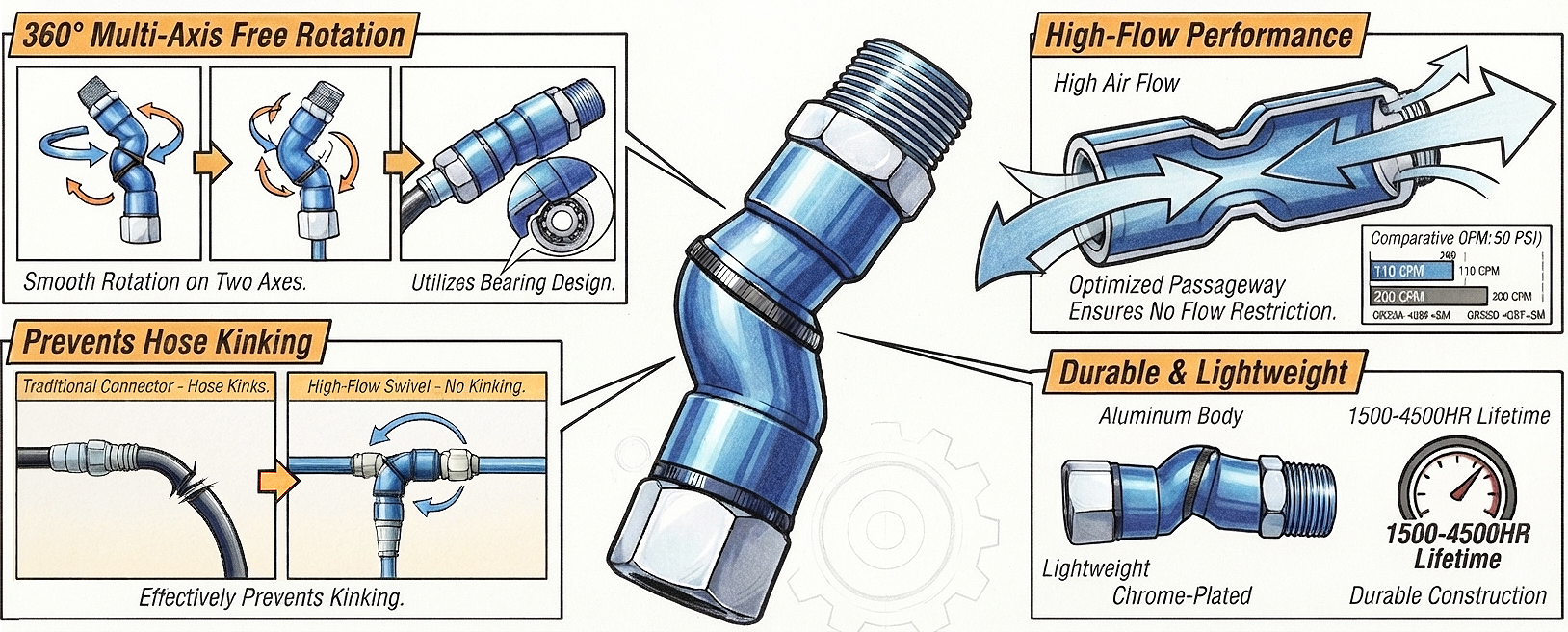

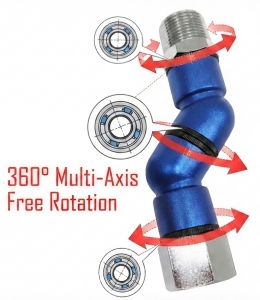

  • 360° Multi-Axis Free Rotation: Utilizing a bearing design, the connector achieves smooth, 360-degree rotation on two axes, effectively preventing hose kinking and reducing operating resistance.
  • High-Flow Design: Compared to traditional or standard swivel connectors on the market, it provides significantly higher airflow, ensuring pneumatic tools maintain optimal speed, power, and RPM.
  • Lightweight and Durability: Built with a chrome-plated aluminum or nylon body combined with 1214L steel, offering an extended lifetime of 1500–4500 hours.

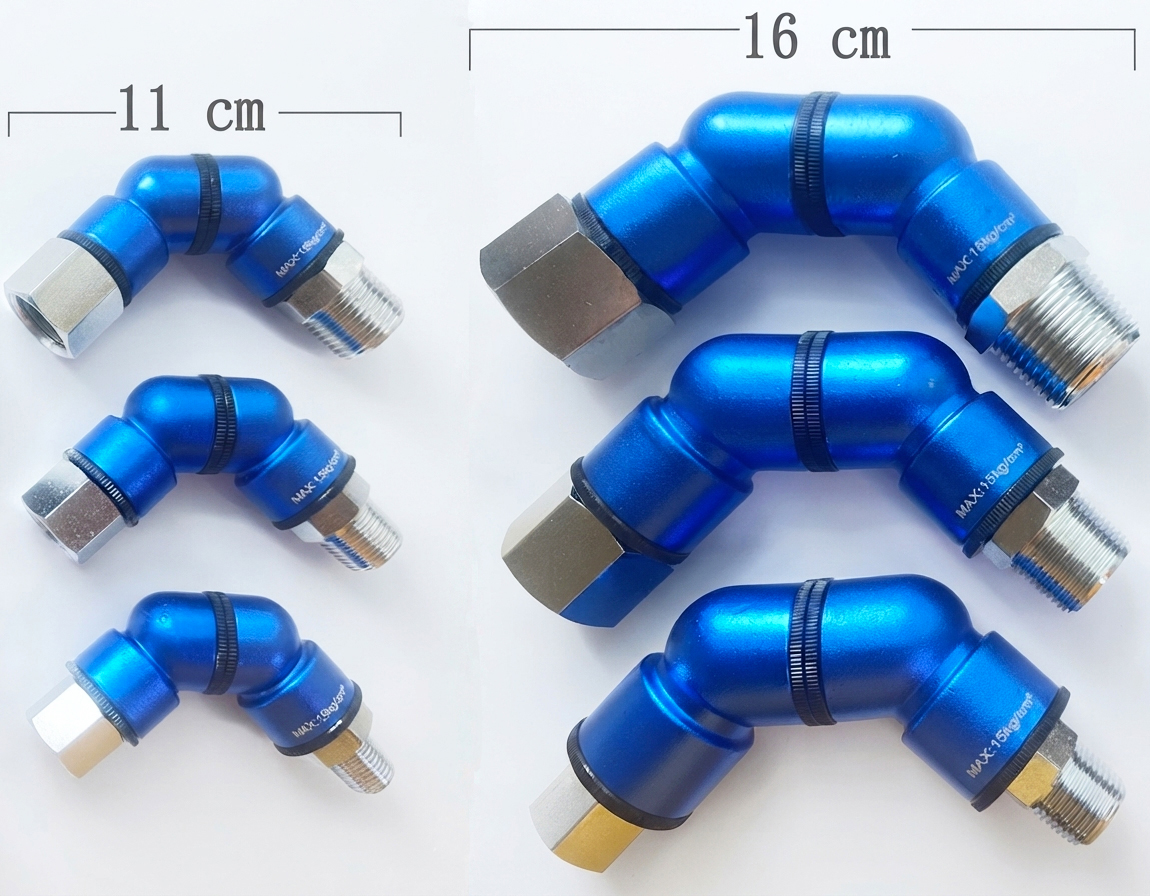

PA-EB (demo)

 Material: Aluminum +1214L with Chrome

  Air inlet Air outlet Length Air Flow Weight

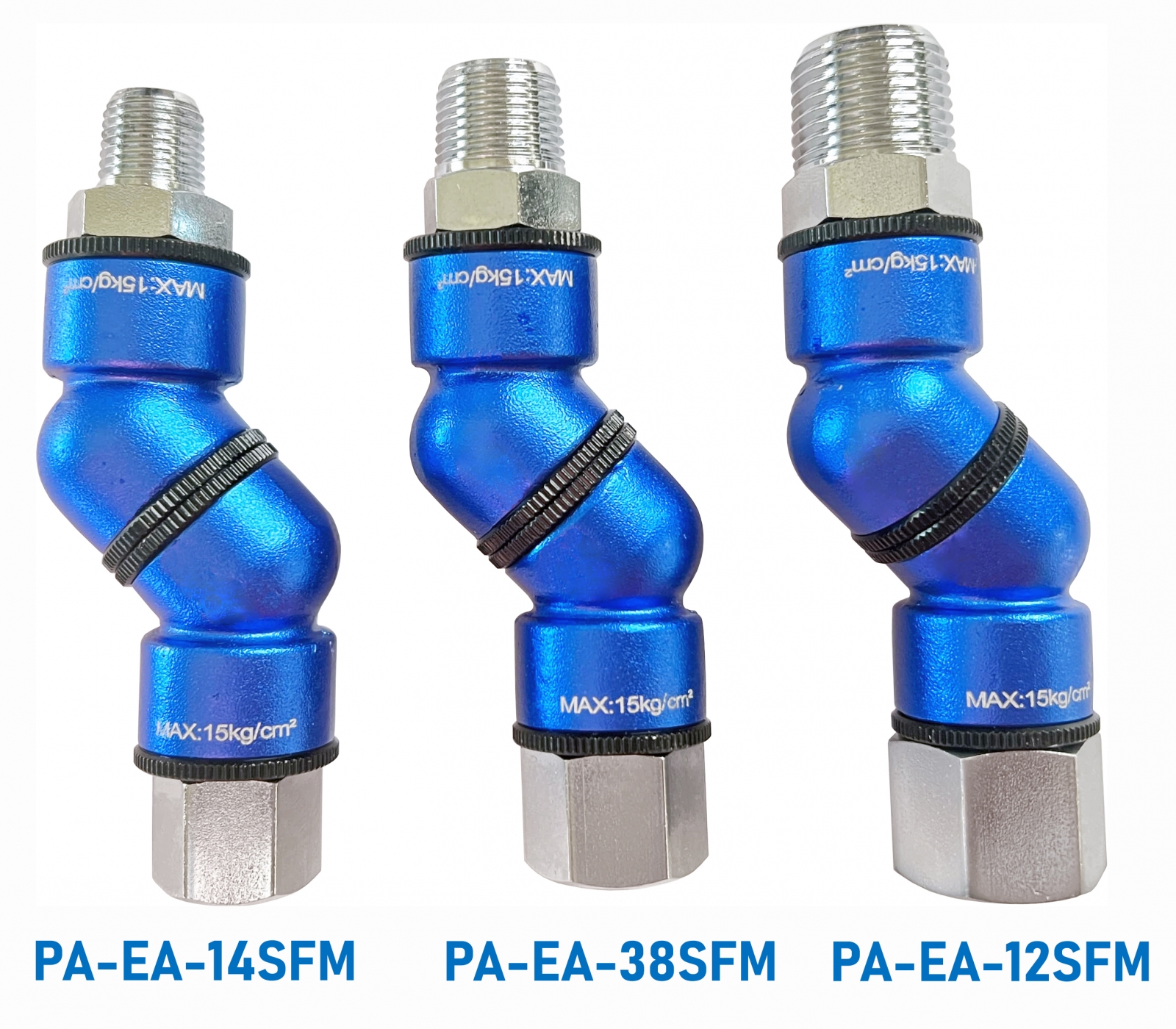

PA-EA-14SFM 1/4” Female 1/4” Male 105mm 90psi /113cfm 166g
PA-EA-38SFM 3/8” Female 3/8” Male 105mm 90psi /128cfm 171g
PA-EA-12SFM 1/2” Female 1/2” Male 110mm 90psi /114cfm 192g

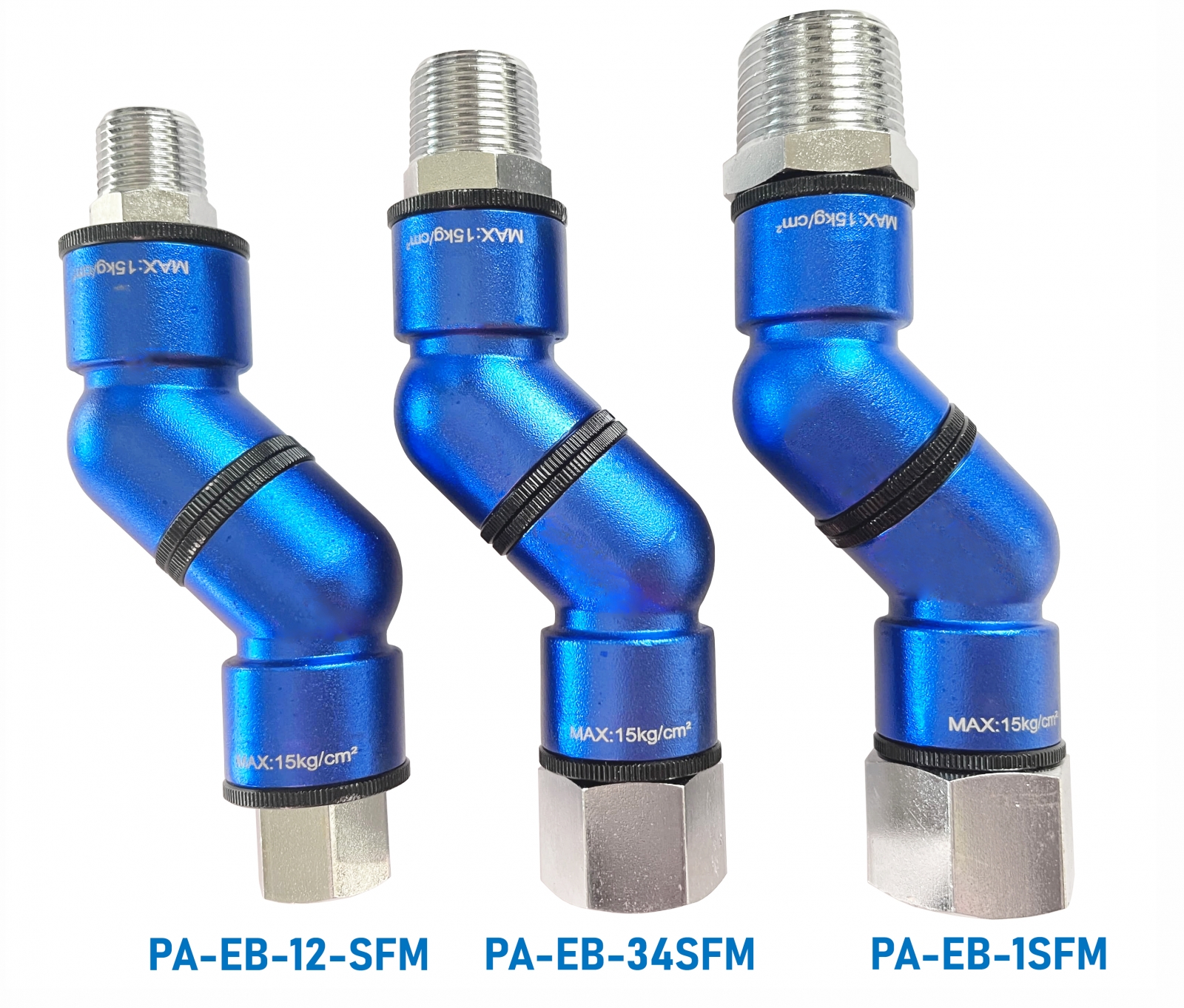

PA-EB-12SFM 1/2” Female 1/2” Male 155mm 90psi /over 220cfm 493g
PA-EB-34SFM 3/4” Female 3/4” Male 160mm 90psi / over 220cfm 585g
PA-EB-1SFM 1” Female 1” Male 170mm 90psi / over 220cfm 636g

 Material: Nylon +1214L with Chrome
  Air inlet Air outlet Length Air Flow Weight

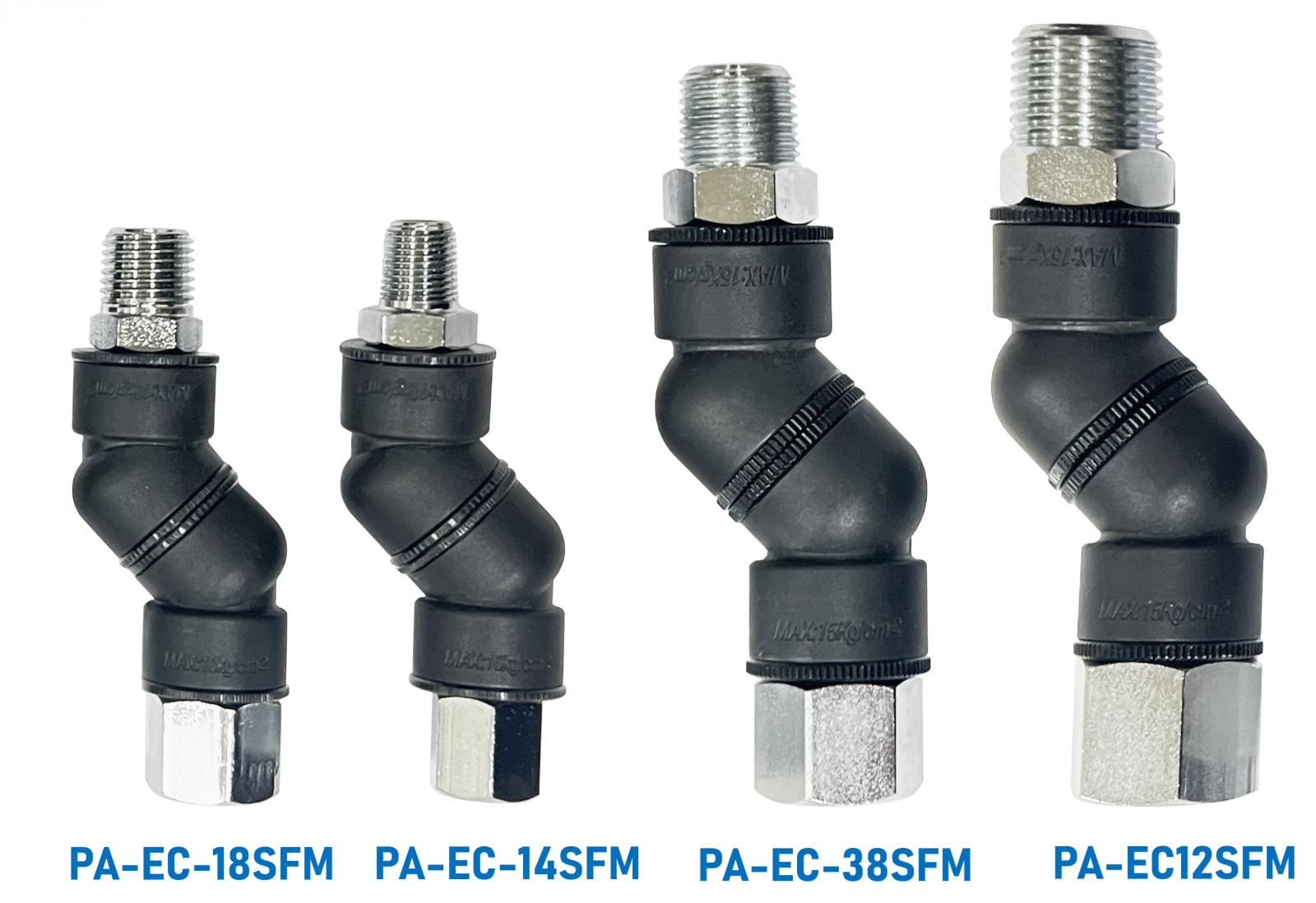

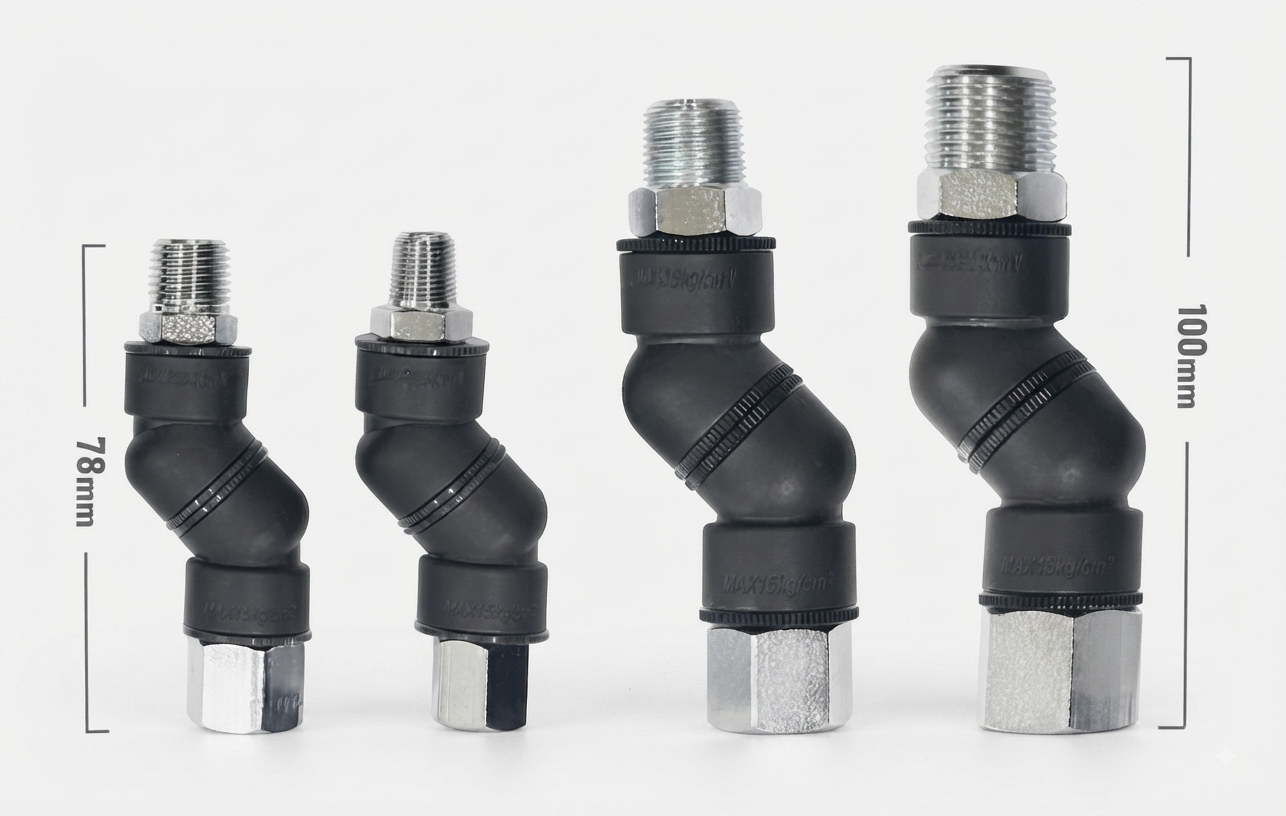

PA-EC-18SFM 1/8” Female 1/8” Male 58mm 90psi /47.8cfm 70g
PA-EC-14SFM 1/4” Female 1/4” Male 78mm 90psi /47.8cfm 76g
PA-EC-38SFM 3/8” Female 3/8” Male 100mm 90psi /75cfm 127g
PA-EC-12SFM 1/2” Female 1/2” Male 107mm 90psi /75cfm 152g
Competitive Advantages：
Compared to major brands on the market, Kingtool’s High-Flow connectors deliver superior performance and reliability:
Superior Airflow Performance
  • Engineered with enlarged internal air passages to maximize flow efficiency.
  • Supports higher CFM output, with select large-bore models exceeding 200 CFM.
  • Effectively eliminates the flow bottlenecks typically found in traditional connectors.
Versatile Power Compatibility
  • Offers a comprehensive range of specifications to suit diverse applications.
  • Fully compatible across the spectrum, from light-duty assembly tools (0.1 HP) to heavy-duty industrial pneumatic equipment (3 HP).
