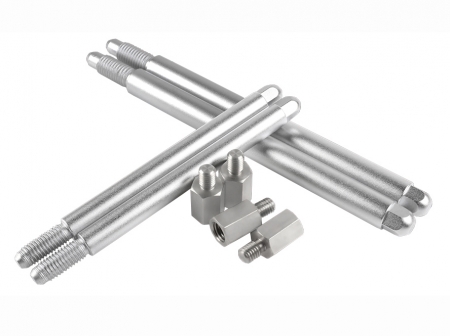

Battery Alignment Rods Kit for Tesla Model 3 / Y

KA-5642
KA-5642
KA-5642 (2)
KA-5642 (demo 1)
KA-5642 (demo 2)

Model

KA-5642

Specification:

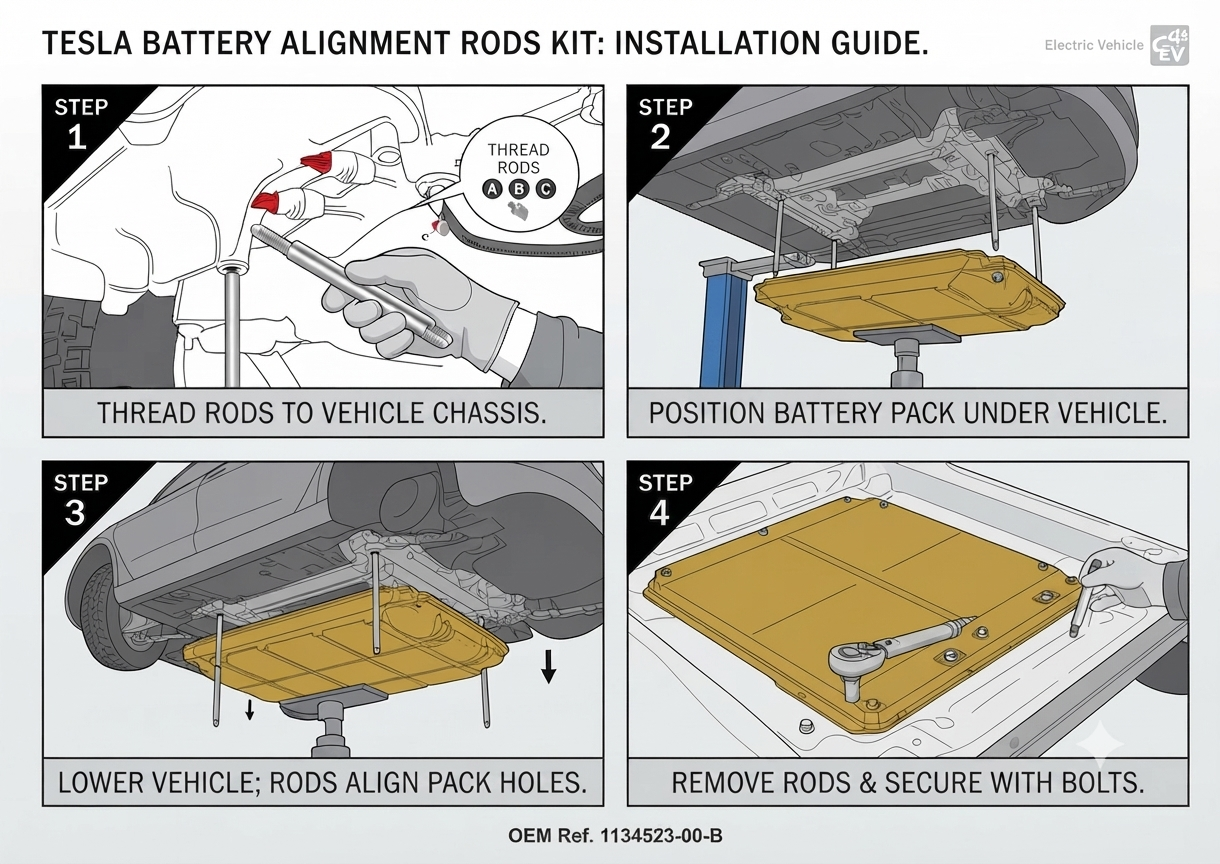

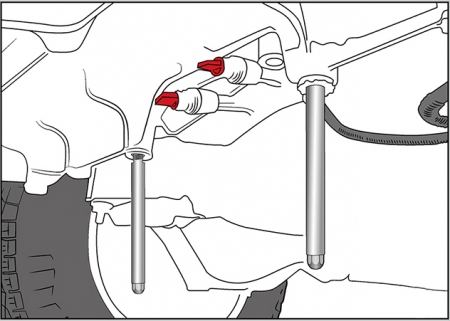

  • Designed specifically for Tesla Model 3 and Model Y, this specialized tool kit simplifies the challenging process of removing and installing heavy high-voltage (HV) battery packs. By serving as a guiding track, these rods eliminate alignment guesswork and protect critical vehicle components.

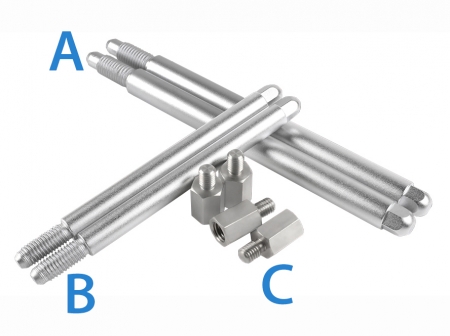

  • A : M12 x 1.75
  • B : M10 x 1.5
  • C : M8 x 1.25
  • OEM Ref. 1134523-00-B
ADD INQUIRY

Description

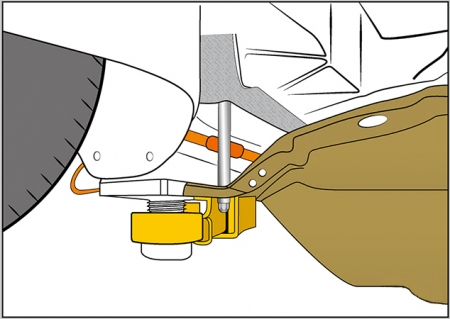

  • Flawless Alignment: Acts as precision guide rails for heavy HV battery packs, eliminating alignment guesswork.
  • Zero-Damage Design: Smooth, threadless guide tips protect expensive factory chassis threads from stripping.
  • One-Man Operation: Transforms a frustrating multi-person task into a safe, efficient, and fast one-man job.

* Please note: Features and specifications are subject to change without notice.
