Safety Air Coupler
Model
PA-N45

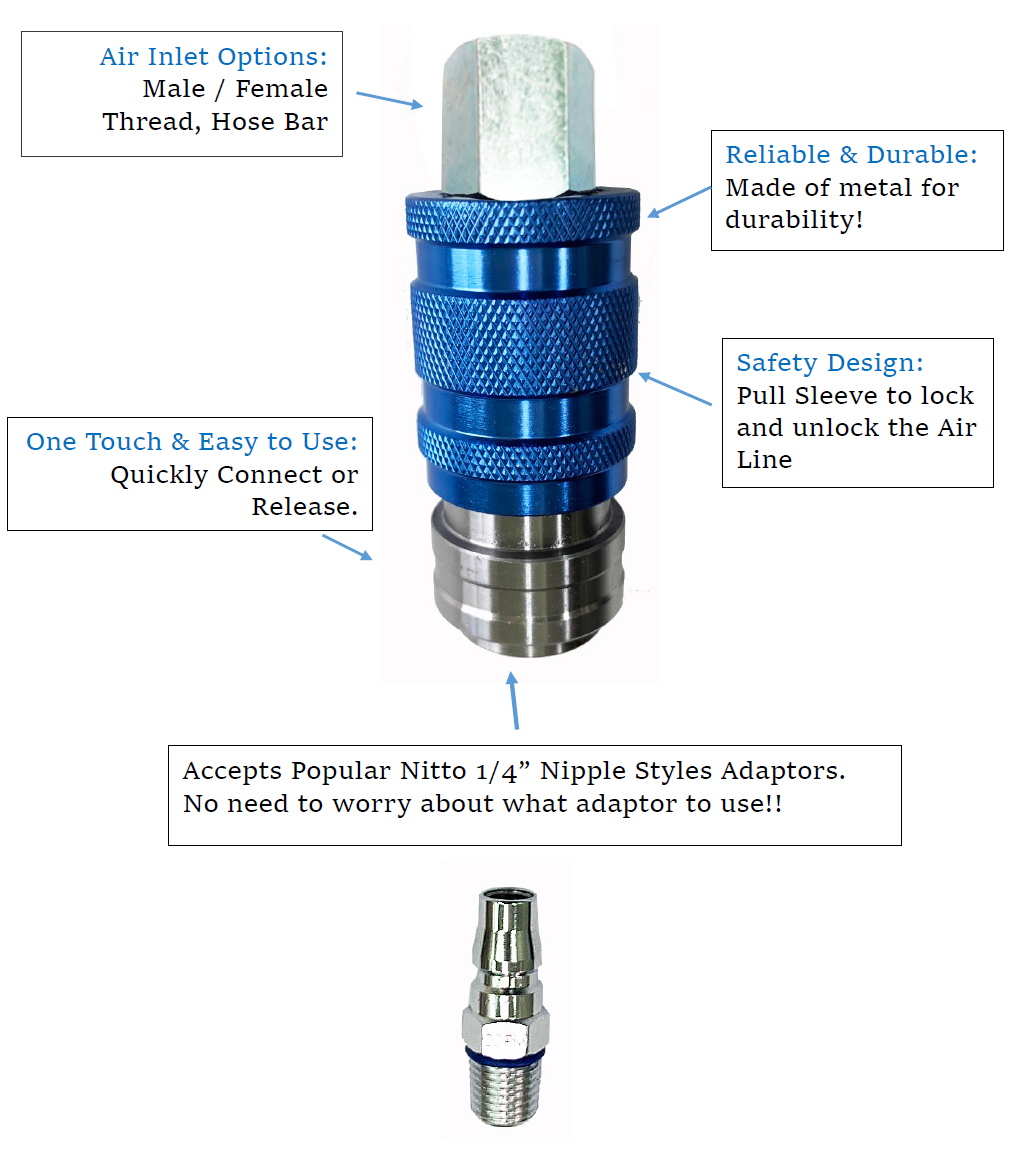

Specification:
- Safety Sleeve to Lock and Unlock the Air Line !
- Safey Coupler fits Nitto Type Adaptor.
- One-Touch to Release the Air Pressure safely!
- No need to worry about changing the coupler anymore.

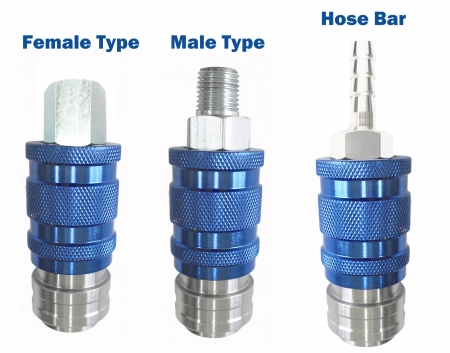

Safety Air Coupler – Male Type
Safety Air Coupler – Female Type
Safety Air Coupler – Hose Bar
| Item No | Air Flow | Max Pressure | Air Inlet | Weight | Material |
|---|---|---|---|---|---|
| PA-N45-20SM-14 | 90 PSI 41.5 CFM |
150 PSI 10 kgf/cm2 |
1/4” NPT Male | 122 g | Chrome Plated 12L14 Steel. Anodized Aluminum Ring |
| PA-N45-30SM-38 | 90 PSI 42 CFM |
150 PSI 10 kgf/cm2 |
3/8” NPT Male | 129 g | |
| PA-N45-40SM-12 | 90 PSI 42.4 CFM |
150 PSI 10 kgf/cm2 |
1/2” NPT Male | 143 g |
Safety Air Coupler – Female Type
| Item No | Air Flow | Max Pressure | Air Inlet | Weight | Material |
|---|---|---|---|---|---|
| PA-N45-20SF-14 | 90 PSI 36.3 CFM |
150 PSI 10 kgf/cm2 |
1/4” NPT Female | 132 g | Chrome Plated 12L14 Steel. Anodized Aluminum Ring |
| PA-N45-30SF-38 | 90 PSI 40.8 CFM |
150 PSI 10 kgf/cm2 |
3/8” NPT Female | 139 g | |
| PA-N45-40SF-12 | 90 PSI 43.2 CFM |
150 PSI 10 kgf/cm2 |
1/2” NPT Female | 147 g |
Safety Air Coupler – Hose Bar
| Item No | Air Flow | Max Pressure | Air Inlet | Weight | Material |
|---|---|---|---|---|---|
| PA-N45-20SH-9 | 90 PSI 34.6CFM |
150 PSI 10 kgf/cm2 |
9mm Hose Bar | 122 g | Chrome Plated 12L14 Steel. Anodized Aluminum Ring |
| PA-N45-40SH-11 | 90 PSI 41.4 CFM |
150 PSI 10 kgf/cm2 |
11mm Hose Bar | 124 g | |
| PA-N45-40SH-145 | 90 PSI 42.7CFM |
150 PSI 10 kgf/cm2 |
14.5mm Hose Bar | 135 g |
How to use PA-N45 Series Coupler for Nitto Type Adaptor
