6-in-1 Safety Air Coupler

PA-C45 series
PA-C45 series

Model

PA-C45 series

Specification:

  • Safety Coupler fits Six(6) Types of Adaptors !
  • Safety Sleeve to Lock and Unlock the Air Line !
  • One Coupler fits 6 Types of Adaptors (NW7.2, NW5.5, Aro210, NW5.5 Orion, Lincoln)
  • One-Touch to Release the Air Pressure safely!
  • No need to worry about changing the coupler anymore.
ADD INQUIRY

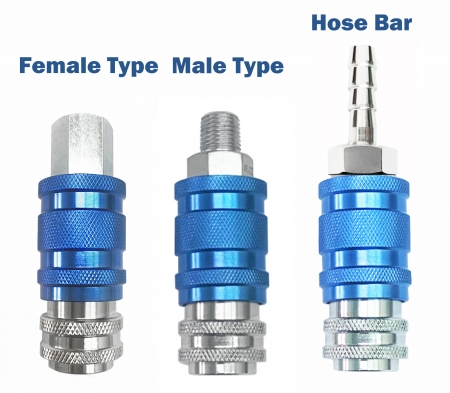

6-in-1 Safety Air Coupler - Male Type
Item No Air Flow Max Pressure Air Inlet Weight Material
PA-C45-20SM-14 90 PSI
41.5 CFM		 150 PSI
10 kgf/cm2		 1/4” NPT Male 122 g Chrome Plated 12L14 Steel.

Anodized Aluminum Ring

PA-C45-30SM-38 90 PSI
42 CFM		 150 PSI
10 kgf/cm2		 3/8” NPT Male 129 g
PA-C45-40SM-12 90 PSI
42.4 CFM		 150 PSI
10 kgf/cm2		 1/2” NPT Male 143 g

6-in-1 Safety Air Coupler – Female Type
Item No Air Flow Max Pressure Air Inlet Weight Material
PA-C45-20SF-14 90 PSI
36.3 CFM		 150 PSI
10 kgf/cm2		 1/4” NPT Female 132 g Chrome Plated 12L14 Steel.

Anodized Aluminum Ring

PA-C45-30SF-38 90 PSI
40.8 CFM		 150 PSI
10 kgf/cm2		 3/8” NPT Female 139 g
PA-C45-40SF-12 90 PSI
43.2 CFM		 150 PSI
10 kgf/cm2		 1/2” NPT Female 147 g

6-in-1 Safety Air Coupler – Hose Bar
Item No Air Flow Max Pressure Air Inlet Weight Material
PA-C45-20SH-9 90 PSI
34.6CFM		 150 PSI
10 kgf/cm2		 9mm Hose Bar 122 g Chrome Plated 12L14 Steel.

Anodized Aluminum Ring

PA-C45-40SH-11 90 PSI
41.4 CFM		 150 PSI
10 kgf/cm2		 11mm Hose Bar 124 g
PA-C45-40SH-145 90 PSI
42.7CFM		 150 PSI
10 kgf/cm2		 14.5mm Hose Bar 135 g

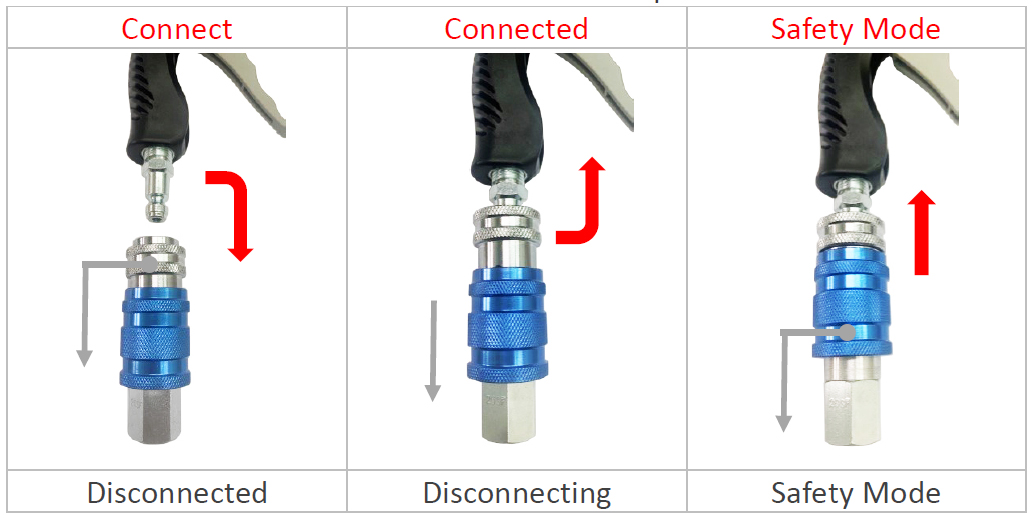

How to use European Market PA-C45 Series Coupler
