Multi-Profile Safety Air Coupler

PA-B45 series
PA-B45 series
Hose
Thread Options

Model

PA-B45 Series

Specification:

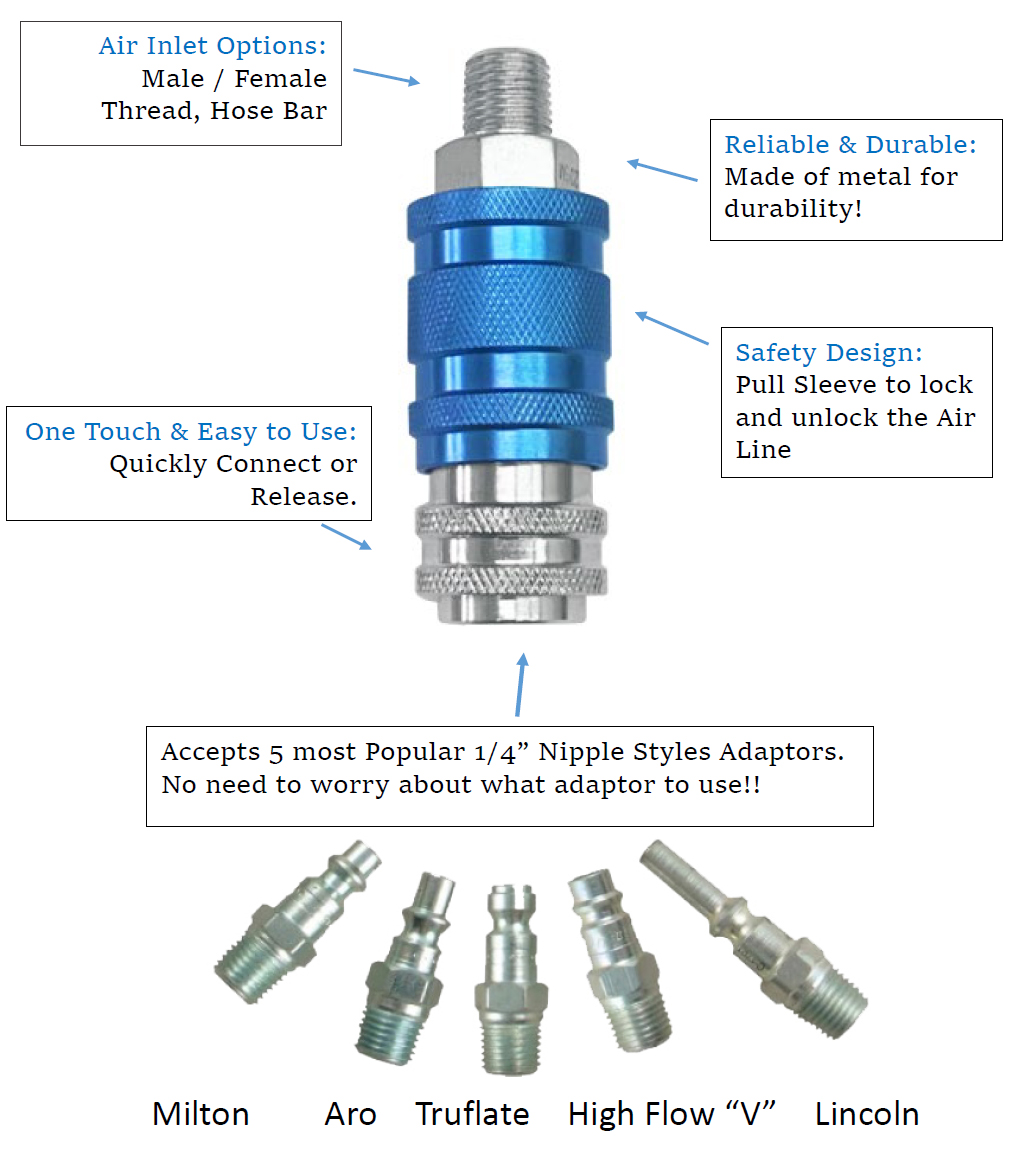

  • One Coupler fits Multiple Adaptors!
  • Multiple plug profiles. Twist-lock Collar with durability up to 100,000 Operating Cycles
  • Safety Collar to Lock and Unlock the Air Line!
  • Twist-lock Collar helps prevent unintended Collar movement during use.
  • One Coupler fits American & European Market adaptors!

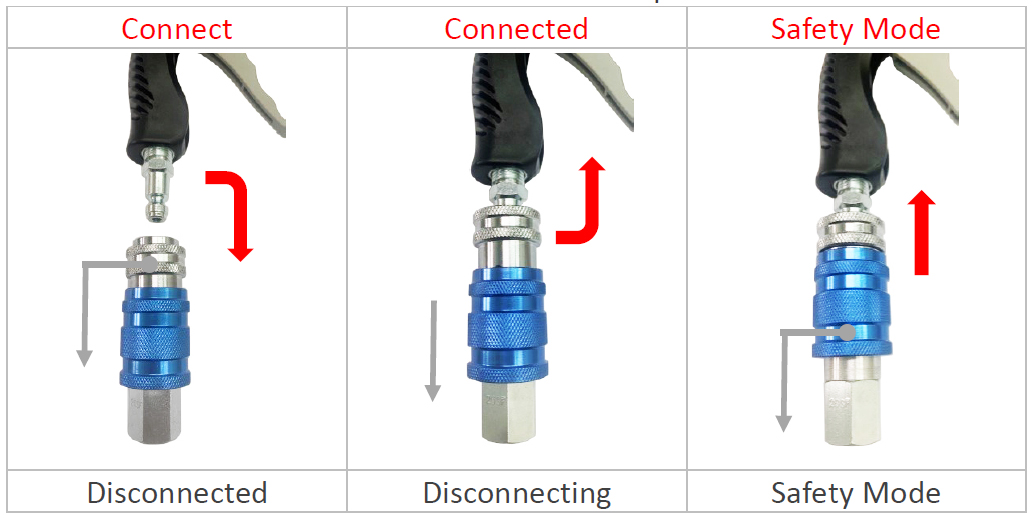

  • One-Touch Quick Connection and Disconnection. Release the Air Pressure safely!
  • No need to worry about changing the coupler anymore

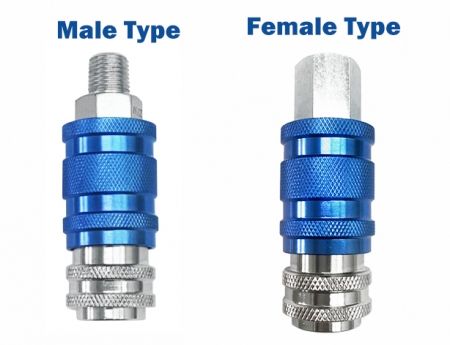

5-in-1 Safety Air Coupler –
Male Type
Item No Air Flow Max Pressure Air Inlet Weight Material

PA-B45-20SM-14
90 PSI
41.5 CFM
150 PSI
10 kgf/cm2
1/4” NPT Male 122 g Chrome Plated 12L14 Steel.

Anodized Aluminum Ring


PA-B45-30SM-38

90 PSI
42 CFM
150 PSI
10 kgf/cm2
3/8” NPT Male 129 g

PA-B45-40SM-12
90 PSI
42.4 CFM
150 PSI
10 kgf/cm2
1/2” NPT Male 143 g

5-in-1 Safety Air Coupler – Female Type
Item No Air Flow Max Pressure Air Inlet Weight Material

PA-B45-20SF-14
90 PSI
36.3 CFM
150 PSI
10 kgf/cm2
1/4” NPT Female 132 g Chrome Plated 12L14 Steel.

Anodized Aluminum Ring


PA-B45-30SF-38

90 PSI
40.8 CFM
150 PSI
10 kgf/cm2
3/8” NPT Female 139 g

PA-B45-40SF-12
90 PSI
43.2 CFM
150 PSI
10 kgf/cm2
1/2” NPT Female 147 g
