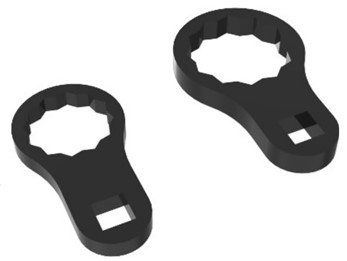

Ball Joint Wrench Set for Benz
Model
KA-5592
Specification:
- Loosen and Lock the Upper and Lower Ball Joint Nuts on Benz
- The Bi-Hex (12 PT) Crows Foot Ring let the ball joint pin kept in place

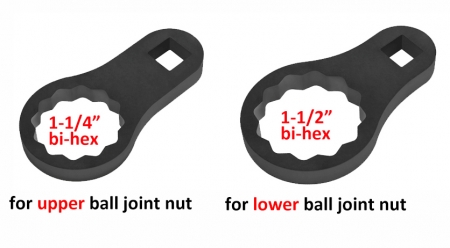

- Features: Bi-Hex (12pt). Upper nut: 32mm; Lower nut: 38mm.
- Low profile design, 1/2"D.
- Application: Mercedes-Benz models with double wishbone suspension from 2015 including: E class (2015 to 2021),C class (2015 to 2021), AMG GT (2019 to 2021) ,GL (2016 to 2021).
Application:
| 1-1/4” bi-hex | ||
|---|---|---|
| C300 | 2.0L L4 | 2015~2020 |
| C350e | 2.0L L4 | 2016~2018 |
| C400 | 3.0L V6 | 2015 |
| C450 AMG | 3.0L V6 | 2016 |
| C43 AMG | 3.0L V6 | 2017~2021 |
| C63 AMG | 4.0L V8 | 2016~2021 |
| C63 AMG S | 4.0L V8 | 2015~2021 |
| CLS450 | 3.0L L6 | 2019~2021 |
| CLS53 | 3.0L L6 | 2019~2021 |
| E300 | 2.0L L4 | 2017~2019 |
| E350 | 2.0L L4 | 2020 |
| E400 | 3.0L V6 | 2015~2018 |
| E450 | 3.0L V6 | 2019~2020 |
| E43 AMG | 3.0L V6 | 2017~2018 |
| E53 AMG | 3.0L V6 | 2019~2021 |
| E63 AMG S | 4.0L V8 | 2018~2020 |
| GL C300 | 2.0L L4 | 2016~2021 |
| GL C350e | 2.0L L4 | 2018~2021 |
| GLC43 AMG | 3.0L V6 | 2017~2020 |
| GLC63 AMG | 4.0L V8 | 2018~2020 |
| GLC63AMG S | 4.0L V8 | 2018~2020 |
| GT53 AMG | 3.0L L6 | 2019~2021 |
| GT63 AMG | 4.0L V8 | 2019~2021 |
| GT63 AMG S | 4.0L V8 | 2019~2021 |
| 1/1/2” bi-hex | ||
|---|---|---|
| C400 | 3.0L V6 | 2015 |
| C450 AMG | 3.0L V6 | 2016 |
| C43 AMG | 3.0L V6 | 2017~2021 |
| CLS53 AMG | 3.0L L6 | 2019~2021 |
| E43 AMG | 3.0L V6 | 2017~2018 |
| E53 AMG | 3.0L L6 | 2019~2021 |
| GLC43 AMG | 3.0L V6 | 2017~2020 |
| GLC63 AMG | 4.0L V8 | 2018~2020 |
| GLC63 AMG S | 4.0L V8 | 2018~2020 |
| GLE350 | 2.0L L4 | 2020~2021 |
| GLE450 | 3.0L L6 | 2020~2021 |
| GLE580 | 4.0L V8 | 2020 |
| GLS450 | 3.0L L6 | 2020~2021 |
| GLS580 | 4.0L V8 | 2020~2021 |
| GLS600 Maybach | 4.0L V8 | 2021 |
