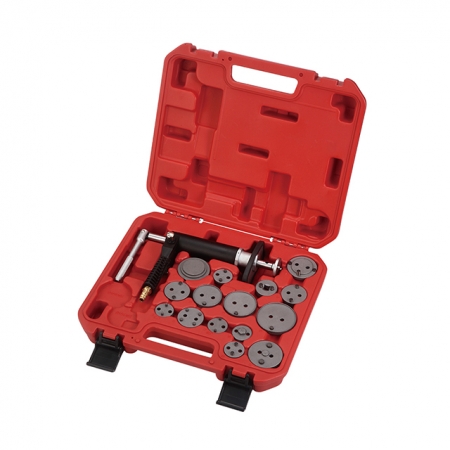

Air Powered Brake Caliper Wind Back Tool Set - Nylon Housing

KA-2714KC
KA-2714KC

Model

KA-2714KC

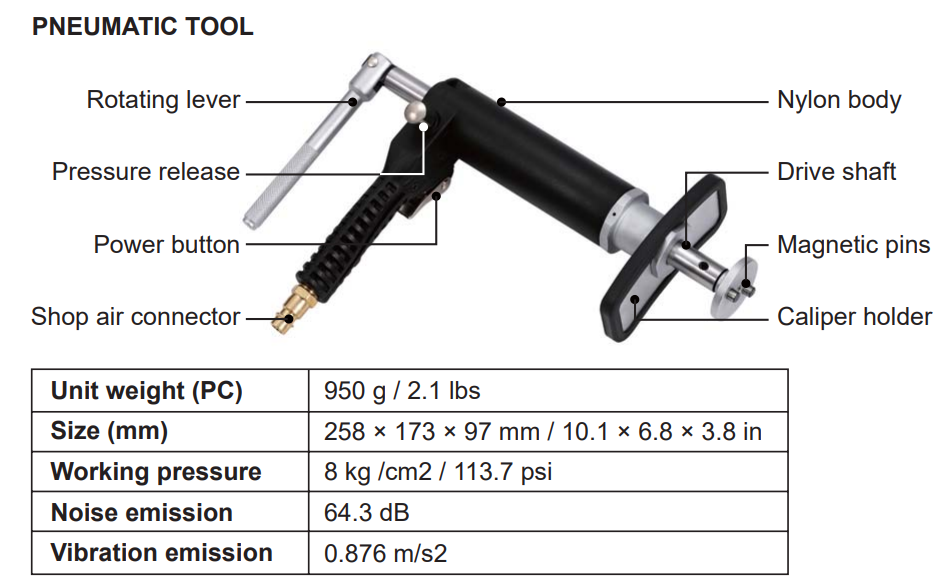

Specification:

  • Nylon Housing, Lighter Weight.
  • Designed to make disc brake services faster and energy saving.
  • Tool can be turned left- and right-ward - suitable for regular and reverse-threaded pistons.
  • Pneumatic powered tool is able to wind pistons back simply pressing a button.
  • Includes 15 adapters, fitting a wide range of vehicles.
ADD INQUIRY
See Operation Video

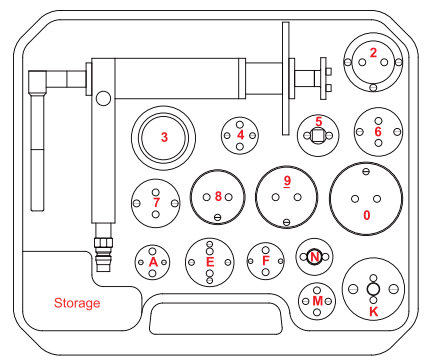

Content:

ADAPTERS PNEUMATIC TOOL
Number 0, 2, 3, 4, 5, 6, 7, 8, 9, A, E, F, K, M, N


Material S45C

Surface finish Phosphate

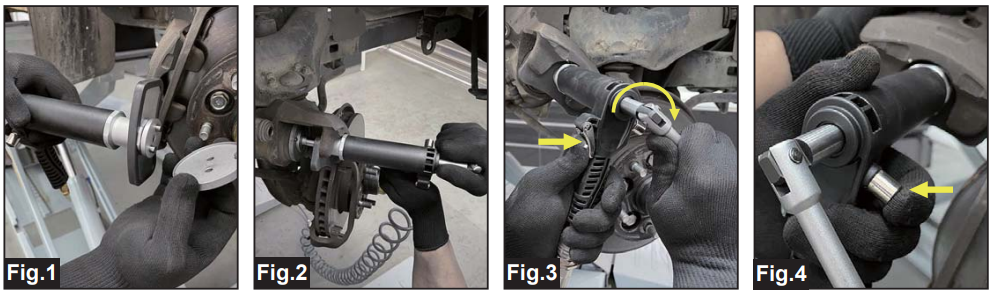

Operation:
  1. Choose a suitable adapter.
  2. Connect the adapter to the magnetic pins on the pneumatic tool tip (Fig. 1).
  3. Connect the pneumatic tool to shop air line.
  4. Press pressure release button and turn the rotating lever to adjust the length.
  5. Mount the pneumatic tool to the brake caliper (Fig. 2).
  6. Press power button to fix the tool on the brake caliper.
  7. Make sure the tool is securely installed on the brake caliper.
  8. Press power button continually and turn the rotating lever to wind back the brake piston (Fig. 3).
  9. After the piston is winded back to the proper position, press pressure release button to remove the pneumatic tool from the brake caliper (Fig. 4)
