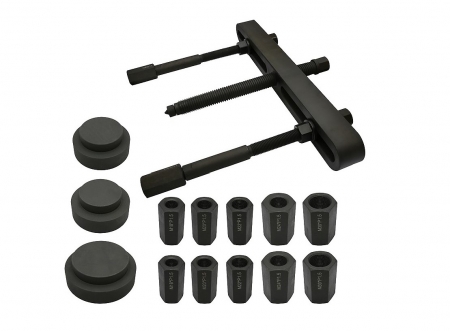

Universal Wheel Hub Extractor for Truck
Model
KA-2088B
Specification:
- KA‐2088B is the Master Wheel Hub Extractor for Japanese Truck (HINO, FUSO)
- KA‐2088B is the Master Wheel Hub Extractor for European Trucks (Scania, Sauer, BPW..etc)
- The Clearance between Puller Bolts: From 110mm P.C.D. to 448mm P.C.D.

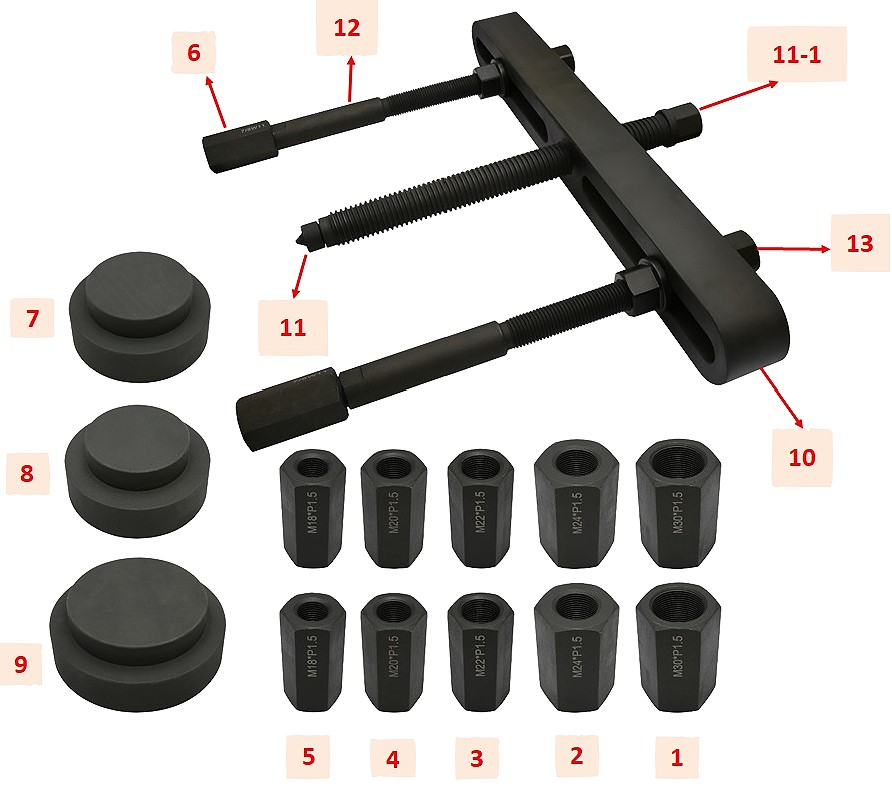

| ITEM NO. | Thread Adaptor Specification | |
|---|---|---|
| 1 | KA‐2088B‐01 / Thread Adaptor | M30 x P1.5 x 2PCS |
| 2 | KA‐2088B‐02 / Thread Adaptor | M24 x P1.5 x 2PCS |
| 3 | KA‐2088B‐03 / Thread Adaptor | M22 x P1.5 x 2PCS |
| 4 | KA‐2088B‐04 / Thread Adaptor | M20 x P1.5 x 2PCS |
| 5 | KA‐2088B‐05 / Thread Adaptor | M18 x P1.5 x 2PCS |
| 6 | KA‐2088BB‐03 / Thread Adaptor | 7/8 W11 x2PCS |
| ITEM NO. | Pressure Plate | |
|---|---|---|
| 7 | KA‐2088B‐06 / Pressure Plate ‐ Small | Ø95mm / 65mm x 40mm x 1PCS |
| 8 | KA‐2088BB‐04 / Pressure Plate ‐ Large | Ø90mm / 62.7mm x 40mm X1PCS |
| 9 | KA‐2088B‐07 / Pressure Plate | Ø110mm / 85mm x 40mm x 1PCS |
| 10 | KA‐2088BB‐01 / BODY (TW30 X 6T) | L518mm x H49mm x W60mm x 1PCS |
| 11 | KA‐2088B‐09 / Central Tip | Ø23mm x 36.6mm / L x 1PCS |
| 11‐1 | KA‐2088B‐10 / Bolt | TW30 x 6T x 349mm / L x 1PCS |
| 12 | KA‐2088BB‐02 / Bolt | M22 x 2.5 & M22 x 1.5 x 340mm / L x 2PCS |
| 13 | KA‐2088B‐11 / Nut | M22 x 2.5 x 4PCS |
