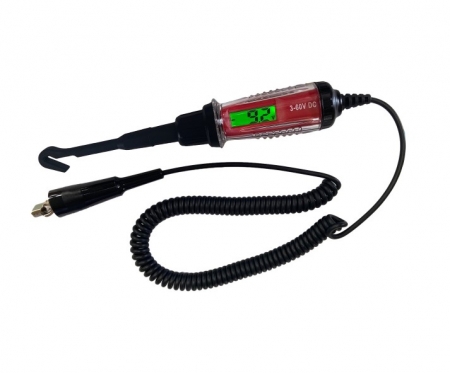

Digital Display Circuit Tester with Wire Hook

KA-5323B
KA-5323B
KA-5323B demo
KA-5323B demo1

Model

KA-5323B

Specification:

  • KA-5323B is a DC voltage tester with smart over-voltage protection and warning for vehicle repair.
  • The electrical system for vehicle becomes more complex, the tester is designed to test voltage value, identify DC polarity from different background light color, positive / negative sign, and over-voltage level indication.

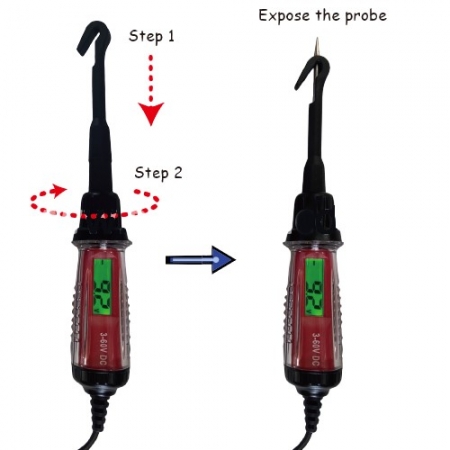

  • The special designed probe let user to hook, piercing, and probing the wires.
ADD INQUIRY
Feature:
  1. Check on 6, 12, 24 and 48V systems.

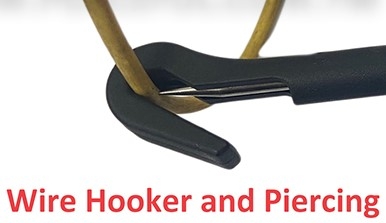

  2. Hook the wire and wire Piercing
  3. DC Voltage Measurement
  4. LCD with Dual Color Polarity indication
  5. AC / DC identification
  6. Data Hold
  7. Low Power Consumption
  8. Computer Safe (Testing Current < 10mA)

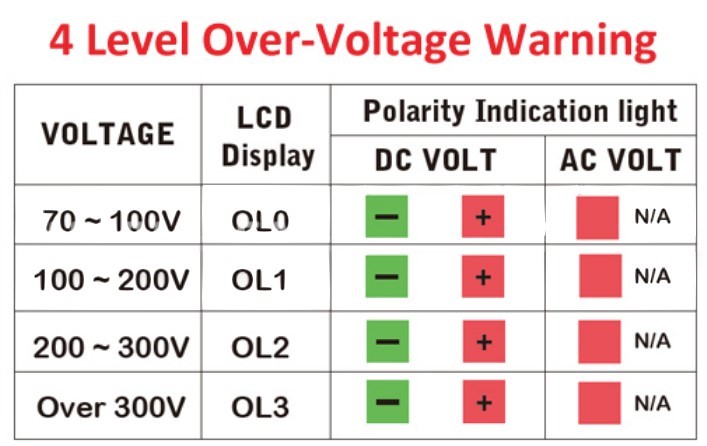

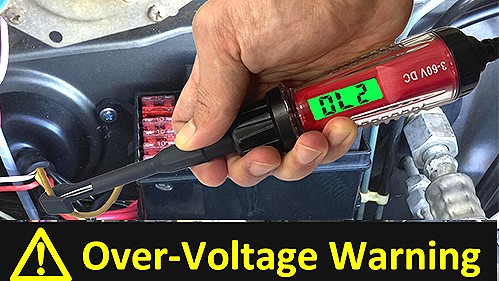

  9. Over-Voltage Protection and Warning for 4 different voltage level
