Quick Splice Connector
Model
KA-9076R , KA-9076B , KA-9076RB , KA-9076Y , KA-9076K32
Specification:
- No Strippers or crimpers required!!
- Easy Wire Splicing of Wire.
- Fast, Simple , Strong Splicing of Electrical Wires.
Application:

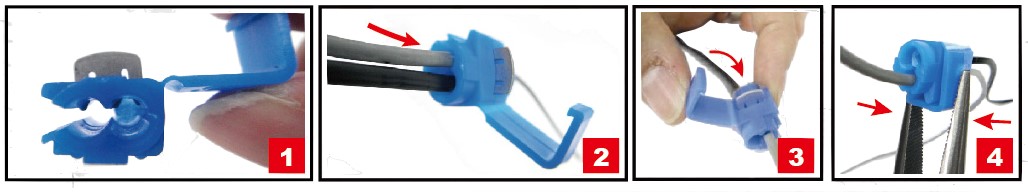

Step 1: Lift the flap
Step 2: insert the wires
Step 3: Close the flap, Blade strip the wires
Step 4: Secure the flap with pliers.
Specification:
|
 |

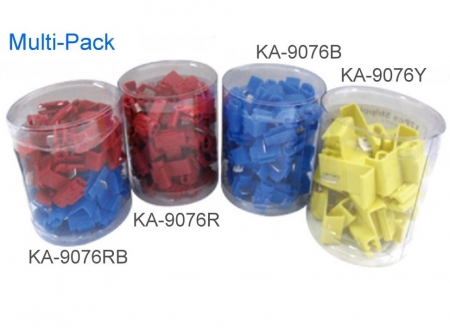

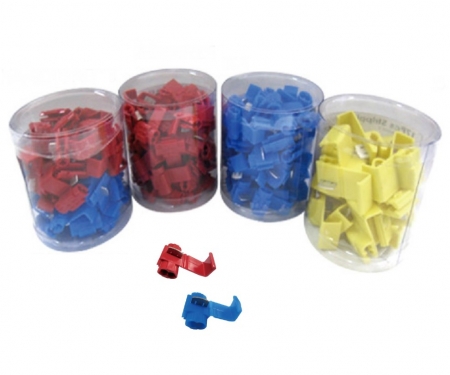

| Item No | Color | Quantity | Packing |
|---|---|---|---|
| KA-9076RB | RED + BLUE | 25 + 25 | PVC Tube |
| KA-9076R | RED | 50 | PVC Tube |
| KA-9076B | BLUE | 50 | PVC Tube |
| KA-9076Y | YELLOW | 17 | PVC Tube |

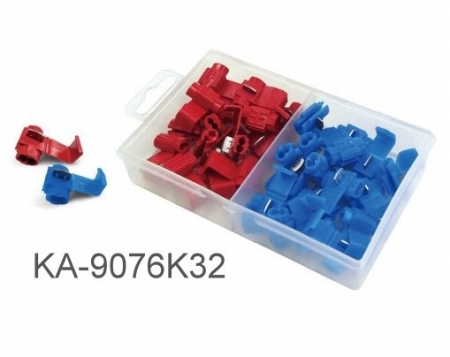

| KA-9076K32 | RED + BLUE | 16 + 16 | PP Box |
Step 1: Lift the flap
Step 2: insert the wires
Step 3: Close the flap, Blade strip the wires
Step 4: Secure the flap with pliers.
Specification:
| No. | Color | Wire Range AWG/mm2 |
Drawing | Dimension (mm)  |
|||
|---|---|---|---|---|---|---|---|
| (1) | RED |  |
AWG 22-18 0.5 – 10.0/mm2 |
 |
B: 0.787” (20.0mm) |
H: 0.315” (8.0mm) |
L: 1.055” (26.8mm) |
| (2) | BLUE |  |
AWG 18-14 1.0 – 2.50/mm2 |
|
B: 0.787” (20.0mm) |
H: 0.315” (8.0mm) |
L: 1.055” (26.8mm) |
| (3) | WHITE |  |
AWG 18-14 1.0 – 2.5/mm2 |
|
B: 0.787” (20.0mm) |
H: 0.315” (8.0mm) |
L: 1.055” (26.8mm) |
| (4) | YELLOW |  |
AWG 12-10 4 – 6/mm2 |
|
B: 0.787” (20.0mm) |
H: 0.433” (11.0mm) |
L: 1.378” (35.0mm) |
