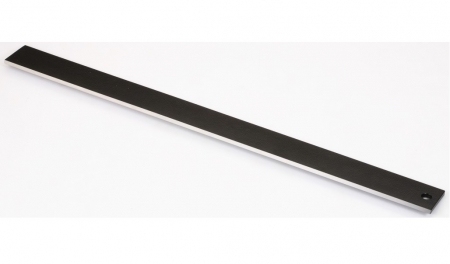

Cylinder Head Surface Rectifier
Model
KA-7368S
Specification:
- Precise test for engine block and cylinder head when reassembling or overhauling an engine.
- Work with a feeler gauge & Suitable for 4- and 6-cylinder engines.
Description
|
|
Operation:

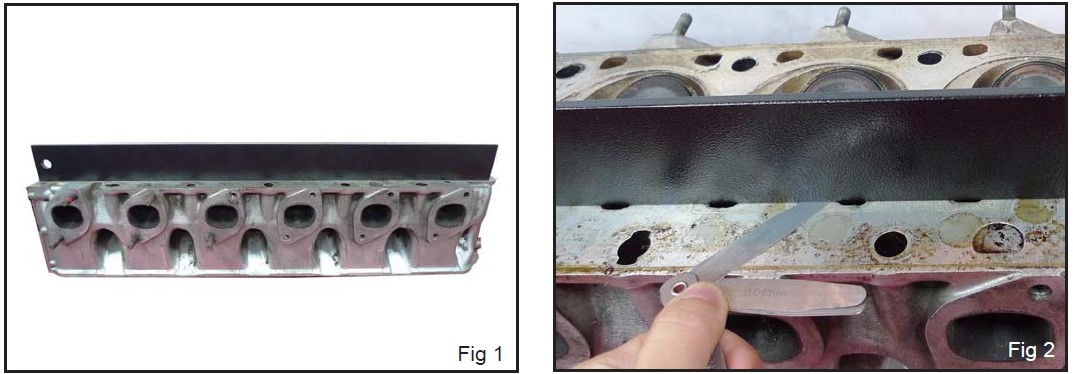

- Place the surface rectifier on the cylinder base (Fig. 1).
- Refer to automotive manufacturer’s service manual for the minimum clearance.
- Slightly tilt the surface rectifier and use a feel gauge with the proper thickness. Insert the gauge into several spots to see if the clearance is acceptable (Fig. 2).
