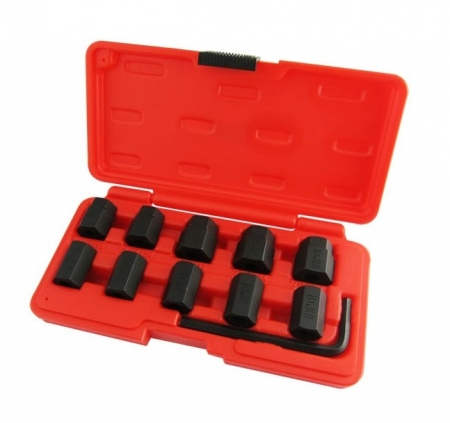

Stud Remover and Installer Set

KA-6981L
KA-6981L

Model

KA-6981L

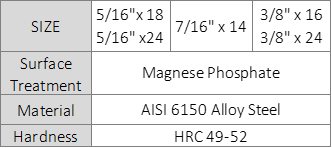

Specification:

  • Removing and installing studs or broken bolts without damaging the threads
  • Special steel ball design facilitates & provides energy-saving way of installing new studs
  • Includes the most common stud sizes in standard sizes (11 pcs, SAE)
ADD INQUIRY


Operation:
Removal
 		 Removal

  1. Screw a suitable-sized remover onto the stud until the upper nut reaches the stud tip.

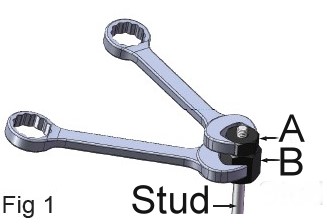

  2. Use two wrenches to tighten part A and B together (Fig. 1).

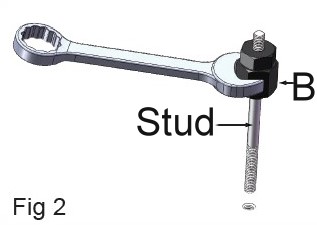

  1. Keep the wrench on part B and turn anti-clockwise until stud is removed (Fig. 2).
Installation
 		 Installation

  1. Screw a new stud into a suitable-sized installer until the stud reaches the steel ball (Fig. 3).
  1. Screw the stud into the stud hole.
  2. When the stud is screwed firmly into the hole. Unscrew the installer by loosening the internal hex nut with an Allen wrench
(Fig. 4)
