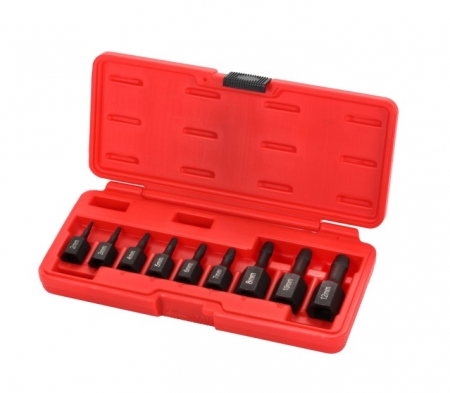

Screw Nut Extractor (9 PCS)
Model
KA-2715P9

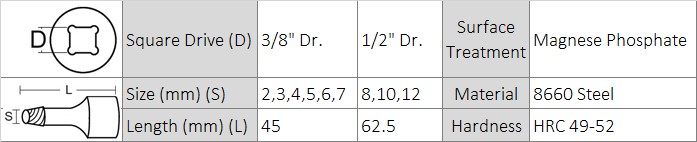

Specification:
- Drill a hole and use this set to remove worn or rusty inner hex bolt.
- Tool with square drive to work with a ratchet wrench for additional torque.
- Size: 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 10mm, 12mm
- Product NOT designed for Air/Impact wrench operation

Operation:
![]() |
![]() |
![]() |
Choose a suitable sized bolt extractor, and drill a hole 0.5mm bigger than the bolt extractor (Fig. 1). |
Remove the drill. Insert the bolt extractor (Fig. 2). |

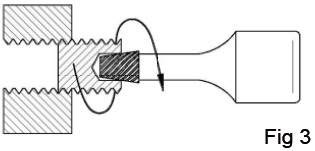

Turn the extractor anti-clockwise to remove the screw/bolt (Fig. 3). |
