Universal Go-Through Ratchet & Quick Swivel T-Handle Set - Tornado Rotation Mechanism

KA-5099K
KA-5099K

Model

KA-5099K

Specification:

  • The universal Go-Through Ratchet can be Converted to Quick-Swivel T-Handle.
  • 360 degree Rotation / Tornado force mechanism saves time and labor.
  • Regardless the protruding thread length through the nuts.
  • Suitable for any application and space, Easy to Use.

Description

  • Simulation Picture for KA-5099K Go-Through Ratchet & Quick Swivel T-Handle Set.
  • When T-bar in inserted to the Go-Through Ratchet, the T-bar becomes a handle.
  • Grip on the blue sleeve, the turn the t-bar with force, the t-bar turn with continuous rotation force to make loosening/tightening effortlessly.
  • Go-Through Handle + Socket is great in working with long thread bolts.
  • Go-Through Handle + Rotating T Bar + Socket+ Bit save labor in Loosening / tightening the screw.

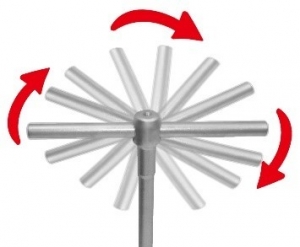

  • The 360 degree rotating T-Bar use the rotation (tornado) force to loosen/tighten the screw.
KA-5099K(demo)KA-5099K(demo 1)

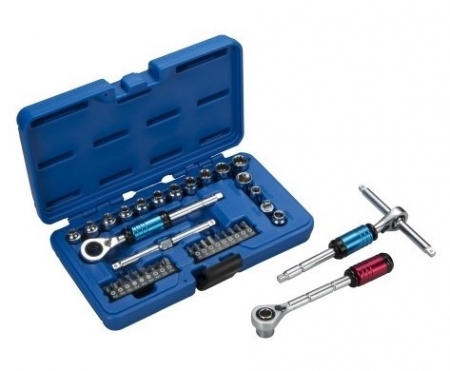

Content:
1pc 1/4” Universal Go-Through Ratchet 165mL
1pc Quick Swivel T-handle H13 x 120mmL
11pcs 1/4” (H:13mm) Go Through Socket:
1pc 1/4” Dr x 13mm Quick Release Adaptor
1pc 1/4” Dr x 13mm Bit Adaptor
1pc M13mm x H13mm Hex Adaptor
1pc 1/4” x 1/4” Bit Adaptor
18pcs 18pcs 1/4” Hex Bit Set
Slotted: SL4, SL5, SL6
Phillips: PH1, PH2, PH3
Pozidriv: PZ1, PZ2, PZ3
Hex: H3, H4, H5, H6
Torx: T10, T15, T20, T25, T30


This kit is multi-functional, great to overcome following situation:

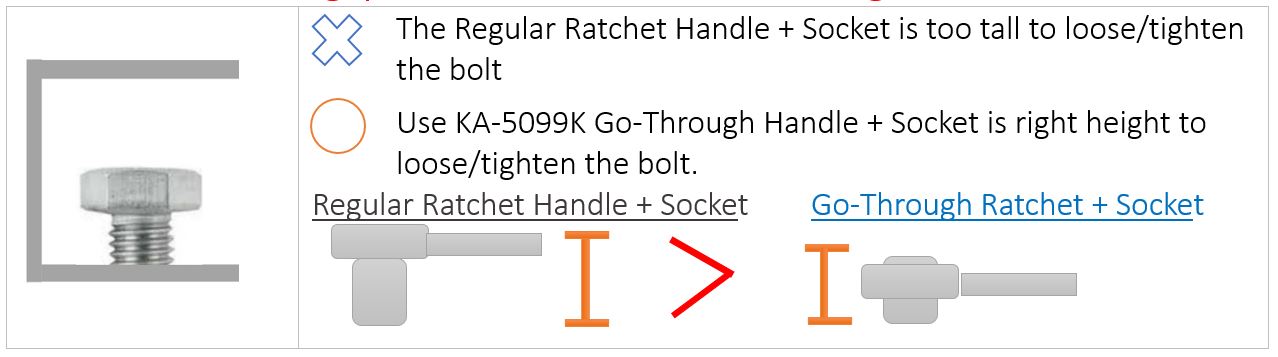

Situation 1:  Working space is too confined and in low-height.

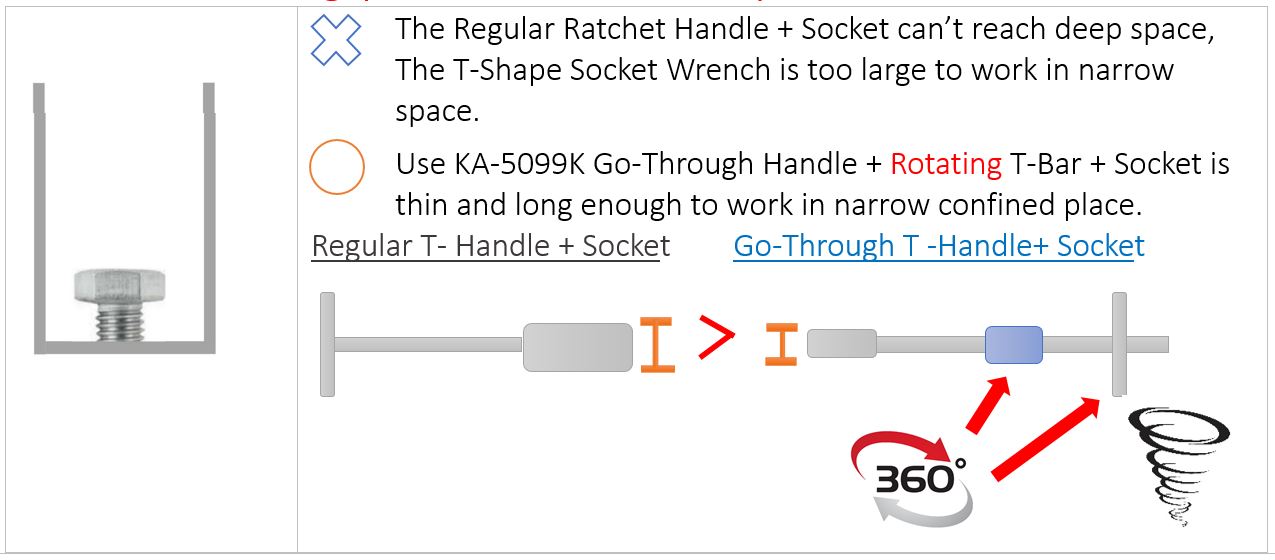

Situation 2:  Working space is too narrow and deep.
