30PCS/SET Solder Sleeve Wire Splices Heat Shrink Tube

KA-9888HCK-SC30(1)
KA-9888HCK-SC30(1)
KA-9888HCK-SP-SINGLE
material

Model

KA-9888HCK-SP30

Specification:

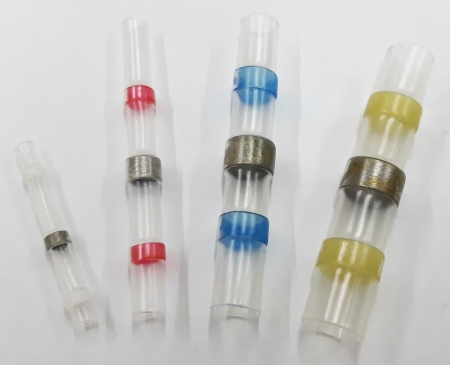

  • [6.2 x 40mm]-Yellow x 4 pcs
  • [4.8 x 40mm]-Blue x 6 pcs
  • [2.8 x 40mm]-Red x 13 pcs
  • [1.8 x 25mm]-White x 7 pcs

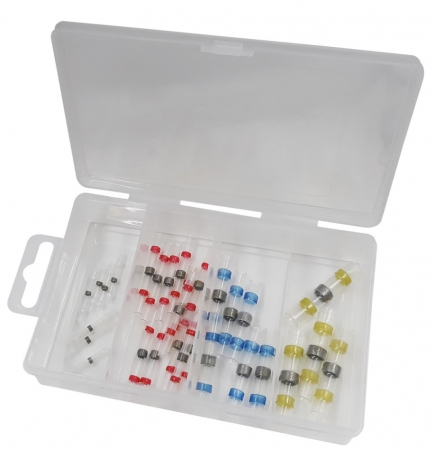

  • Plastic Case Size: 15.1 x 9 x 3 cm (Include Hanger)
ADD INQUIRY

Description

  • Shrinkage ratio: 2:1
  • Waterproof for wiring splices
  • Easy control soldering process
  • Transparent sleeve provides precise inspection
  • Operating temperature:-55℃～105℃
  • Minimum shrink temperature:60˚C
  • Minimum fully recovery temperature:110˚C
  • Starting temperature of solder melt:115˚C
KA-9888HCK-SC30 說明3




What are Solder Splice Connectors?

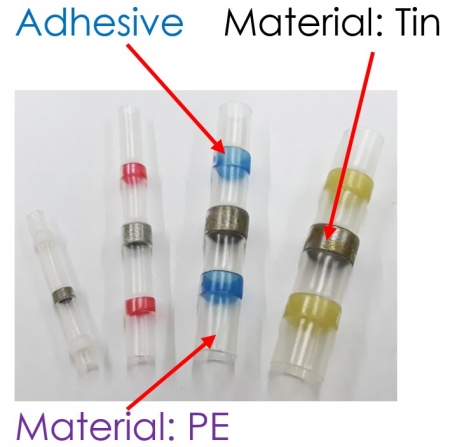

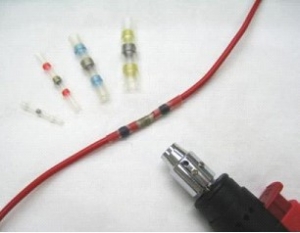

A waterproof seal is created easily by placing stripped wires into the solder sleeve and applying heat. Dual-walled heat shrink tubing with hot-melt adhesive prevents wire corrosion, and you will never have to worry about water damage.

For easy identification, the connectors are color-coded along with a handy wire size chart located on the box. Connectors comply with ROHS standards.

Solder seal wire connectors work excellently in limited-space areas, as solder and seal electrical terminals do not need crimping.
