Breakback Torque Wrench – Industrial Grade

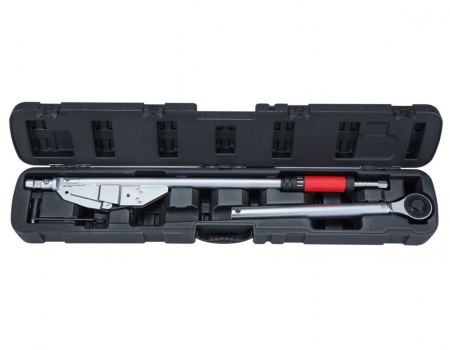

KA-4533-1F PACK
KA-4533-1F PACK

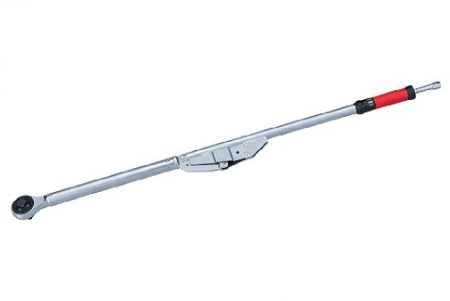

KA-4533-1FN 2FN 3FN

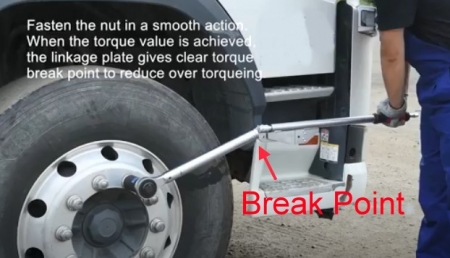

KA-4533-1F BREAK POINT

Model

KA-4533-1F / KA-4533-2F / KA-4533-3F KA-4533-1FN / KA-4533-2FN / KA-4533-3FN

Specification:

  • For HGV / Heavy Duty Vehicles
  • Unique “Breakback” action prevent the “over-toque”
ADD INQUIRY

Description

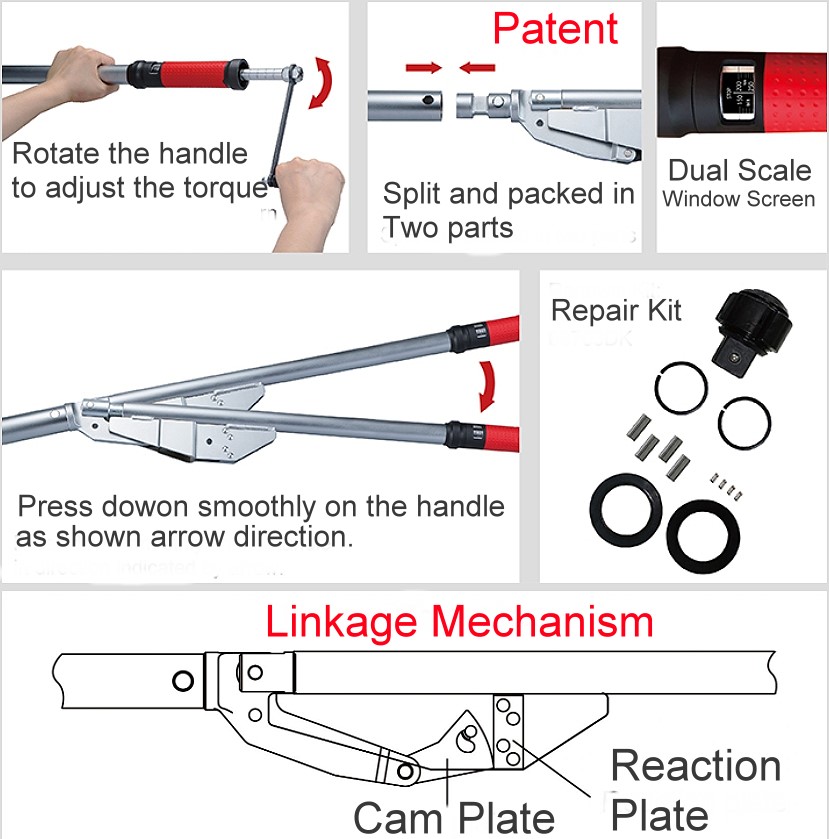

  • An Unique Breakback (Break Point) action/signal of profiled cam plate and reaction plate, providing a clearer torque break point.
  • Excellent for using in “Noisy” environment, where the operator would likely to miss the click sound when reaching the desired torque. But with Breakback Torque Wrench, it would give operator a clear visual of breakback (break point) action.
  • The Breakback (Break Point) action can not only be seen by the user, but also the supervisor or onlooker.
  • ** Not recommended to "Loosen" the bolt to prevent damage of the torque wrench mechanism.
Item No. Square Drive Teeth Nm/Ft-lb Graduation Weight (g) Length (mm)
KA-4533-1F 3/4" 36T 120-600 / 100-450 10 6600 1060
KA-4533-2F 3/4" 37T 200-800 / 150-600 10 7900 1320
KA-4533-3F 3/4" 38T 300-1000 / 200-750 20 8060 1550
KA-4533-1FN 1" 39T 120-600 / 100-450 10 6600 1060
KA-4533-2FN 2" 40T 200-800 / 150-600 10 7900 1320
KA-4533-3FN 3" 41T 300-1000 / 200-750 20 8060 1550

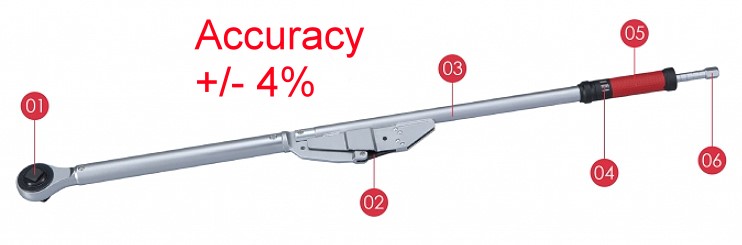

① Round head: A highly robust ratchet mechanism with inner 4 pawls mechanism design to bear large output value, without plate and screws to avoid loosing while operation. Push-through square drive
② Reliable mechanism: The unique linking plate and support plate design gives very clear "torque break point", which reduces the possibility of over torqueing, even in arduous working conditions.
③ Serial number: Each piece stamping serial number for track the production
④ Scales: Window Screen. Dual scale. Easy readable for two different units.
⑤ NBR handle: Ergonomic shape with non-slip and comfortable features.
⑥ Adjustment system: Apply revolving handle to turn nut for torque adjustment



** Warning: Not recommended to "Loosen" the bolt to prevent damage of the torque wrench mechanism **
