Industrial Torque Screwdriver (w/Quick Release Bit Holder)

KA-4164HD 66HD
KA-4164HD 66HD

Model

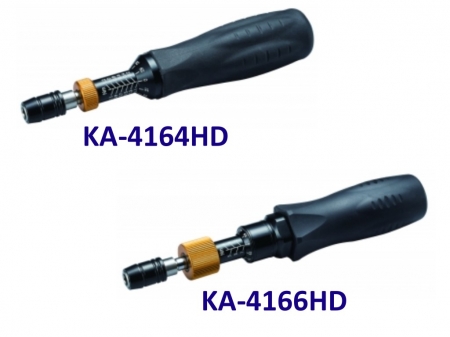

KA-4164HD / KA-4166HD

Specification:

  • Tolerance of torque ±6%.
  • 6.3mm (1/4") Hex drive for bit.

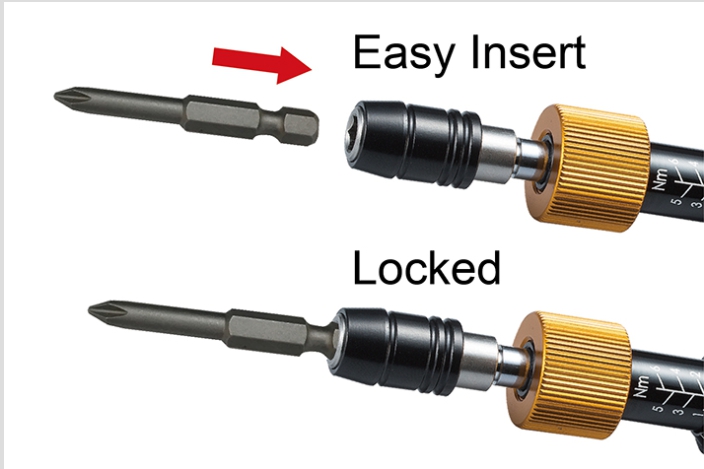

  • Bit holder with locking sleeve and quick-release device.
  • A spring-loaded sleeve locks the bit securely in the place.

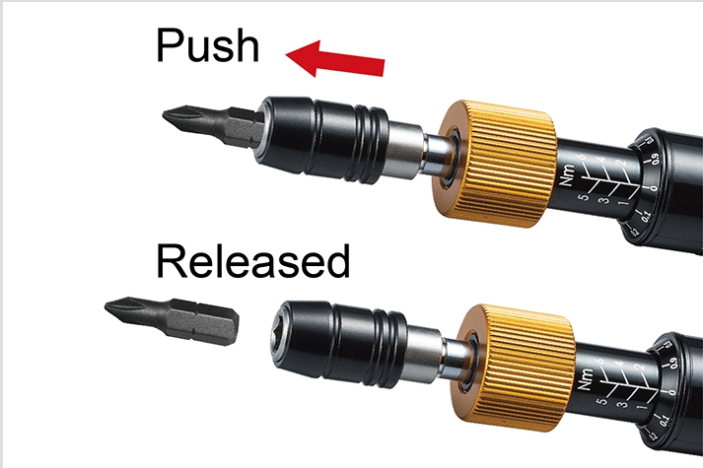

  • Simply push the quick-release shank to change the bit.
  • Slipping clutch mechanism of the product brings the benefit of overload protection.

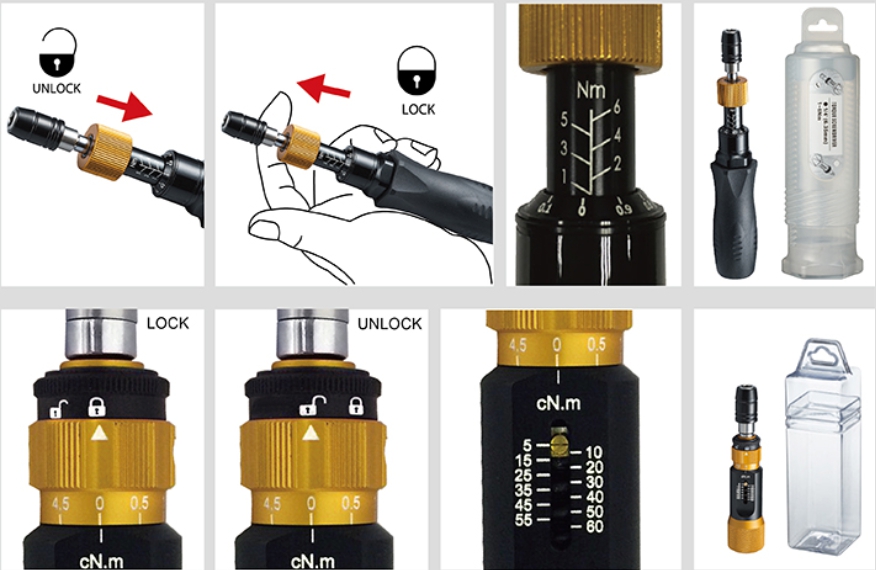

  • Torque setting by twisting the golden adjustment knob.
  • Easy-to-read laser scale.
  • Applied to both clockwise and counterclockwise.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
ADD INQUIRY

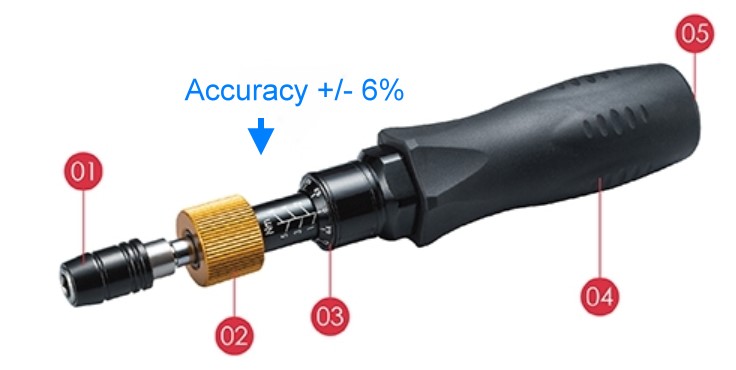

  1. Head: 6.3mm (1/4") Hex drive for bit, Square drive for socket.
  2. Reliable mechanism: Press the locking knob when adjusting the torque, release and automatic lock at desire torque. The slipping clutch mechanism to prevent the over tightening.
  3. Scales: Easy read laser scales is flexible for multi units and double scales for different market need.
  4. NBR handle: Ergonomic shape with non-slip and comfortable features.
  5. End cap: Standard or customized poly design cap





ITEM NO. Hex 6.3mm Nm(cNm) Graduation L(mm) g Case/CTN
KA-4164HD-01   10-120 1 190 247 24
KA-4164HD-01N 30-120 1 190 247 24

ITEM NO. Hex 6.3mm In-lb Graduation L(mm) g Case/CTN
KA-4164HD-13 0.5-4 0.05 190 247 24
KA-4164HD-14 2-12 0.1 190 247 24
KA-4164HD-11 3-15 0.1 190 247 24
KA-4166HD-22 5-25 0.5 205 350 24
KA-4166HD-23 10-50 1 205 350 24
KA-4166HD-24 10-90 2 205 350 24

ITEM NO. Hex 6.3mm Nm Graduation L(mm) g Case/CTN
KA-4164HD-02 0.1-1.2 0.01 190 247 24
KA-4164HD-17 0.4-2.6 0.02 190 247 24
KA-4166HD-04 1-3.5 0.05 205 350 24
KA-4166HD-02 1-6 0.1 205 350 24
KA-4166HD-02N 1.5-6.5 0.1 205 350 24
KA-4166HD-03 4-9 0.1 205 350 24

ITEM NO. Hex 6.3mm Nm/In-lb Graduation L(mm) g Case/CTN
KA-4164HD-04 0.1-1.2/1.33-10.18 0.01 190 247 24
KA-4166HD-14 1-3.5/11.03-28.77 0.05 205 350 24
KA-4166HD-12 1-6/13.28-48.68 0.1 205 350 24
KA-4166HD-13 4-9/39.83-75.23 0.1 205 350 24
KA-4166HD-15 5-10/48.68-84.08 0.1 205 350 24

ITEM NO. Hex 6.3mm In-lb/Nm Graduation L(mm) g Case/CTN
KA-4164HD-12 3-15/0.39-1.64 0.1 190 247 24
