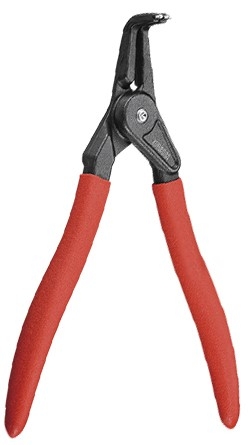

Circlip Pliers – External

KA-7000EX
KA-7000EX

Model

KA-7000EX-5B / KA-7000EX-7B / KA-7000EX-9B

Specification:

  • Available: 5”, 7”, 9”.
  • Fitting retaining ring onto shaft or into bores.
  • Inserting bearing steel spikes/pin for heavy duty applications.
  • Non-slip spike/pin enables the ring to stick firmly to the spikes when compressing or expanding.
  • Extendable handle for better handling.
  • Material: Tip – SUJ2/ Body- Carton Steel.
ADD INQUIRY
Item no. Length Weight Capacity Bent Angle ∅Max Handle
KA-7000EX-5B 5"(130mm) 90g 8-13MM 90 TIP DIA = 0.9 or 1.3 PVC Dip.
KA-7000EX-7B 7"(170mm) 175g 19-60mm 90 TIP DIA = 1.8 PVC Dip.
KA-7000EX-9B 9"(215mm) 290g 40-100mm 90 TIP DIA = 2.3 PVC Dip.
