Leaking Current Meter for Car

KA-1080
KA-1080
KA-1080 (1)

Model

KA-1080

Specification:

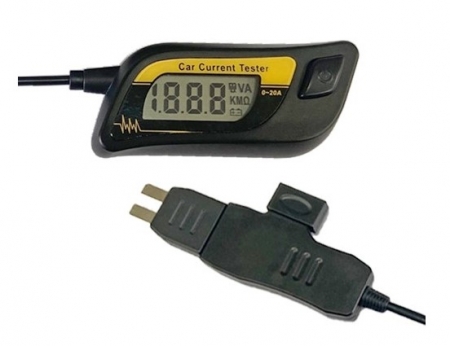

  • This is a stable, low power consumption, and high accuracy 3-1/2 digits (2000 counts) leaking current meter for automobile.
  • Leaking current for automobile is generally as small as milliamps, which is hard to measure by clamp meter.
  • By plug this meter with the fuse box, user is able to measure leaking current as small as 1 mA.

Description

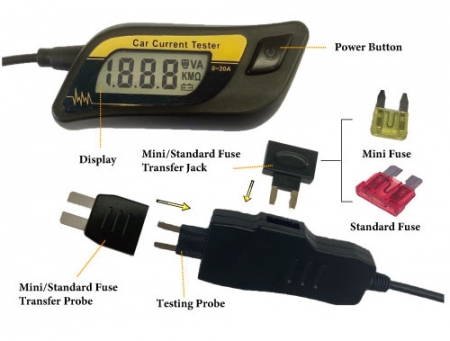

  • Display: 2000 counts; 3 1/2 digits LCD
  • Use for 2 Blade types of FUSE(Standard/Mini)
  • Refresh Rate: 3 times per seconds
  • Low Voltage Indication
  • Power: 1.5V AAA Battery x 2 (3V)
  • Maximum current Measured: 20A
Auto Range Accuracy Resolution
1999mA ±0.5% ±2 digits 1mA
20A ±0.5% ±2 digits 10mA
