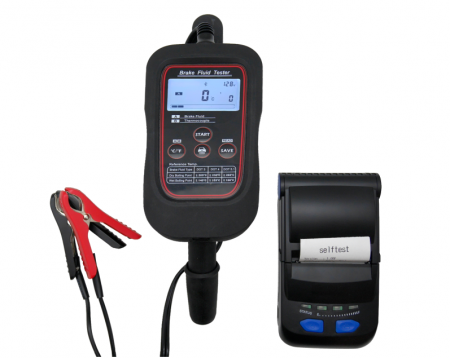

Boiling Point Brake fluid Meter with Printer (Bluetooth Compatible)
Model
KA-1071K
Specification:
- Obtain the Wet Boiling Temperature of the Brake Fluid for Technician Reference.
- Date Reference to determine if Brake Fluid Change is needed.
- Equipped with Bluetooth Capable Printer.
Description
|
|
ABOUT BOILING POINT
Instructions:
| BOILING POINT TYPE | DOT 3 | DOT 4 | DOT 5.1 |
|---|---|---|---|
| DRY BOILING POINT | ≧205℃ | ≧230℃ | ≧260℃ |
| WET BOILING POINT | 140℃ | 155℃ | 180℃ |
Instructions:
- Suggest battery voltage between 12-13V.
- Both “Brake fluid cycle paths” must be immersed into the brake fluid.
- Please keep the Brake Fluid Testing Probe perpendicular with the brake fluid during the test.
- If “Wait Cool” appears on the LCD, please wait for the heating wire to cool down before next test.

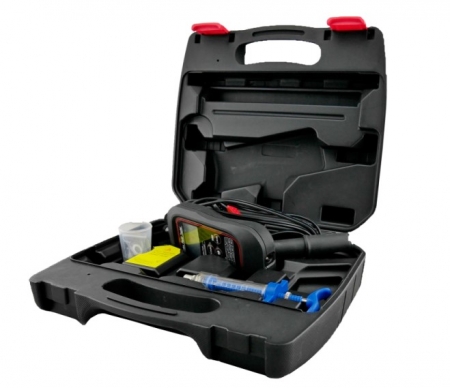

- User can use the “Brake fluid sucker” to draw some brake fluid into the measuring cup for testing.
- Make sure power clips are connected tightly with correct polarity before any measurement.
- After the testing, please wait at least 3 seconds for heating wire to cool down before take testing probe out of the brake fluid.
- Avoid the shaking and smashing of the testing probe, especially after the test.
- User can print the testing data by Bluetooth printer.
