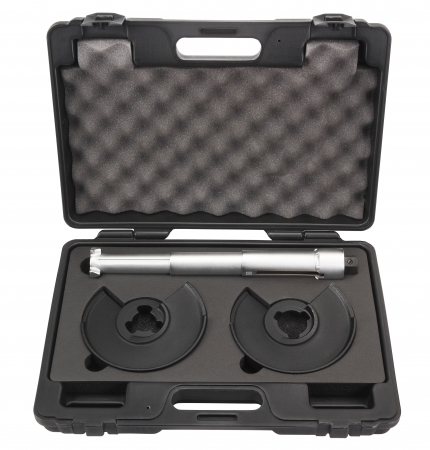

Internal Coil Spring Compressor

KA-7860
KA-7860
KA-7860(special pin)

Model

KA-7860

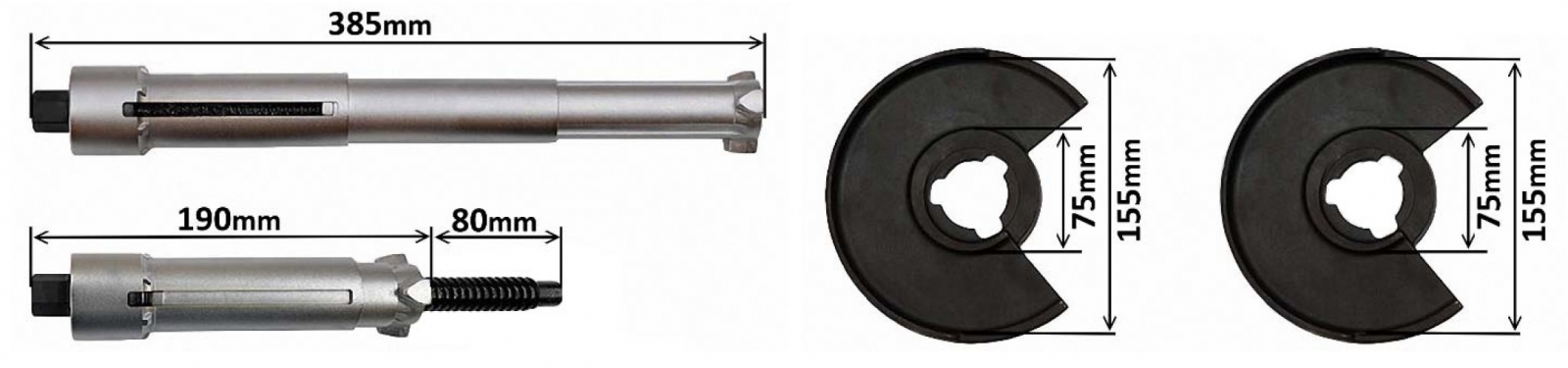

Specification:

  • Applied to big coil springs, For spring diameter Ø75-155mm
  • Suitable for coil springs with internal diameter > Ø75mm and external diameter < Ø155mm.
  • Special pins on tool body to mesh with grooves on discs to create a secure connection.
  • Can be operated with an air/impact wrench.
  • Provided with product liability insurance.
  • Break point: 12,900 kgf (ca.126,505N)
  • Max load: 6,525 kgf (ca. 64,000N)

Description

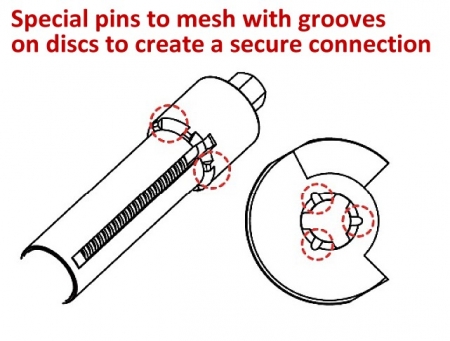

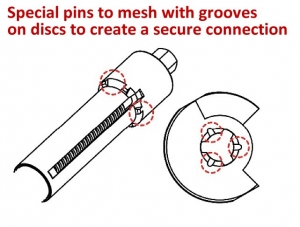

  • Special pins on tool body to mesh with grooves on discs to create a secure connection.
KA-7860(special pin)

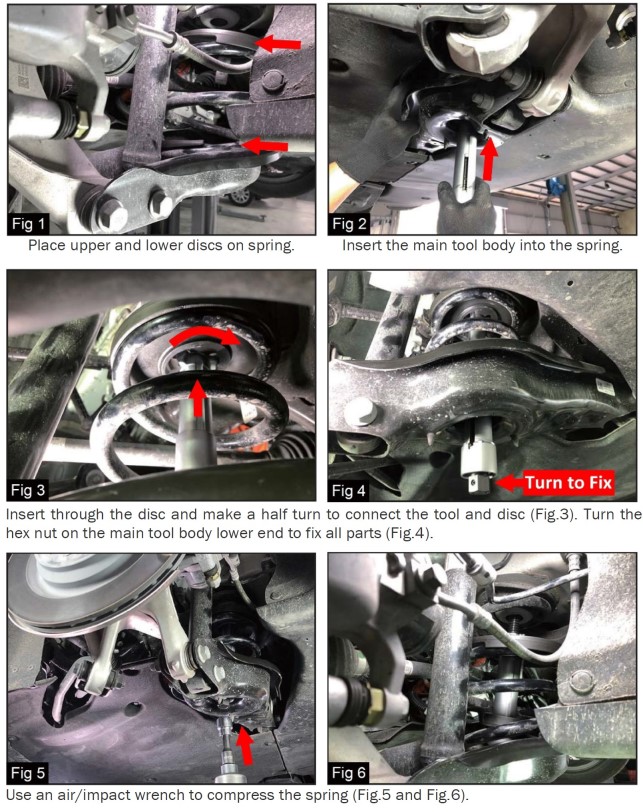

Instruction:


Application:
Alfa Romeo Giulietta 2010-2020
Audi A4 2001-2015
Audi A6 2004-2011
BMW 3 Series E46 1997-2007
BMW X6 E71 2007-2014
Chevrolet Cruze 2009-2020
Citroen Berlingo 2008-2020
Fiat Doblo 2010-2020
Ford B-Max 2012-2020
Ford Galaxy 2006-2020
Hyundai Santa Fe 2001-2006
Mercedes A-Class W176 2012-2019
Nissan Murano 2007-2014
Opel Combo 2012-2020
Peugeot Expert 1996-2006
Renault Modus 2005-2020
Tesla Model 3 2017-2020
Volvo XC70 2007-2020
