50W Heat Shrinking Tool Set

KA-9888HCK SET
KA-9888HCK SET
KA-9888HCK SLEEVE
KA-9888HCK TIP + CAP(1)
KA-9888HCK YELLOW SLEEVE(1)
KA-9888H12

Model

KA-9888HCK

Specification:

  • A multi-application Heat Shrink tool kit with " Heat Shield Cap ".
  • Excellent with Solder Sleeve Splice Connector, Heat Shrink Tubing/Sleeves.

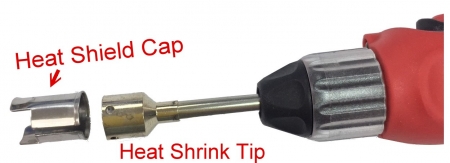

  • * Heat Shrink Tip for Heat Shrink Tubing/Sleeve.

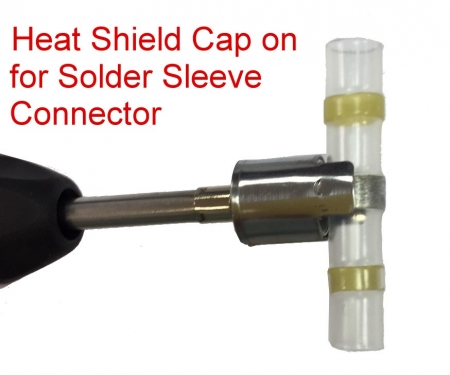

  • * Heat Shrink Tip + Heat Shield Cap for Solder Sleeve Splice Connector.
  • Heating time: 12 second.
  • Takes only 1 minute to complete shrinking and soldering large solder splice connect (dia: 6.2mm).
  • Connecting Wires-to-Wire, Cable-to-Cable splicing/interconnection, Installing Terminal without Crimping!!
  • Shield Terminals, provide insulation, protection and prevent corrosion.
  • Application: Electrician, Auto Repair, Boat Repair, Aviation, Cycle, and many many applications.
ADD INQUIRY

Description

  • Simple Steps:
  • 1. Place the exposed ends of the wires overlap each other.
  • 2. Position the solder of the solder sleeve at the center.
  • 3. Heat the Solder Sleeve with our Heat Shrink Tool.
KA-9888HCK DEMO5KA-9888HCK DEMO4
Content QTY
KA-9888H16 Heat Shrink Tip   1

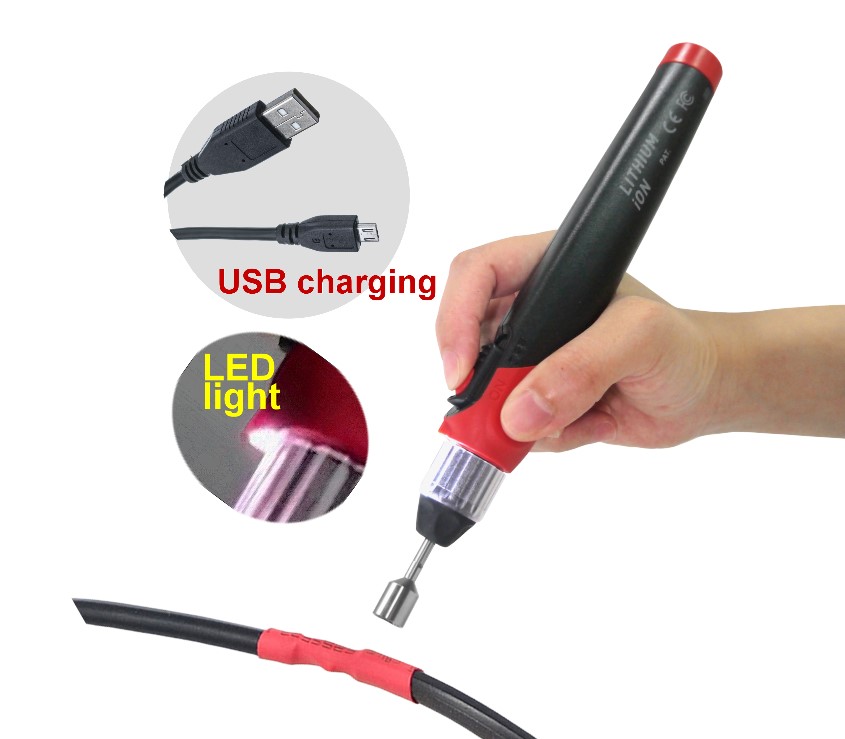

USB charging cord   1
Safety stand   1

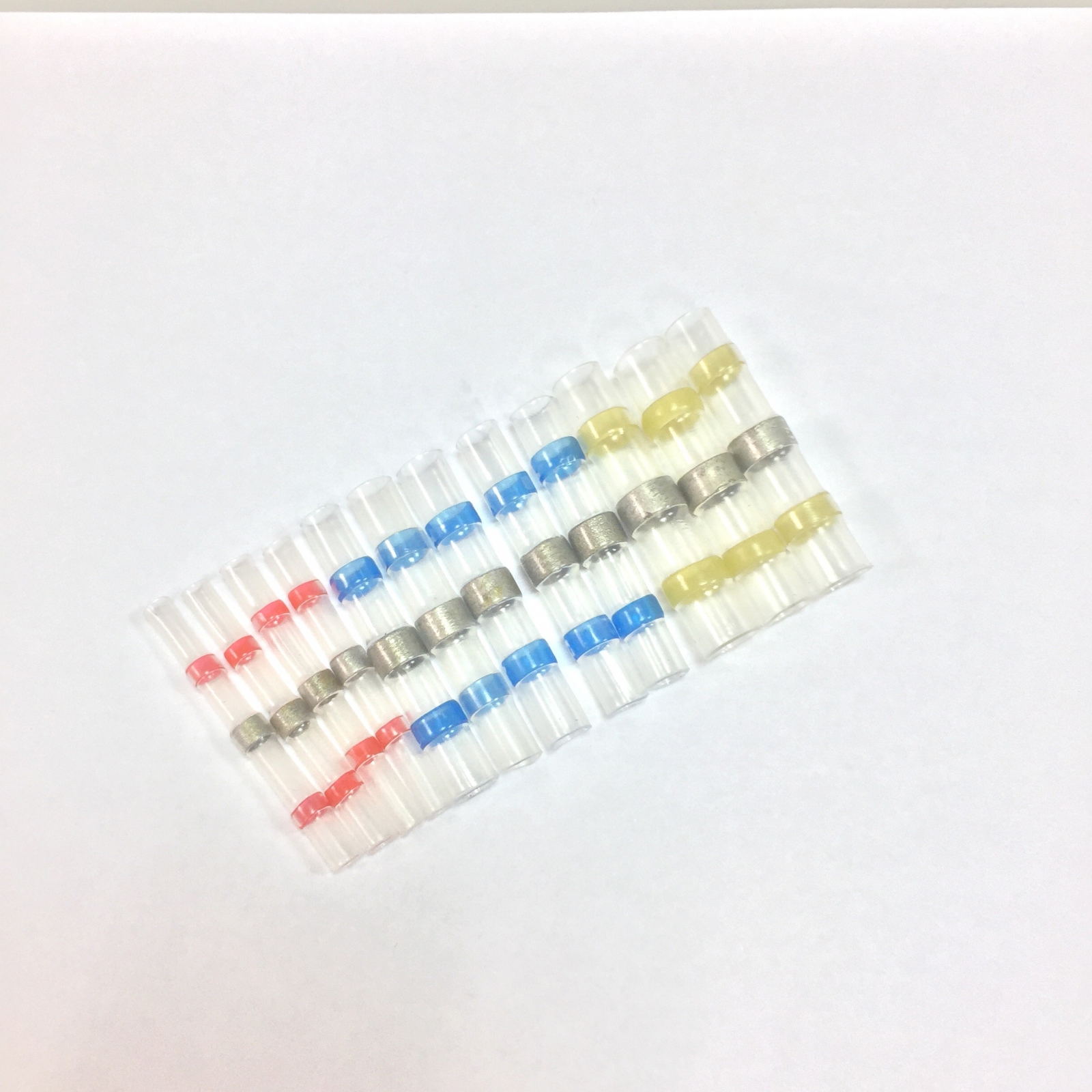

Yellow solder splice connector,
diameter 6.2mm (Shrink Ratio 2:1)		   3
Red solder splice connector,
diameter 2.8mm (Shrink Ratio 2:1)		   4
Blue solder splice connector,
diameter 4.8mm (Shrink Ratio 2:1)		   5
diameter 7mm, heat shrinking tube  10
diameter 4.5mm heat shrinking tube  20
diameter 3.5mm heat shrinking tube  25
diameter 2.5mm heat shrinking tube  35
